Description
Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots
What This Product Does.

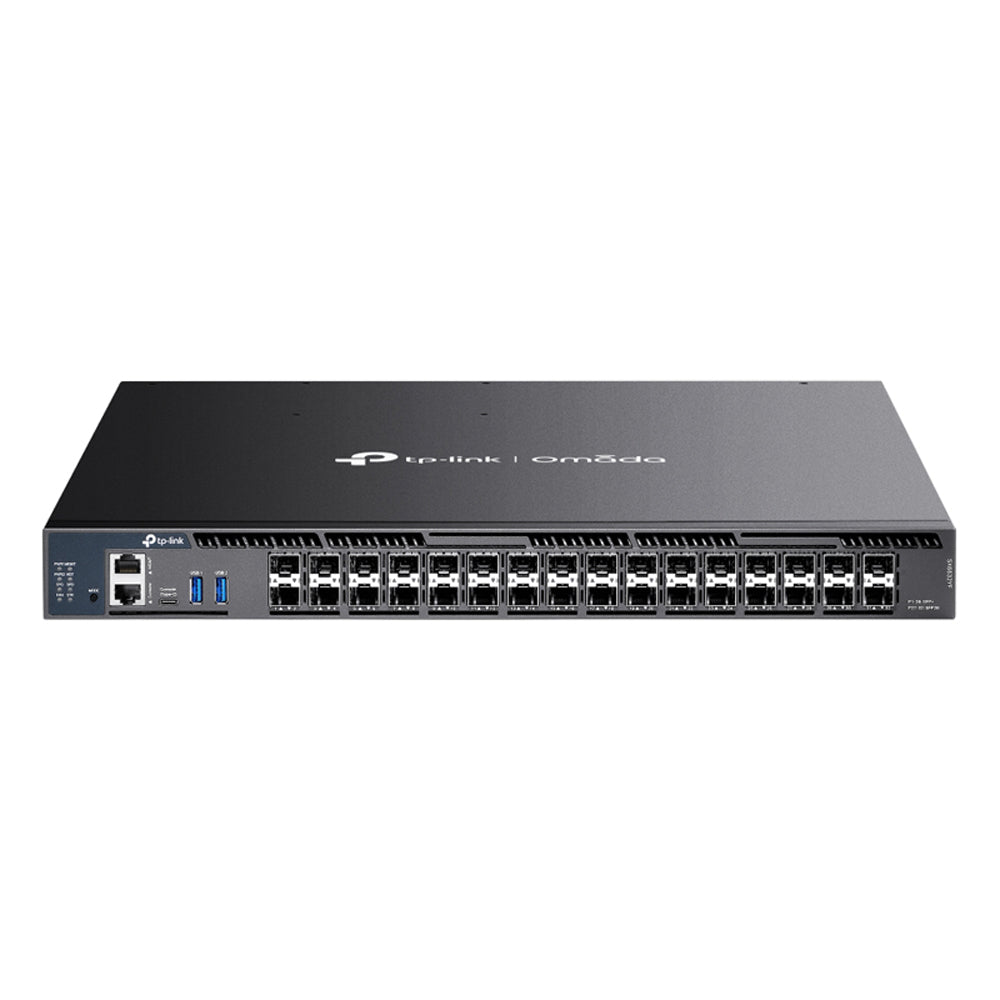

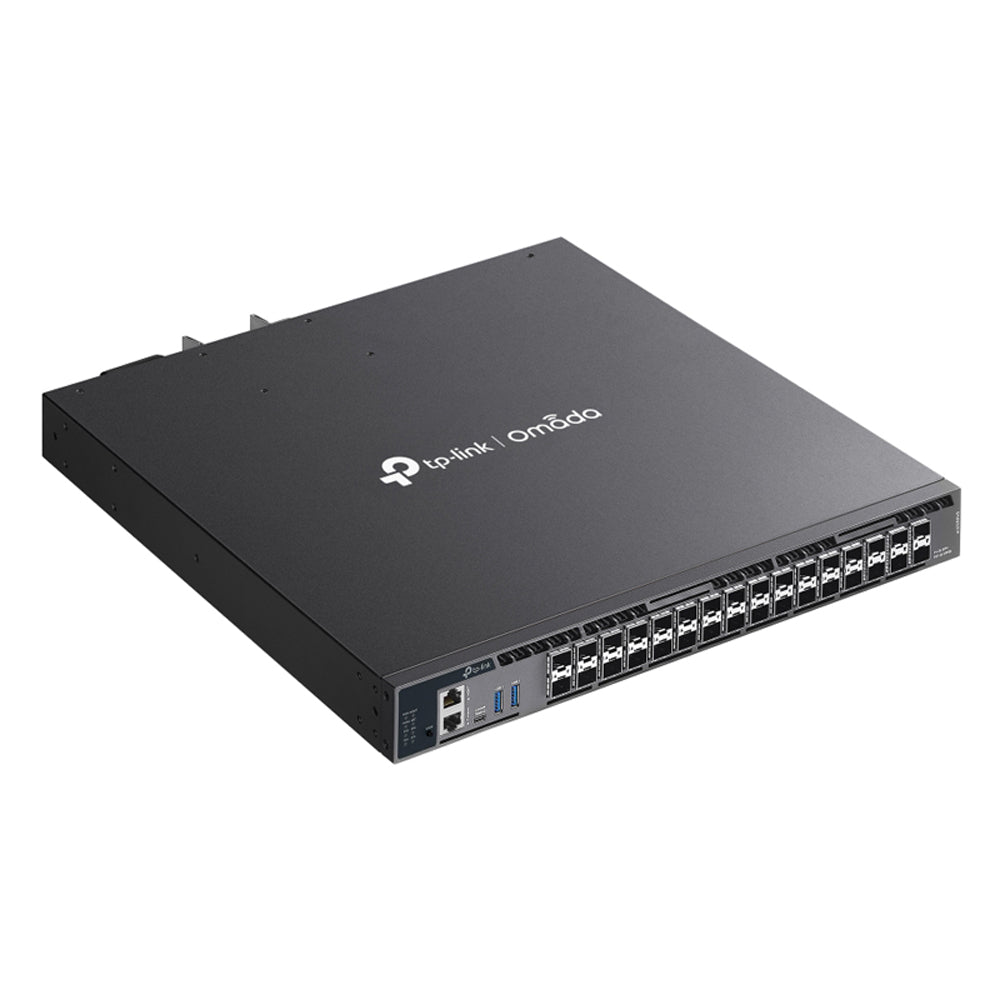

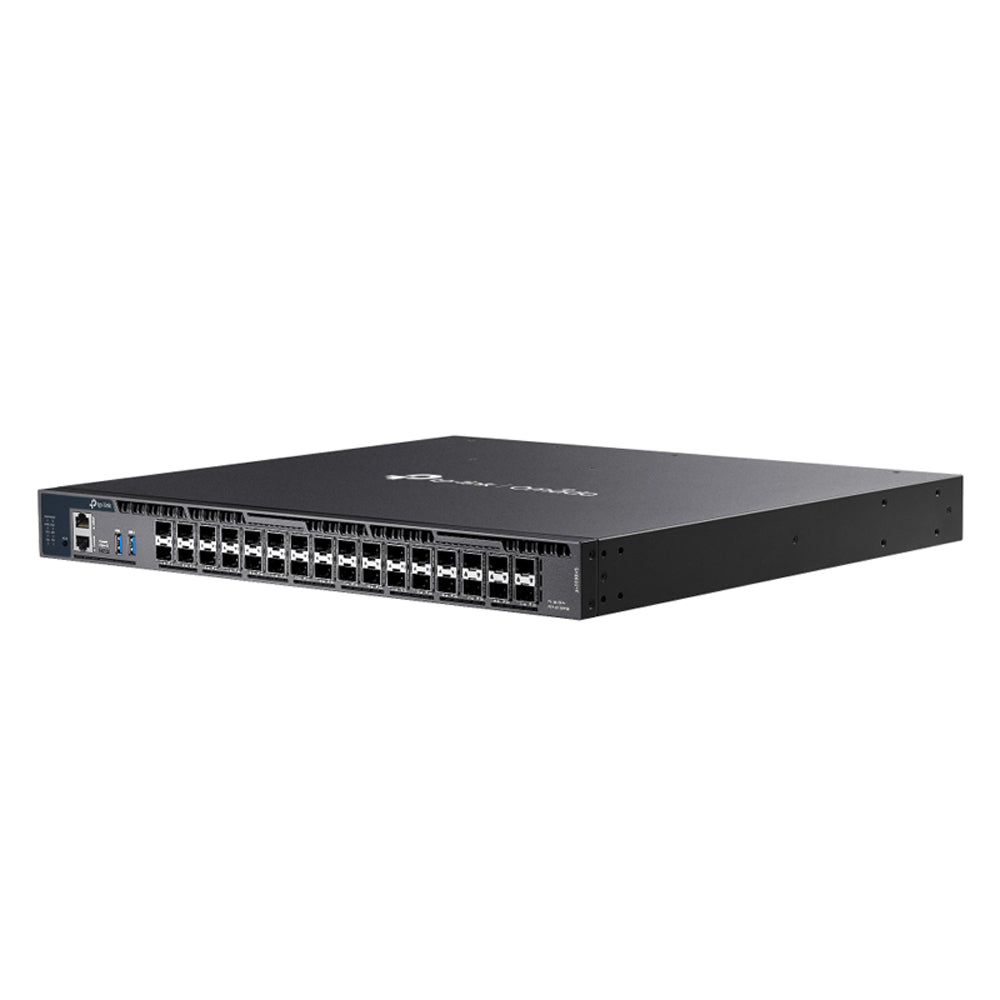

The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
High-speed Connectivity and Powerful Stacking
6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM and PIM-SM multicast routing protocol guarantees efficient routing for multicast groups.
Features
- 26× 10G SFP+ slots and 6× 25G SFP28 slots
- 820 Gbps switching capacity
- Physical Stacking up to 8 units for built-in redundancy and performance**
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies*, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Specifications
| HARDWARE FEATURES |
||
|---|---|---|
| Interface | • 6× 10/25G SFP28 Slots • 26× 1/10G SFP+ Slots • 2× USB 3.0 Ports • 1× RJ45 Console Port • 1× USB Type C Console Port • 1× RJ45 Management Port |
|

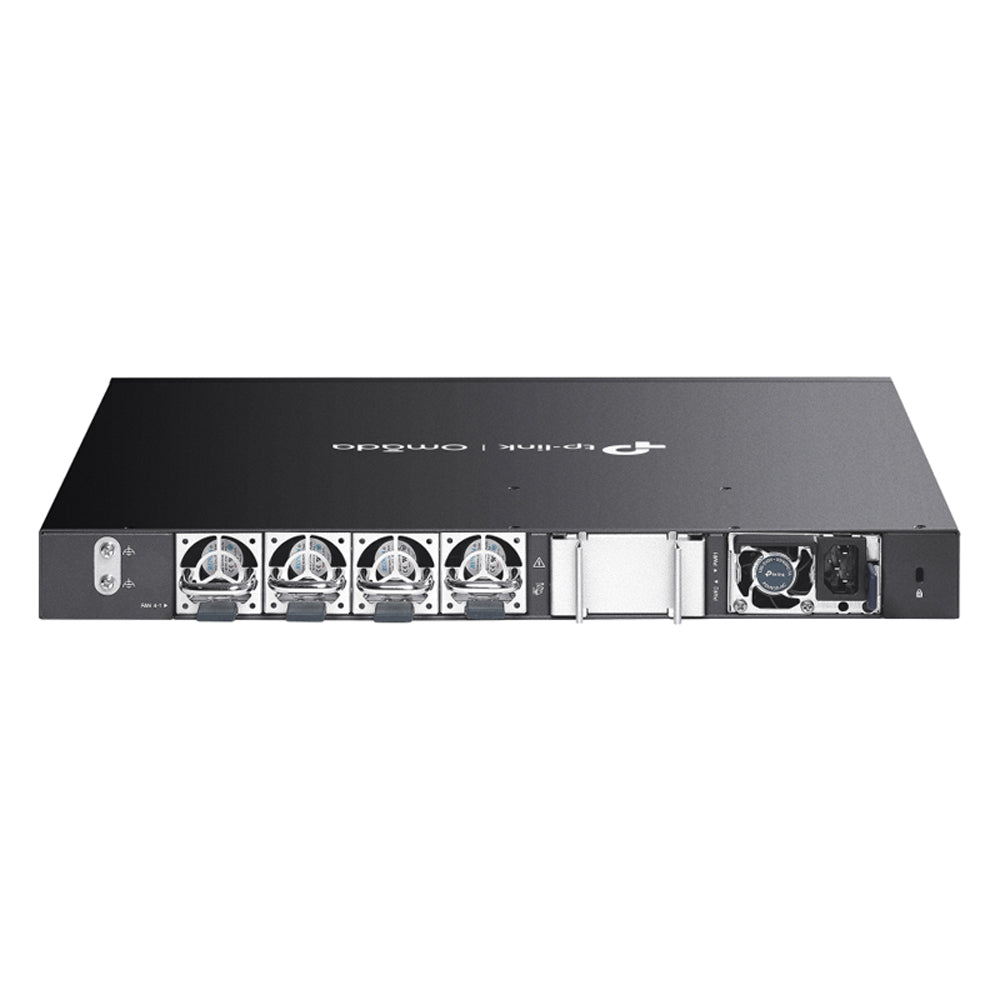

| Fan Quantity | Four field-replaceable and hot-swappable fans (N+1 redundant) | |
| Physical Security Lock | √ | |
| Power Supply | Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz) *Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase. |
|
| Dimensions (W x D x H) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) | |
| Mounting | Rack Mountable | |
| Power Consumption | 86.7 W (110 V/60 Hz) | |
| Max Heat Dissipation | 295.85 BTU/hr (110 V/60 Hz) | |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 820 Gbps |
| Packet Forwarding Rate | 610.1 Mpps |
| MAC Address Table | 128 K |
| Packet Buffer Memory | 8 MB |
| Jumbo Frame | 9 KB |
| GENERAL |
|
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents |
• SX6632YF Switch |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
|
What's In The Box
- SX6632YF Switch
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
