Pre-terminated 12 Strand SMF-28® Ultra Single Mode Plenum OFNP Fiber Optic Cable, Indoor/Outdoor, 540FT
Pre-terminated 12 Strand SMF-28® Ultra Single Mode Plenum OFNP Fiber Optic Cable, Indoor/Outdoor, 540FT
BY Primus Cable
SKU: SKU: SP-Misc-Custom-Build FB3
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details |
Overstock. Packaging may vary. Condition is new. |
(We do not offer credits or returns for this item, it is sold as is.)
Description

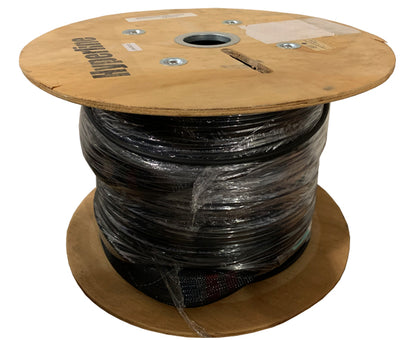

SMF-28® Ultra Single Mode Indoor/Outdoor Plenum Bend Insensitive Fiber Optic Cable, 540FT Spool
The SMF-28® Ultra single mode fiber optic cable features industry leading attenuation characteristics and superior macrobend performance. With the benefit of mode field diameter (MFD) backward compatibility, this OFNP plenum fiber can be deployed in high density environments.

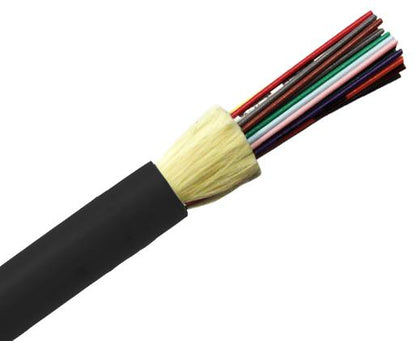

This plenum distribution fiber cable is composed of 12 colored tight buffers, aramid yarn, and a PVC outer jacket. Tighter construction allows for low space occupancy for high density installations. Reduce installation time by minimizing rework due to signal loss.
The OFNP plenum distribution fiber cable is available in 12 TIA standard colors or special order colors. The fiber cable is UL Listed OFNP FT6 for use in vertical runs in building riser shafts or from floor to floor. Standard surface print denotes construction, NEC rating, and fiber type, and includes footage markers.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
- 900μm tight buffers, 18" break out
- Terminated with LC/UPC connectors at both ends
- Pulling eyes at both ends
- Bend Insensitive Fiber, lower loss at longer wavelengths
- OFNP FT6 rated construction
- Jacket print ensures product identification and fiber compatibility
- Durable jacket offers added protection during installation and in rugged use applications
Applications
- Rated for Indoor/Outdoor applications
- Trunk cable between floors and inside plenum spaces
- Data centers
- FTTH, mobile, access, metro, regional, and long haul networks
Specifications
| TEMPERATURE RANGE | |
|---|---|
| Storage Temperature | -60ºC to +85ºC |
| Operating Temperature | -60ºC to +85ºC |
| CABLE CHARACTERISTICS | |
| Fiber Count | 12 |
| Outer Jacket Material | Flame Retardant PVC |
| Outer Jacket Color | Black |
| Strength Member | Aramid Yarn |
| Tight Buffer Material | Flame Retardant PVC |
| Tight Buffer Color | Available in 12 TIA/EIA Color Standards |
| MECHANICAL CHARACTERISTICS | |
| Coating Diameter | 242 ± 5 μm |
| Cladding Diameter | 125 ± 0.7 μm |
| OPTICAL CHARACTERISTICS | |
| Core Size | 8.2 μm |
| Wavelength | (1310 / 1550) nm |
| Max. Attenuation | 0.03 dB/km at 1285–1330 nm range |
Additional Information
Single Mode Fiber Information
Single mode fiber cable (Synonyms mono-mode optical fiber, single-mode fiber, single-mode optical waveguide, uni-mode fiber) is a single strand of glass fiber with a diameter of 8.3 to 10 microns that has one mode of transmission. Single mode fiber has a relatively narrow diameter, through which only one mode will propagate typically 1310 or 1550nm wavelengths. Single mode fibers carry higher bandwidth than multimode fiber, but require a light source with a narrow spectral width.
Single-mode fiber gives you a higher transmission rate and up to 50 times more distance than multimode. The small core and single light-wave virtually eliminate any distortion that could result from overlapping light pulses, providing the least signal attenuation and the highest transmission speeds of any fiber cable type.
What’s in the Box
- Qty 1 – Pre-terminated 12-strand OS2 fiber cable (custom length)
- Qty 2 – Connectors (type depends on termination option)
