Description

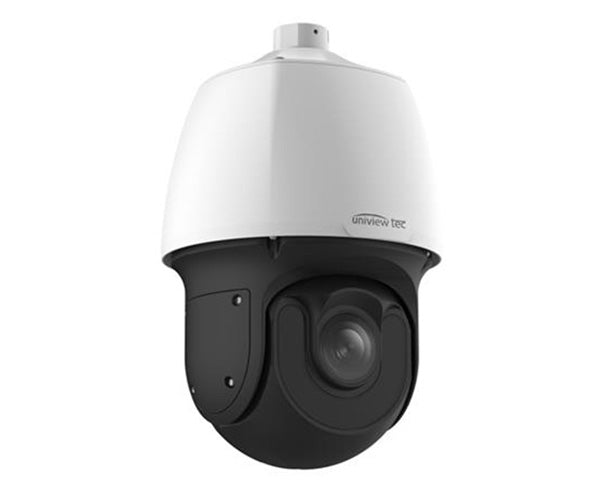

4K (8MP) PTZ Dome Security Camera
This high-speed PTZ dome camera can pan 300º per second and allows up to 1,024 preset positions. Advanced LightHunter illumination technology ensures ultra-high image quality with 4K (8MP) 3840 x 2160 resolution. It is designed to capture a clear picture ranging up to 656 feet in a pitch-black environment and has a 6~150mm, 25x optical motorized zoom with automatic focus lens. The Automatic Network Replenishment feature makes it possible to continue saving video footage during a network failure. Weather-resistant housing makes this camera suitable for both indoor and outdoor use.
Use our convenient Camera Accessory Guide to determine what items you will need for installation.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- LightHunter illumination technology ensures ultra-high quality with 4K (8MP), Ultra-HD 3840 x 2160 Resolution
- Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
- Ultra-Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 656 Feet
- 6~ 150mm, 25x Optical motorized zoom and automatic focus lens
- TRUE Day/Night and Wide Dynamic Range Functionality for all Lighting Conditions
- Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- High Speed up to 300°/sec and up to 1024 Preset Positions
- Triple Video Streams; ONVIF Profile Series Compliant
- Intelligent Perimeter Protection with Smart Intrusion Detection Analytics
- PoE (Optional Injector Required), 24VAC and 24VDC Power Options
- Built-in Micro-SD Card Slot enables local storage up to 256GB and ANR
- IP66 Weather Resistant Housing and Optional Mounts Available
- Supported by Uniview Tec Guard Station Software and Guard Viewer Mobile Apps for iPhone and Android Devices
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CAMERA | |
| SENSOR | 1/1.8", PROGRESSIVE SCAN , 8 MEGAPIXEL CMOS |
| LENS | 6 ~ 150 MM, AUTOMATIC FOCUSING AND MOTORIZED ZOOM LENS |
| ANGLE OF VIEW (H X V) | 60.5° ~ 3.1° X 36.3° ~ 1.8° (WIDE ~ TELE) |
| SHUTTER | AUTO/MANUAL, 1 ~ 1/100000 S |
| MINIMUM ILLUMINATION | COLOR: 0.003 LUX (F1.5, AGC ON); 0 LUX WITH IR |
| DAY/NIGHT | IR-CUT FILTER WITH AUTO SWITCH (ICR) |
| WDR; DIGITAL NOISE REDUCTION | DIGITAL; 2D/3D DNR |
| IR LED RANGE | UP TO 200M (656FT) IR RANGE |
| VIDEO COMPRESSION | ULTRA 265, H.265, H.264, MJPEG |
| MAXIMUM FRAME RATE / STREAM | MAIN STREAM: 8MP (3840 × 2160), MAX. 30FPS (MAX 20FPS WHEN AI FUNCTIONS ENABLED) SUB STREAM: 2MP (1920×1080), MAX. 30FPS THIRD STREAM: D1 (720×576), MAX. 30FPS |
| HLC, BLC, DEFOG, FLIP | SUPPORTED |
| OSD, PRIVACY MASK, MOTION DETECTION & ROI | UP TO 24 AREAS |
| PAN AND TILT; PRESETS, PATTERNS, PATROLS | 360° ENDLESS PAN, 300°/S MAX SPEED; -15° ~ 90° TILT, 240°/S MAX SPEED; 1024 PRESETS; 16 PATTERNS; 16 PATROLS |
| NETWORK | |
| PROTOCOLS | IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPOE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPNP, HTTP, HTTPS, SMTP, 802.1X, SNMP, QOS, RTMP |
| COMPATIBLE INTEGRATION | ONVIF (PROFILE S, G AND T), API |
| NETWORK | RJ45, 10M/100M BASE-TX ETHERNET |
| SMART INTRUSION PREVENTION | SUPPORT FALSE ALARM FILTERING: LINE CROSSING DETECTION, INTRUSION DETECTION, REGION ENTRANCE DETECTION, REGION EXIT DETECTION; FACE CAPTURE |
| LOCAL & NETWORK STORAGE | MICRO-SD, UP TO 256GB; AUTOMATIC NETWORK REPLENISHMENT (ANR) |
| GENERAL | |
| POWER | 24VAC, 24VDC +/- 25%, POE (INJECTOR REQ’D): MAX 58W |
| DIMENSIONS (Ø X H) & WEIGHT | Ø227 X 384.8MM (Ø8.9” X 15.1”); 5.6KG (12.3LB) |
| AUDIO I/O & COMPRESSION; ALARM I/O | 1 / 1; G711; 1/1 |
| OPERATING TEMPERATURE & HUMIDITY | -40°C ~ +65°C (-40°F ~ 149°F); HUMIDITY: 10%~ 95% RH (NON-CONDENSING) |
| CONFORMITY CERTIFICATIONS | IP66, CE, FCC |
Additional Information
Mounting Accessories
This camera is compatible with the following mounts:
- TR-UP08-A-IN: Pole Mount
- TR-CE45-IN: Pendant Mount Pipe
- TR-UF45-A-IN: Pendant Mount Adapter
- TR-JB12-IN: Junction Box
- TR-WE45-A-IN: Wall Mount
- TR-UC08-A-IN: Corner Mount
- TR-WE45-B-IN: Parapet Mount
- RUPTZI-1: PTZ PoE Injector
- KB-1100: Network Keyboard Controller
What's in the Box
What’s in the Box
- Qty 1 – PTZ Dome Camera Unit
- Qty 1 – Mounting Bracket (if bundled)
- Qty 1 – Quick Start Guide
