2MP Network Pinhole Security Camera
2MP Network Pinhole Security Camera
BY Primus Cable
Regular price
$368.00 USD
Regular price
Sale price
$368.00 USD
Unit price
/
per
SKU: SKU: NPNB-BN600
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details
Description
Features
Specifications
What's In The Box

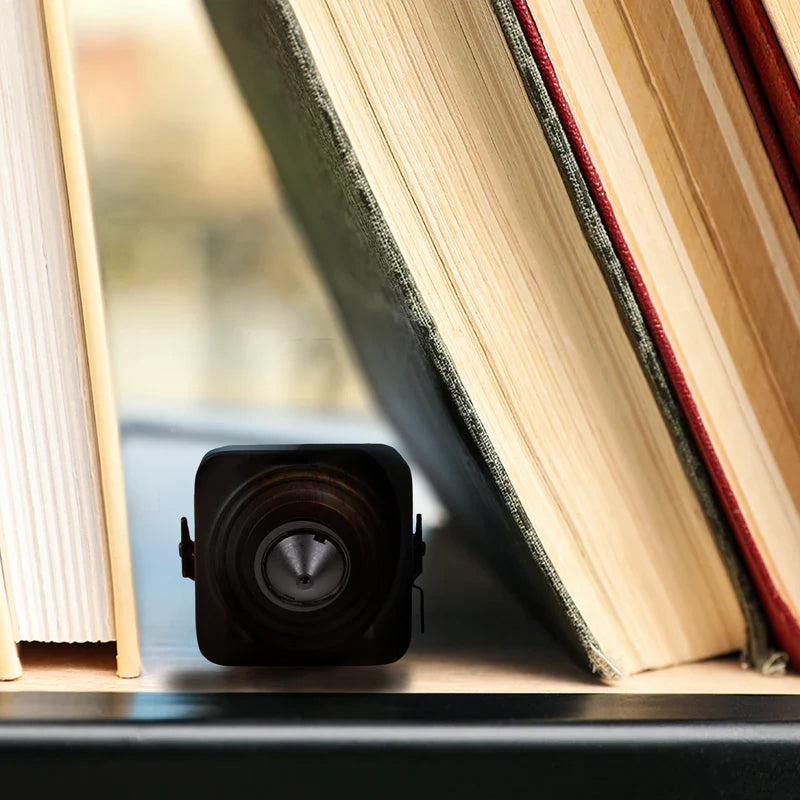

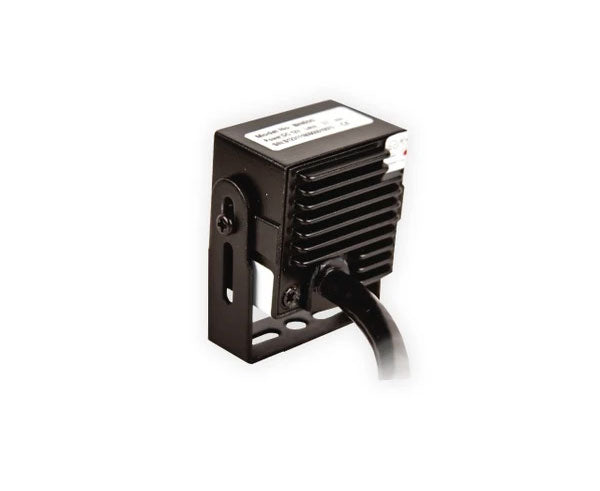

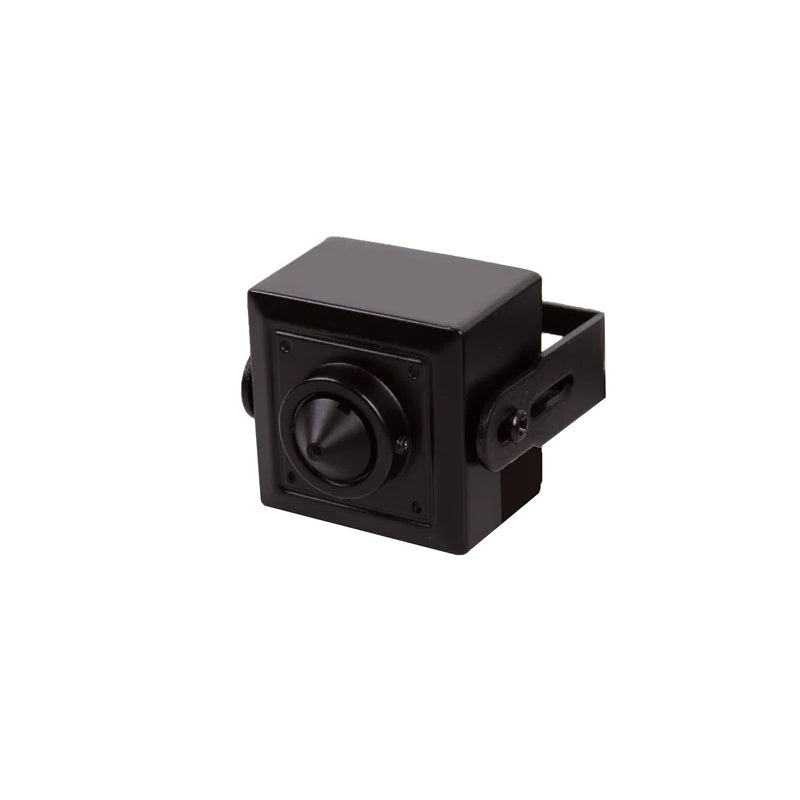

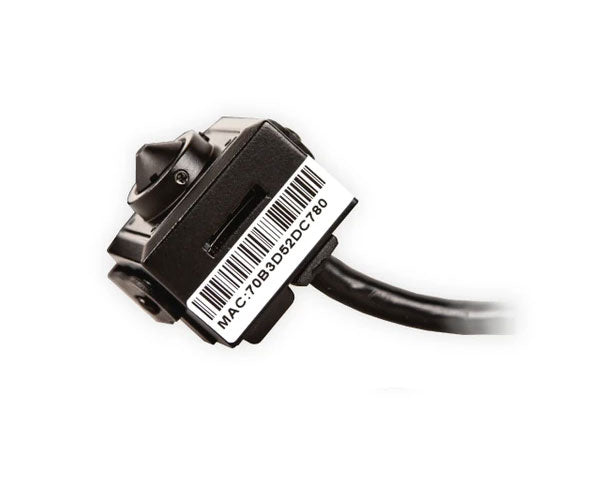

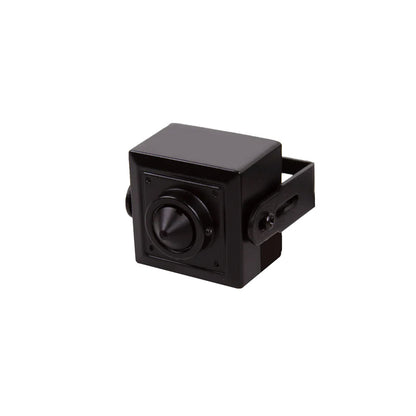

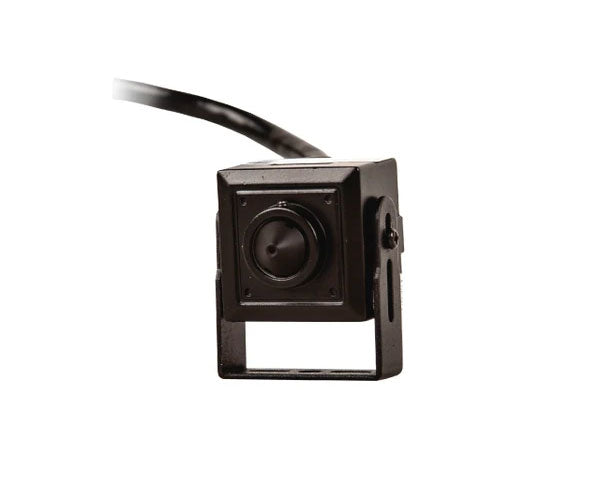

2MP Network Pinhole Camera
This network pinhole camera comes with a 1/2.8” Progressive Scan CMOS 3.7mm fixed lens, and a 2.8mm fixed lens (Optional). 2MP Resolution with multiple stream capabilities, WDR, 3D DNR & built-in Micro SD slot.
Features
-
Image Sensor: 1/2.8” Progressive Scan CMOS
-
Effective Pixels : 1920(H)×1080(V)
-
Electronic Shutter: 1/5-1/20,000s
-
System Compatibility: ONVIF Version 2.6
- Lens Type : Pinhole
-
Focal Length : 3.7mm, 2.8mm fixed lens optional
Specifications
Thermal Camera
Mechanical specifications |
|
|---|---|
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H)×1080(V) |
| Electronic Shutter | 1/5-1/20,000s |
| Min. illumination | Color: 0.001Lux @(F1.2, AGC ON) B/W: 0.0001Lux @(F1.2, AGC ON) |
| S/N Ratio | 55dB |
| Day/Night | 5.0~50mm MotorizedColor/B&W |
| Wide Dynamic Range | Ture WDR >120dB |
Fixed Iris Fixed Iris Fixed Iris Fixed Iris
Lens
|
|
|---|---|
| Lens Type | Pinhole |
| Iris | Fixed Iris |
| Focal Length | Focal Length |
| F Number | F2.0 |
| Angle of View | 84° |
| Focus Control | Fixed |
Video |
|
|---|---|
| Compression | H.265, H.264, MJPEG |
| Max. Resolution | 1080P(1920×1080) |
| Streaming Capability | 3 Streams |
| Stream / Frame Rate | Stream1:1920×1080/1280×720 @50/60fps Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps Stream3: VGA/CIF/QVGA @25/30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 200kbps~12000kbps Stream2: 100kbps~6000kbps Stream3: 100kbps~3000kbps |
| Image Enhancement | HLC / BLC / Anti-shake / Defog / WDR (>120dB) |
| White Balance | Support |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D DNR |
| Mirror | Support |
| Aisle Mode | Support |
| Region of Interest | Support |
| Motion Detection | Support |
| Noise Reduction | Support |
Audio
|
|
|---|---|
| Compression | G.711, RAW_PCM |
| Bit Rate | 8kbps, 16kps, 64kbps |
Network
|
|
|---|---|
| Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP |
| Interoperability | ONVIF, SDK, CGI |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Web Viewer |
<IE11, Chrome, Firefox |
| Smart Phone |
IOS, Android |
Interface |
|
|---|---|
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio | 1ch Input, 1ch Output |
| Alarm | 2ch Input, 1ch Output |
| RS485 | Support |
| CVBS Output | Support |
| Reset Button | Support |
| Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G |
Intelligence |
|
|---|---|
| IVS | Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
Electrical |
|
|---|---|
| Power Supply | DC12V |
| Power Consumption | 3W(MAX) |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F ) Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | N/A |
| Certifications | CE / FCC |
| Casing | Metal |
| Dimensions | 1.48"x 1.33" x 1.83" |
| Net Weight | 6.34 |

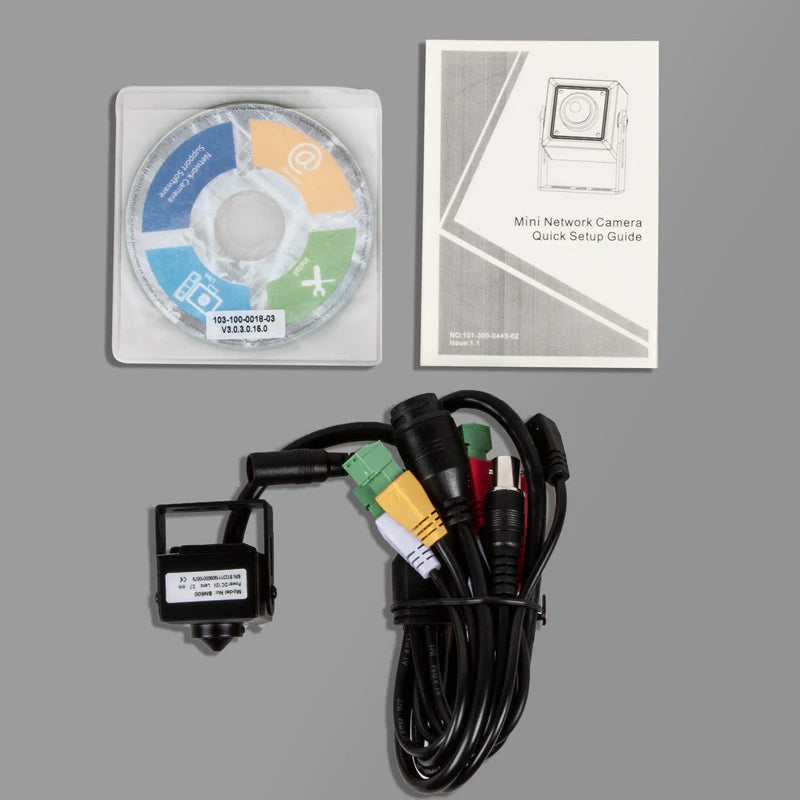

What's In The Box
- Qty 1 - 2MP Network Pinhole Security Camera
