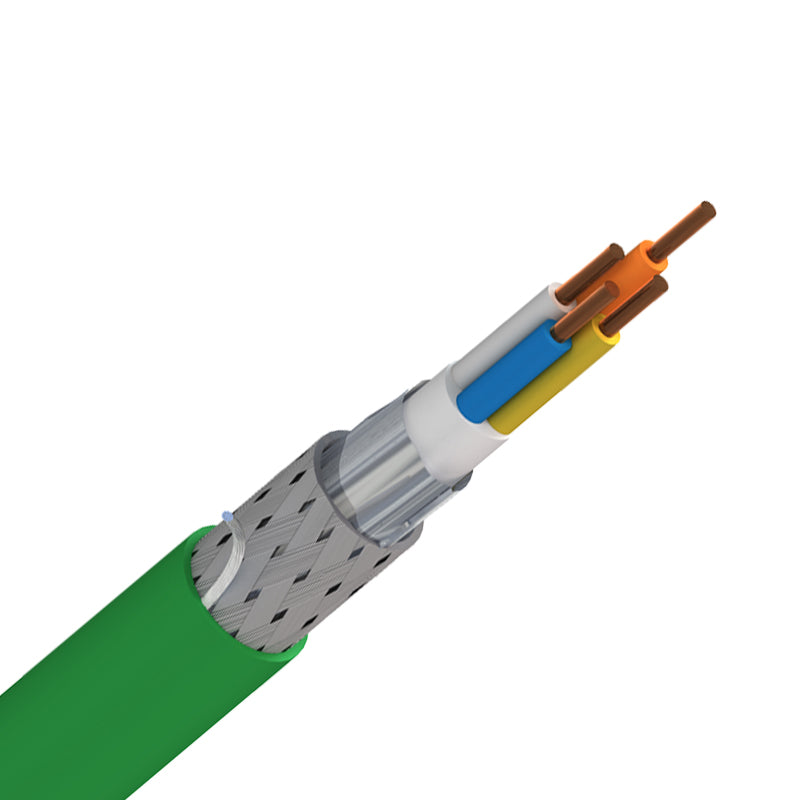

Belden 7960A DataTuff® CAT 5E Industrial, 22 AWG, 4c, SF/UTP, Profinet, Type A Twisted Cable - 1000 FT, Green
Belden 7960A - 22 AWG Symmetric quad solid bare copper conductors, polyolefin insulation, FRPE bedding, industrial grade sunlight- and oil-resistant PVC jacket, rip cord. Sequential marking at two foot intervals. PROFINET Type A cable.
Applications
Upgrade your network with the Belden Cat 5E Industrial Cable, designed for exceptional performance and lasting durability. This cable delivers fast Gigabit Ethernet speeds and superior signal integrity, perfect for demanding applications.
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.
Features
Features
- Belden DataTuff® Cat5E
- 22 AWG Solid Bare Copper Conductors
- Polyolefin Insulation
- Industrial Grade
- CMX-Outdoor CMG Rated
- 1000 FT
- Green Jacket
Specifications
Specifications
Standards and Compliance |
|
|---|---|
| Environmental Suitability |
Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
| Flammability/Reaction to Fire |
UL 1685 (UL Loading), FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEMA Compliance |
NEMA WC-63.1 |
| CEC / C(UL) Compliance |
CMX-Outdoor;CMG |
| Data Category | Category 5E |
| TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 5e |
What's in the Box
What's in the Box
-
7960A DataTuff® CAT5E Industrial, 22 AWG, 4C, SF/UTP, Outdoor Cable - 1000ft
