CAT6A RJ45 Keystone Jack, Shielded, MIG+ 10G Rated
CAT6A RJ45 Keystone Jack, Shielded, MIG+ 10G Rated
BY Primus Cable
SKU: SKU: K62A-973/180/S
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details
For a more complete list of compatibility with the Shielded MIG+ CAT 6A Keystone Jacks, please click on the Additional Information tab.
Description

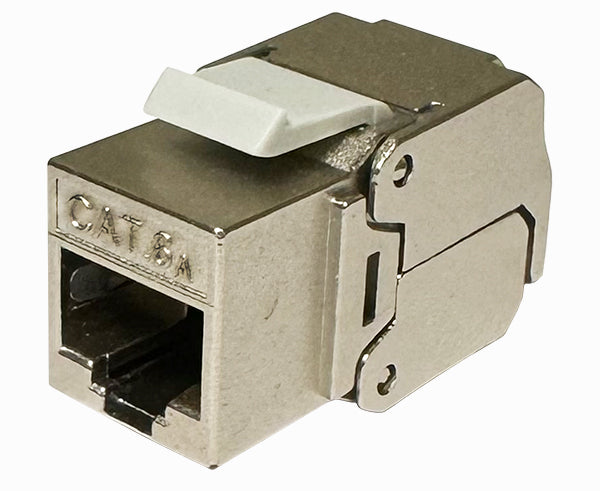

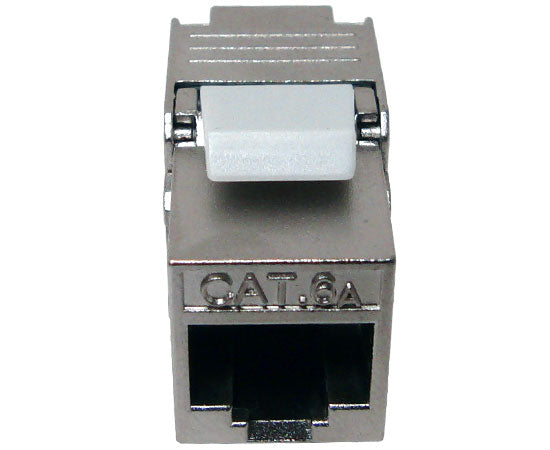

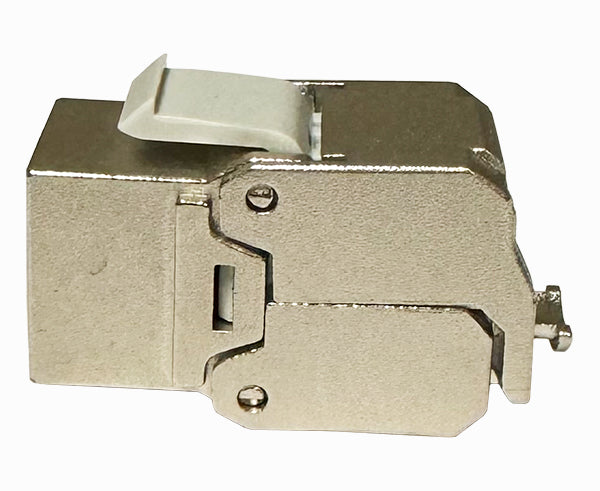

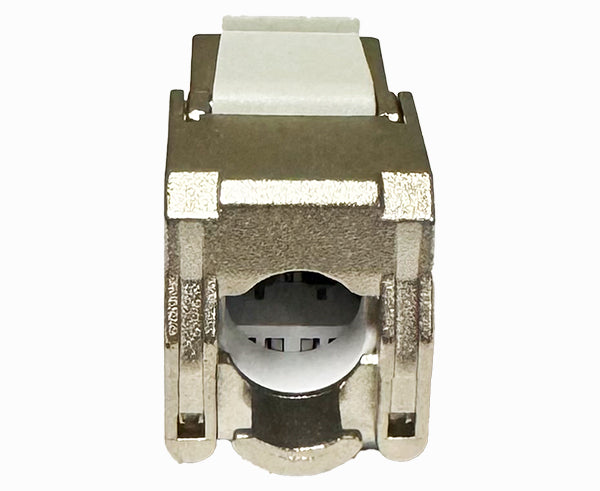

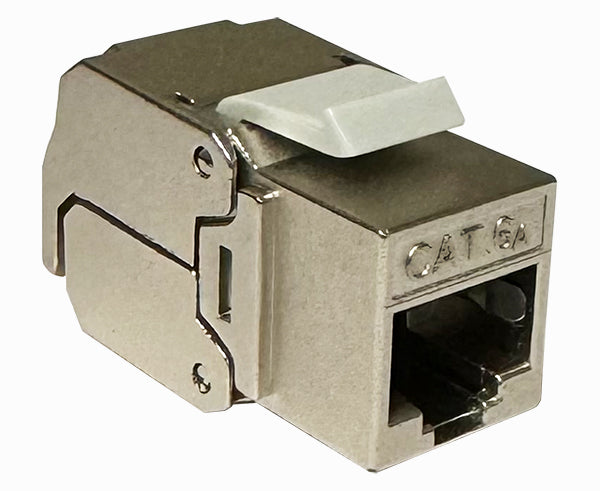

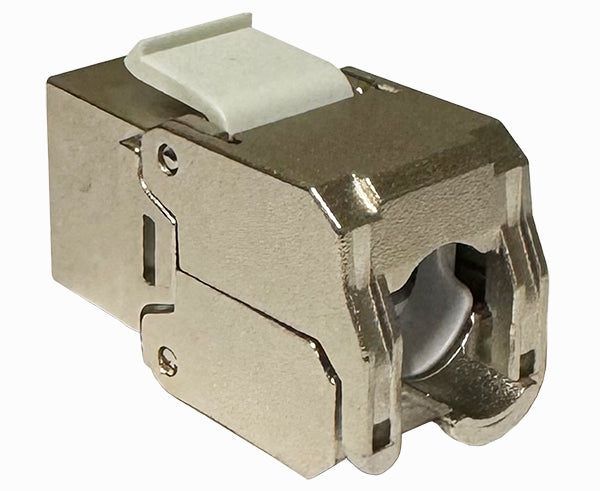

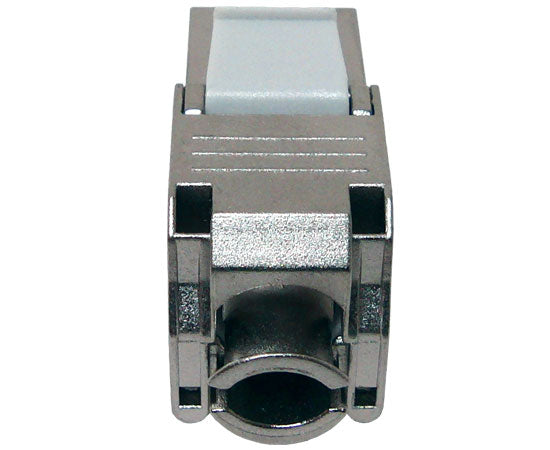

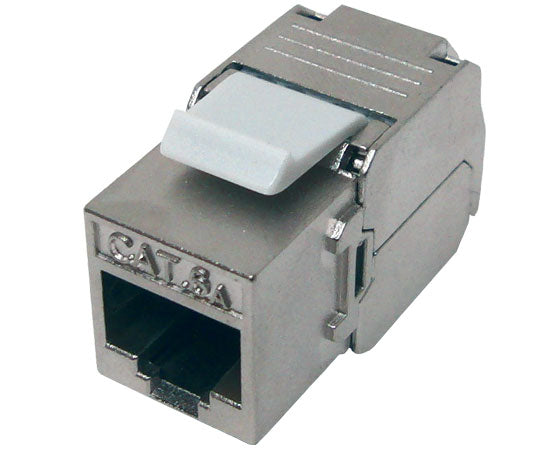

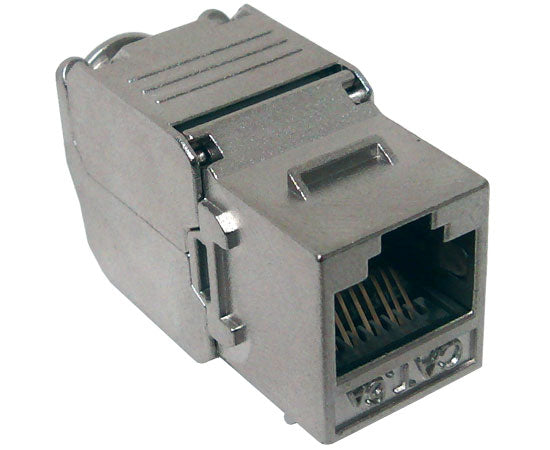

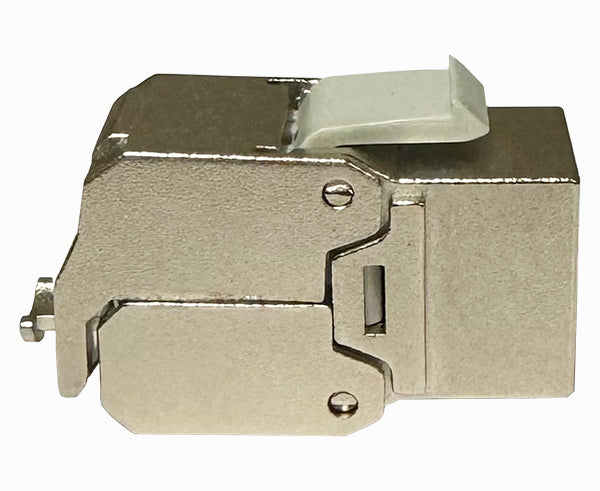

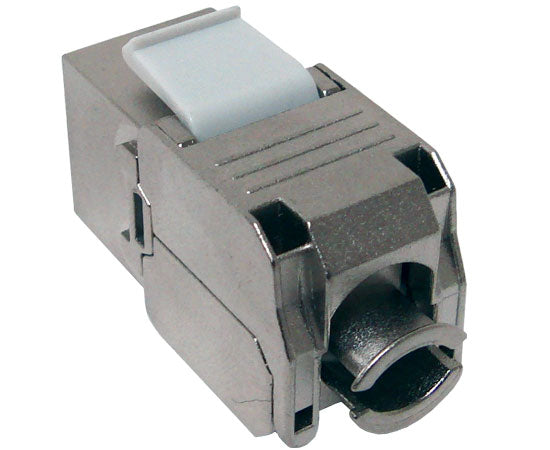

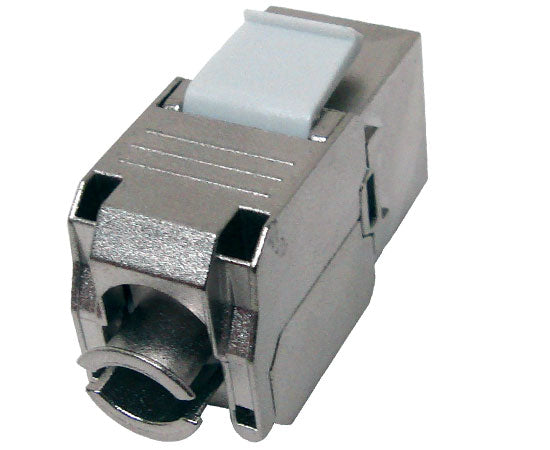

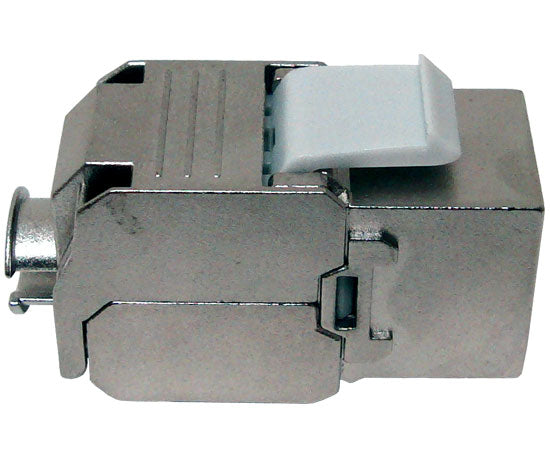

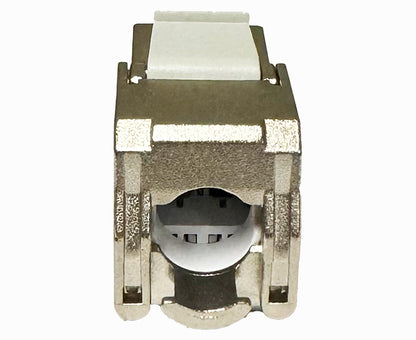

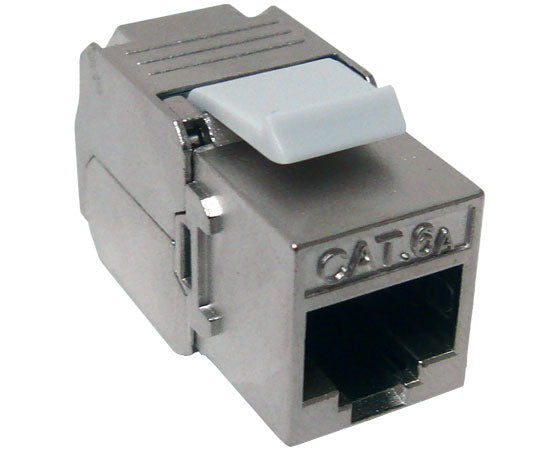

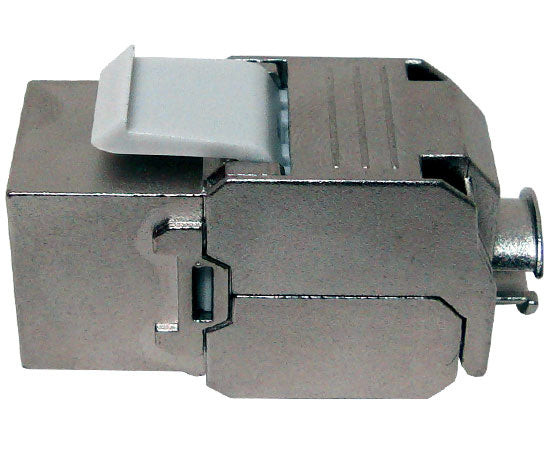

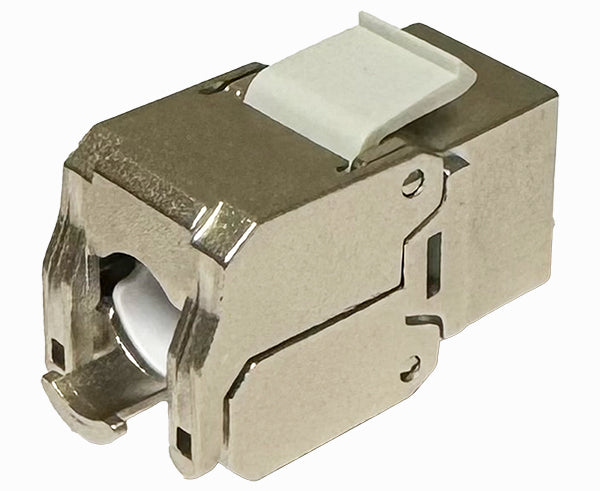

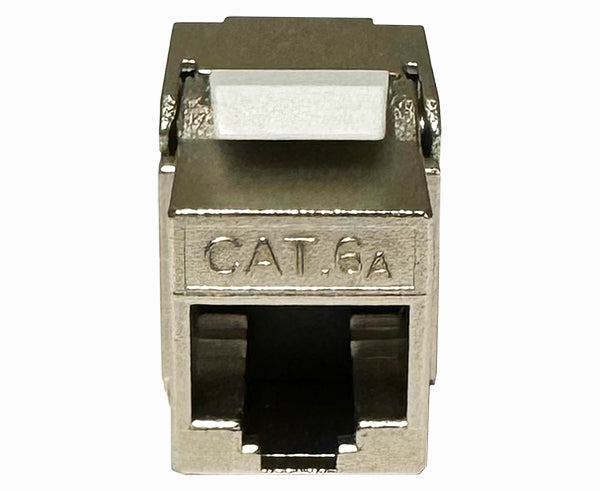

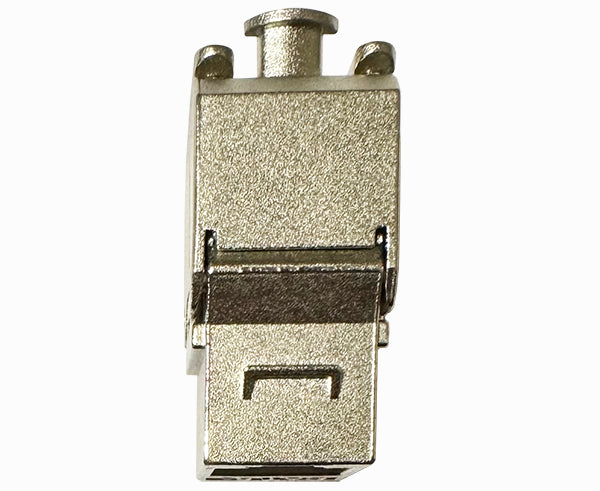

CAT6A Shielded MIG+ High Density Component Rated 180º Keystone Jack, 10G Rated

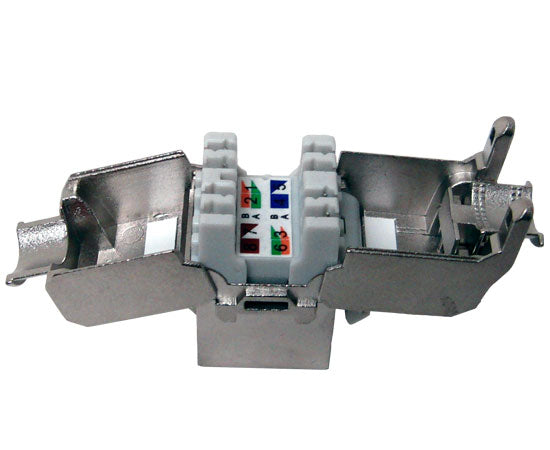

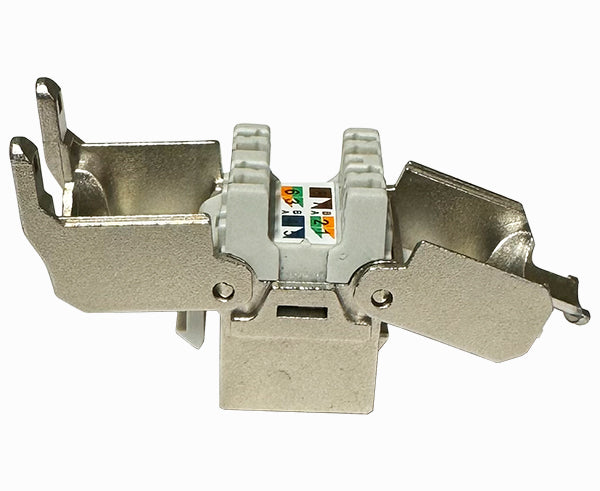

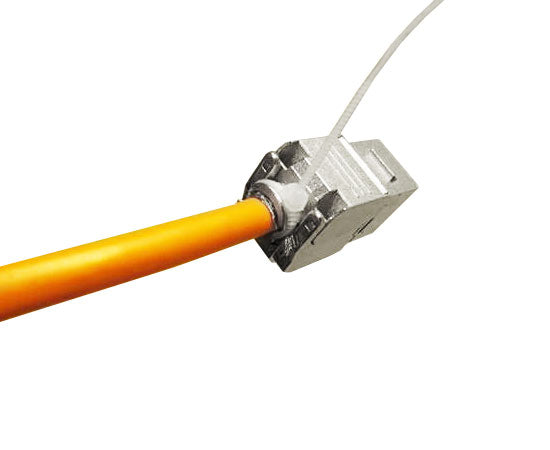

Our CAT6A Shielded MIG+ HD Component Rated line is our premier line of data jacks. The MIG+ CAT6A Shielded Keystone Jacks are engineered with PCB technology, phosphor bronze IDC contacts, gold-plated prongs, and a zinc die-cast with nickel-plated housing. CAT6A Shielded MIG+ line of keystone jacks are also compatible with solid and stranded 23 AWG to 26 AWG size wires. The CAT6A Shielded MIG+ line of keystone jacks were engineered to simplify the termination helping you save time and money with features like easy-to-read wire labels, universal T568A & T568B wiring, 110 & Krone Punch down and tool-less termination when using the IDC cap. This product also supports PoE++ (802.3bt) 4PPoE, up to 100W.
Because we take great pride in our quality control procedures and our commitment to quality our CAT6A Shielded MIG+ HD Component Rated Keystone Jack line is subject to UL standards. Our CAT6A Shielded MIG+ HD Component Rated Jacks meet all requirements for ANSI/TIA 568.D-2 Compliance and are inspected and tested to comply with stringent industry transmissions and safety standards.
To complete your CAT6A shielded network we carry a full end-to-end solution including CAT6A shielded Ethernet cables, CAT6A shielded patch cables, CAT6A shielded modular plugs, CAT6A shielded in-line couplers, shielded blank patch panels, CAT6A shielded patch panels, and wall plates. We also have a large assortment of tools, testers and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call.
Features
- CAT6A Performance Speeds of up to 10G
- 10G Rated up to 100M
- 8 Pin x 8 Conductor for Streamlined Connection
- High-Density, Slim Profile
- Supports PoE++ (802.3bt) 4PPoE, up to 100W
- Zinc Die-Casting With Nickel Plated Housing Provides Additional Protection Against the Elements and EMI and Alien Crosstalk
- Reliable Connector, and Durable Housing
- Gold-Plated Nickel Contacts Provide Corrosion Resistance and Signal Conductivity

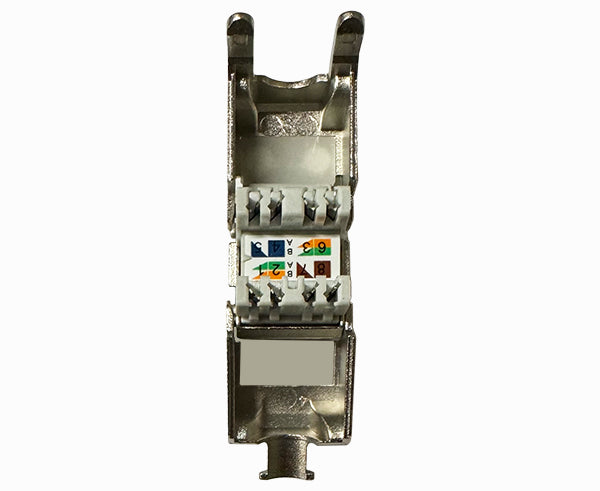

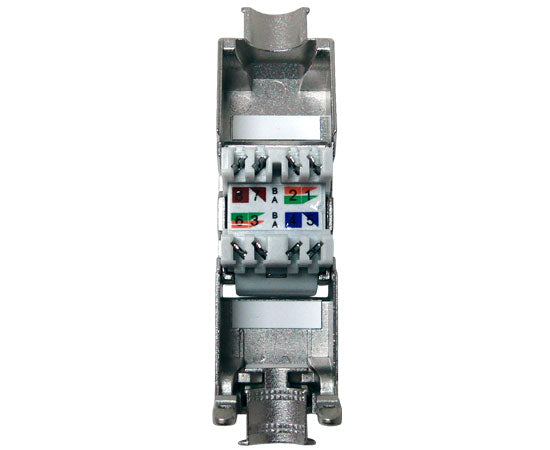

- Easy to Read Wiring Label to Facilitate Installation
- Meticulously Engineered to Deliver Exceptional Performance While Streamlining Installations
- Small Form-Factor for High-Density Installations
- Phosphor Bronze IDC Contacts Ensure Excellent Conductivity, Durability, and Outstanding Resistance Against Wear or Corrosion
- Innovative Jack Design Keeps Pairs Together to Streamline the Installation Process
- Suitable For Shielded Solid & Stranded 23 AWG to 26 AWG Wire
- T568A & T568B Wiring
- 110 & Krone Punch Down Compatible
- Tool-Less Termination When Using The IDC Cap
- Meets and Exceeds ANSI/TIA 568.D-2 Standards
- UL Listed
Specifications
| Material Specs | |
|---|---|
| RJ45 Jack Housing: | Zinc Die-Casting With Nickel Plating |
| Contact Bracket: | PC, UL 94-V2, Transparent Color |
| RJ45 Contact Material: | Phosphor Bronze with Nickel Plating |
| Finish: | 50 Micro-inch Gold Plated |
| CAP A&B: | Zinc Die-Casting With Nickel Plating |
| IDC Housing: | PC + Glass Fiber, Gray, UL 94V-2 |
| Terminal: | Phosphor Bronze With Tin Plating |

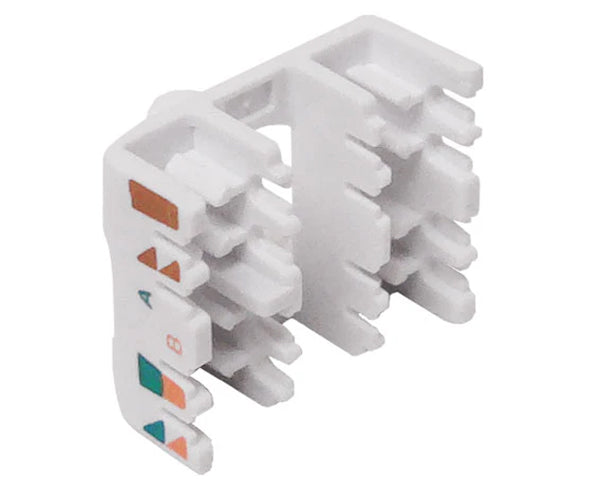

| IDC Cap: | PC + Glass Fiber, UL94-HB,White Color |
| PCB: | FR4, UL 94V-0 |
| Performance Specs | |
|---|---|
| Insertion Force: | 30N Maximum |
| Retention Strength: | 7.7 kgs Between Jack And Plug |
| Operation Temperature: | -10°C to 60°C |
| Life (Mating Cycles): | 750 Cycles Minimum |
| IDC Wire Range: | Solid & Stranded 23-26 AWG Wire |
Additional Information
Installation Instructions
To learn more about our CAT 6A Shielded Keystone Jacks here is a link to a page containing more information on our premium CAT 6A Keystone Jacks.
Our CAT 6A Shielded MIG+ High Density Component Rated 180º Keystone Jack are compatible with:
What’s In The Box
- Qty 1 - CAT6A Shielded MIG+ High Density Component Rated 180º Keystone Jack
- Qty 1 - Shielded IDC Cap

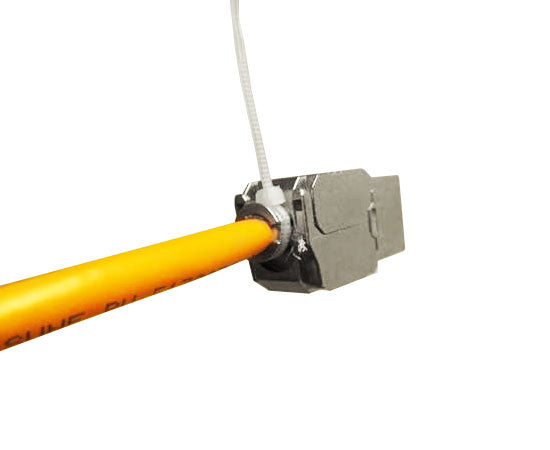

- Qty 1 - Cable Tie
- Qty 1 - Instructions
