RG6 Coaxial Cable, Dual Shield Plenum, 18 AWG CCS, CMP, 75% AL Braiding and 100% AL Foil Shield, White, 1000ft

$466.09
SKU: CC2-3205WH-6B

UL Listed logo ROHS Compliant logo ETL Verified logo Made in USA

Description

RG6 Dual Shielded Plenum CMP Cable, 18 AWG CCS, AL Foil & 75% AL Wire Braid for Digital CATV and HDTV

Our RG6 Coaxial Cable is commonly utilized for the installation of satellite, digital CATV, and HDTV television networks due to its higher level of shielding essential for optimal signal retention. The RG6 coax cable is distinguished by a denser jacketing and a thicker conductor compared to RG59, the RG6 coaxial cable facilitates data transfer at twice the speed. We supply both RG6 dual shield and quad shield cable to maximize signal retention for even sharper, clearer digital pictures. The RG6 Coaxial Cable is designed with a 75-ohm impedance and undergoes sweep testing at 3GHz.

This cable is compatible with our CN2-7885-RG6P F-Type RG6 Connector

Applications

Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.

Product Quality

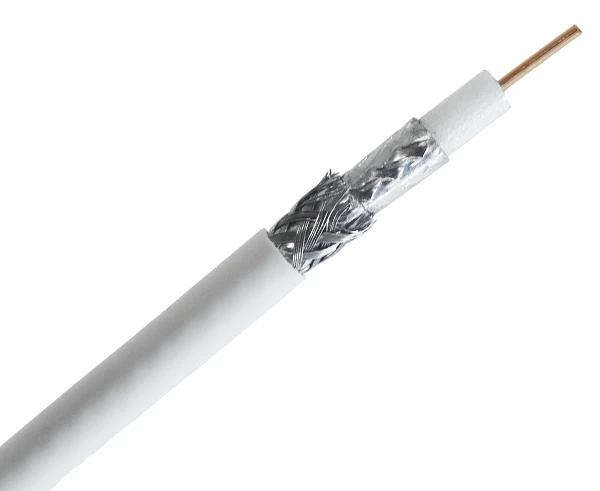

Our high quality RG6 Dual Shield Plenum Coaxial Cable consists of an 18 AWG solid Copper Clad Steel (CCS) inner conductor that transmits the signal. It is wrapped in a dielectric polyethylene insulation. This RG6 dual shielded plenum coaxial cable comes with 100% aluminum foil bonded and 75% aluminum wire braided shield. This is covered with a flame rated PVC jacket (CMP). Our cables are UL listed and RoHS Compliant.

3205 rg6 coax cable for internet

Where to use Coaxial Cable

A broad range of applications exist for coaxial cabling. It is widely used with entertainment equipment such as Cable Television (CATV), Digital HDTV, Audio / Video, and Digital Satellite receivers in commercial settings such as schools and hospitals. It is also used with security cameras, and GPS Systems. Since this RG6 Plenum Coaxial Cable has a solid copper conductor it is the perfect cable choice for any CCTV transmission or surveillance system and helps eliminate signal loss.

Why Plenum?

A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.

Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.

Features

Features

  • Premium RG6 Plenum Coaxial Cable
  • Suitable for Digital HDTV applications, CATV, Outdoor TV Antennas and Digital Satellite Installations
  • Sweep-Tested to 3.0 GHz.
  • 75 Ohm Impedance
  • 18 AWG Solid Copper Clad Steel (CCS)
  • 100% Aluminum Foil Bonded & 75% Aluminum Wire Braid Shielding
  • CMP Rated
  • Meets Current NEC Guidelines; CATVP, CMP
  • UL Listed
  • ETL Listed
  • RoHS Compliant
  • Made in the USA
  • Comes in White

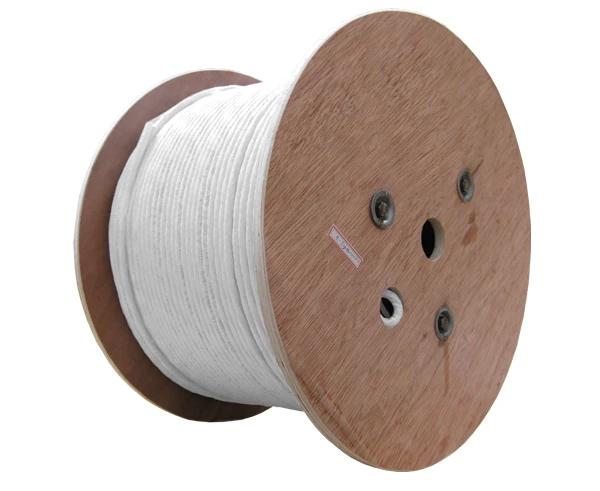

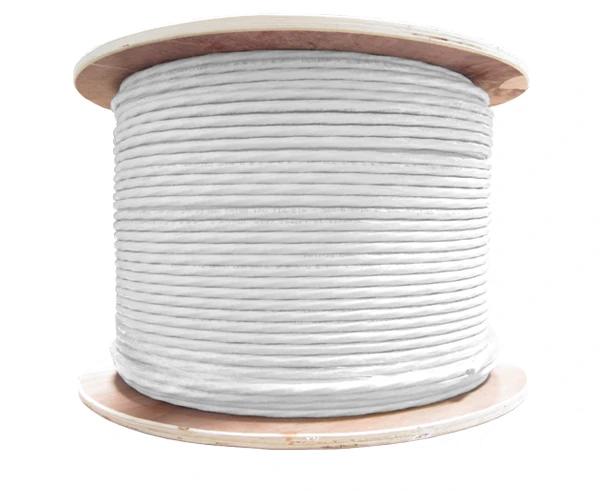

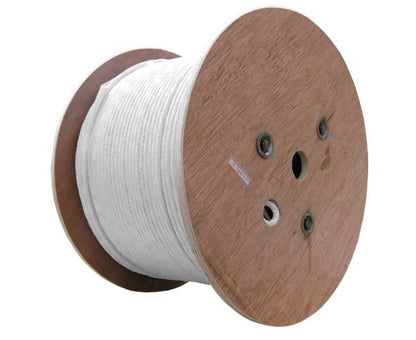

  • Supplied in 1,000' Increments on Wooden Spool

Specifications

Specifications


Physical Characteristics

Conductor Size: 18 AWG
Conductor Material: Solid Copper Clad Steel (CCS)
Dielectric Core Diameter: 0.170 in.
Dielectric Material: Foam FEP
Shielding: 75% AL Wire Braiding + 100% AL Foil
Outer Jacket Material: Plenum CMP
Outer Jacket Diameter: 0.230 in.

Electrical Characteristics

Nominal Impedance: 75 Ohm
Nominal Velocity of Propagation: 84%
Nominal Capacitance: 15.8 Pf/ft
Nominal Conductor DC Resistance DCR @ 20™C: N/A
Maximum Operating Voltage-UL: N/A

Mechanical Characteristics

Operating Temperature Range: -5°C to +75°C
Maximum Recommended Pulling Tension: N/A

Additional Information

Additional Information


To learn more about our RG6 Bulk Coaxial Cable here is a link to a page containing more information on our premium RG6 Bulk Coaxial Cable.

To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.

What's in the Box

What's in the Box

  • (1) - RG6 Dual Shield Plenum CMP Coaxial Cable, 18 AWG CCS, 75% AL Braid, 100% AL Foil
  • Supplied in 1,000' Increments on Wooden Spool, White
