Description

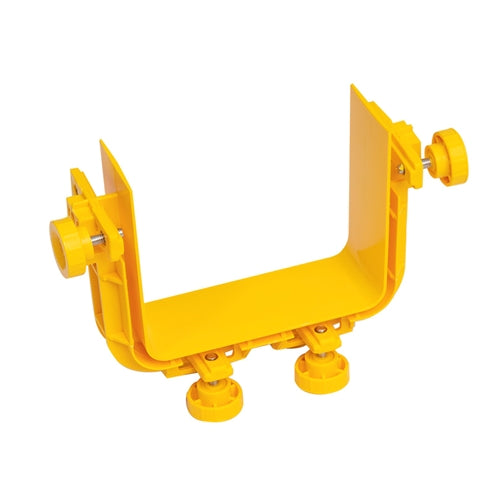

Coupler, 2.5", 5", 10", 15" - Fiber Cable Tray Channel

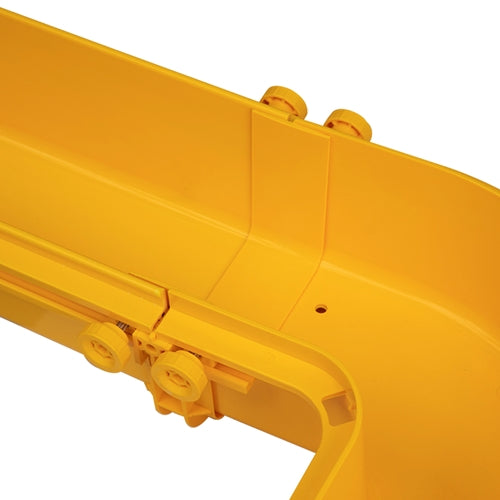

Couplers are used to quickly and easily connect straight channel sections and/or transitional fittings. Completely tool-free installation - simply hand-tighten the thumb screws to secure.
Features
Features
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
- UL listed
Specifications
| TECHNICAL SPECIFICATIONS | ||||
|---|---|---|---|---|
| FIBER CABLE TRAY CHANNEL | 2.5” Coupler | 5” Coupler | 10” Coupler | 15” Coupler |
| MATERIAL | LIGHTWEIGHT, FLAME-RETARDANT PVC (V-0 RATED) | |||
| COLOR | YELLOW | |||
| DIMENSIONS (L X W X H) | 2” x 3.5” x 2.1” | 6.7” x 3.3” x 4.8” | 11.4” x 3.3” x 4.8” | 16.38” x 5.25” x 4.0” |
| WEIGHT | 0.1 LBS | 0.27 LBS | 0.35 LBS | 1.13 LBS |
| HARDWARE | NO HARWARE REQUIRED | (8) THUMB SCREWS FOR CONNECTIONS (INCLUDED) | (8) PLASTIC THUMB SCREWS (INCLUDED) | (10) PLASTIC THUMB SCREWS AND (10) PLASTIC SQUARE NUTS (INCLUDED) |
| COMPLIANCE & STANDARDS | UL2024 & UL94-V0 | |||
| SELLING UNIT | 1 PIECE | |||
Additional Information
| INSTALLATION ANIMATIONS |
|---|
 |
What's in the Box
What's in the Box
-
Qty 1 - Coupler, 2.5", 5", 10", 15" - Fiber Cable Tray Channel
- Qty 1 - Plastic Thumb Screws Included
