Plenum Single Mode Tight Buffer Distribution Fiber Optic Cable for Indoor/Outdoor Use

by OCC
$5.60
SKU: DX072KSLX9YP
Strand Count

If you’re looking to purchase more than one spool then each spool needs to be entered into the cart as a separate line item. Input the length and then select Add to Cart for every individual spool needed.
This product has a minimum $50 associated cut fee applied to the shipping cost

Various lead times may apply to this product. Please contact us for more details.
Made in USA UL Listed

(We do not offer credits or returns for this item.)

This fiber cable is priced per foot and may include a minimum order length.

If you would like to inquire about our custom fiber cable options such as terminated ends, pulleyes, and custom cut lengths, please call or email us.

Description

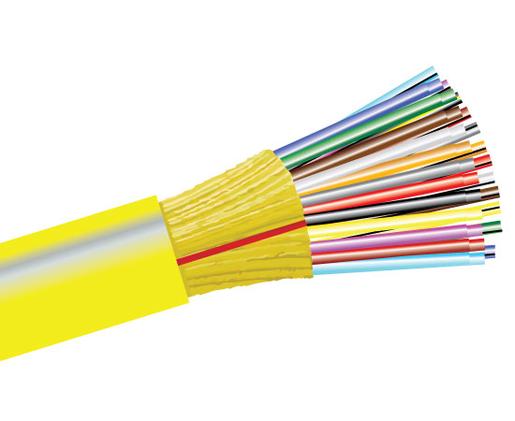

OCC's Indoor/Outdoor Plenum Single Mode 9/125 Distribution Tight Buffer Fiber Optic Cable

This plenum distribution fiber cable is used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces. It's ideal for configurations requiring a single termination point with multiple fibers. The plenum distribution fiber optic cable uses high performance components and construction and is UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

  • High performance components and construction
  • High specific strength-to-weight ratio and compact cable design for limited conduit space and tight bends in long cable pulls
  • Helically stranded core for flexibility, survival in difficult installations, and mechanical protection for the fibers
  • Lower installed cost
  • High performance tight-buffered coating on each fiber for environmental and mechanical protection
  • High crush resistance may eliminate the need for innerduct
  • 900 μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber.
  • UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces

Applications

  • Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces
  • Ideal configuration for a single termination point requiring multiple fibers

Indoor/Outdoor ("K" Jacket)

  • Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments
  • Cable materials are UV, water and fungus resistant
  • Higher fiber counts available than similar cables available by others in subgrouped configuration
  • Jacket is highly chemical resistant for installation in harsh industrial environments
  • Interlocking armor can be applied to cables as an alternative to conduit installation
  • Can be installed outside and in plenum or riser pathways inside, eliminating the need to transition cable types between environments
  • 2 to 72 fiber configuration is smaller and lighter than comparable sub-grouped cables, which is ideal for installation in areas with limited space or tight bends

Standards List

  • UL 1651
  • ANSI/NFPA 262
  • GR-409-CORE
  • ICEA-S-104-696
  • ICEA-S-83-596
  • TIA-568
  • TIA-598
