HDMI Extender, 60 Meter (200Ft) Single CAT5E/6 Cable with Bi-Directional IR Control, 1080p 60Hz
HDMI Extender, 60 Meter (200Ft) Single CAT5E/6 Cable with Bi-Directional IR Control, 1080p 60Hz
BY Primus Cable
SKU: SKU: AV9-6180-HDMIEXE60
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details
CAT5E or CAT6 Cable HDMI Extender with Bi-Directional IR Control, 1080p 60Hz

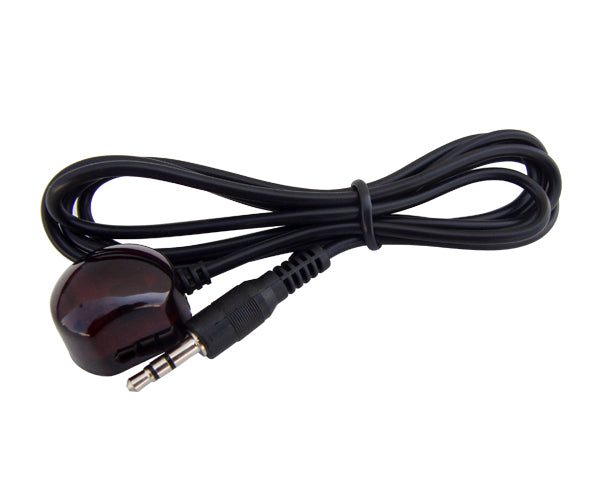

The one-input over one-output HDMI Extender is designed to carry DVI/HDMI signals over distances beyond the capability of standard HDMI/DVI cables. It extends HD video and audio over a single CAT5E/6 cable up to 200ft (60 meters) and is compliant with EDID. These Extenders come with Bi-Directional IR controls. Both RX and TX Extenders have an IR Receiver, giving users the ability to control DVD players or cable boxes through the use of these extenders.
In addition, the extender provides auto-adjustment, buffering, and signal equalization to maintain pixel-perfect resolution up to HD 1080p at 60Hz. Ideal for relocating your source such as a Blu-ray player or a satellite box to a remotely located display.
Features
- Extend HDMI Over CAT6 or CAT5E Cables up to 200 FT (60m)

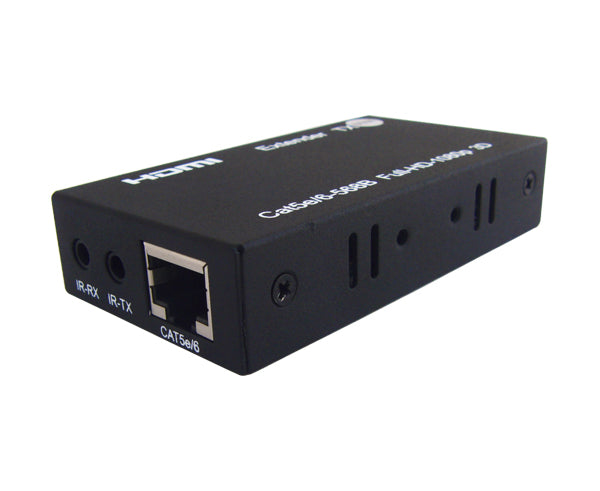

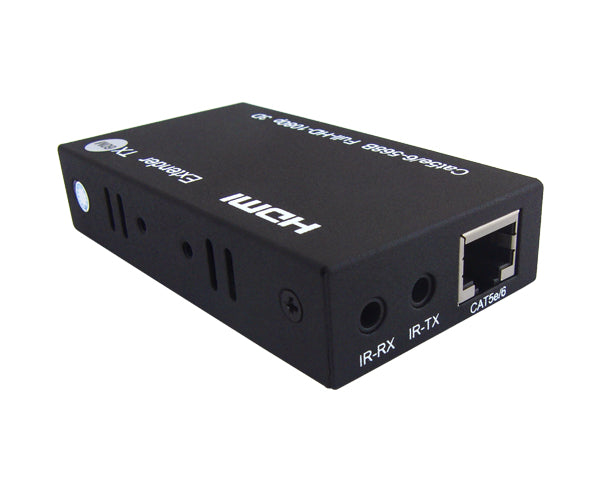

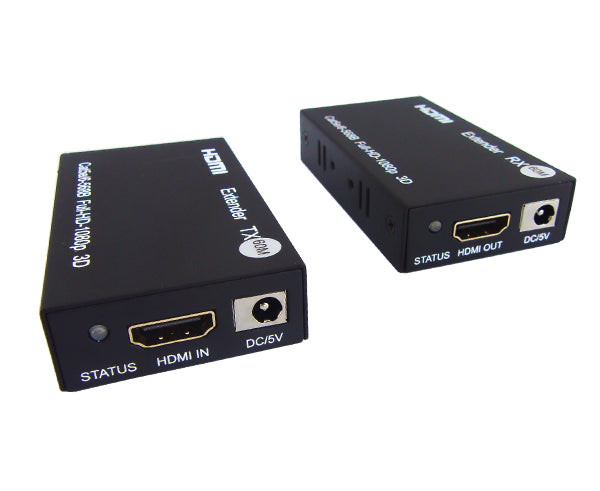

- Compact Size Transmitter and Receiver
- Connection Between Transmitter and Receiver with a Standard Network Cable
- 1.5Gbps Data Rate and Clock up to 148.5MHz
- Supports High HD Digital Resolution up to HDTV's 720i / 720p / 1080i / 1080p
- Works with HDMI Switch, HDMI Splitter, and All Kinds of HDMI/HDCP Source and Output Displays

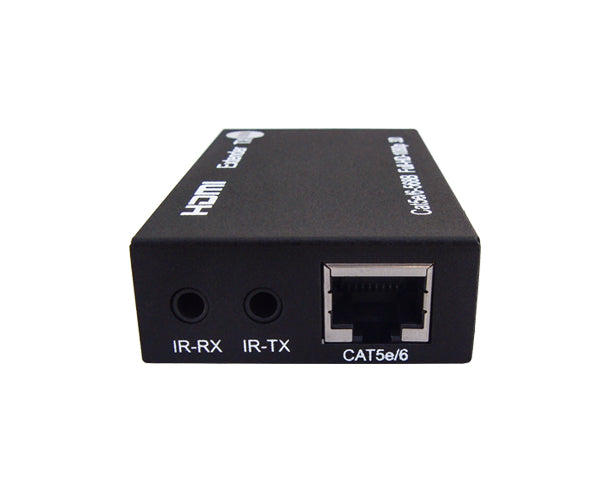

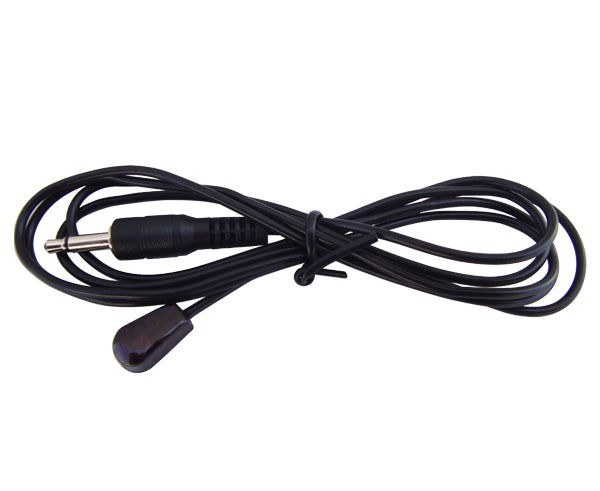

- Bi-Directional IR Control
- RoHS Compliant
- 3D Compatible
- Tested to Comply with FCC Standards
- Supports 8 Bit Deep Color
- Follow the Standard of IEEE-568B
- Standard HDMI Cables Can be Used Which are 26AWG with an Input of up to 10 Meters and Output of to 15 Meters
Specifications
Specifications |
|
|---|---|
| Max Bandwidth | 148.5MHz |
| HDMI Input | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| HDMI Output | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Supported Audio | DTS/Dolby/LPCM |
| Max Transmission Distance | 60 Meters (approx. 200ft) |
| Max Baud Rate | 1.5Gbps |
| Input Video Signal | 0.5~1.5Volts p-p |
| TX Max Working Current | 510mA |
| RX Max Working Current | 100mA |
| Power Adapter Format | Input: AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A |
| Operating Temperature Range | -15°C to +55°C |
| Operating Humidity Range | 5 to 90% RH (No Condensation) |
Dimensions (Receiver and Transceiver) |
|
|---|---|
| Length | 3.2 inches |
| Width | 1.8 inches |
| Height | 0.7 inches |
Additional Information
You can discreetly increase the range of your television signal with an affordable, compact HDMI Extender, making your home theater configuration more flexible. All our HDMI cables and devices are purchased from manufacturers that are CERTIFIED by hdmi.org. Get the most out of your home theater solution with our HDMI Extenders today!
To learn more about our HDMI/VGA Extender Accessories please visit our overview page. Our HDMI Extenders can be combined with a wide array of products such as:

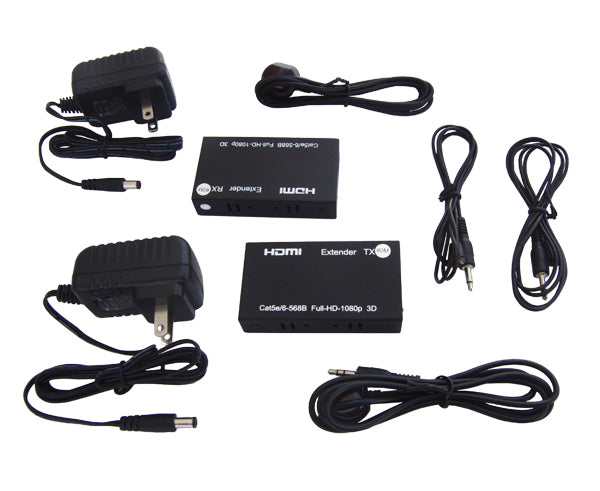

What's in the Box

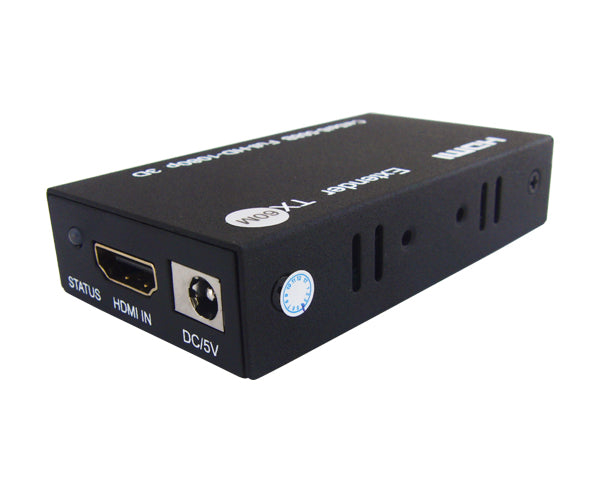

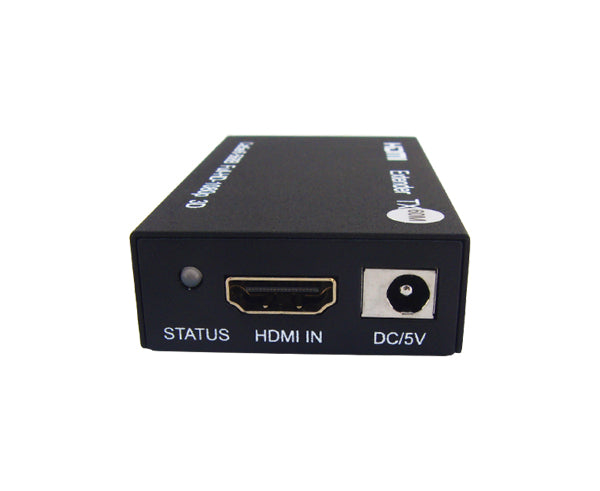

- Qty 1 - HDMI TX Transmitter
- Qty 1 - HDMI RX Receiver
- Qty 2 - HDMI Receiver
- Qty 2 - HDMI Receiver Controls
- Qty 2 - Power Cords
