Industrial Track Mount Switch Set - 4700-A Series
Industrial Track Mount Switch Set - 4700-A Series
BY GRI
SKU: SKU: 4700-A
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full detailsThese products are all Made to Order
Which means they are non-cancelable and non-refundable
Industrial Track Mount Switch Set - 4700-A Series

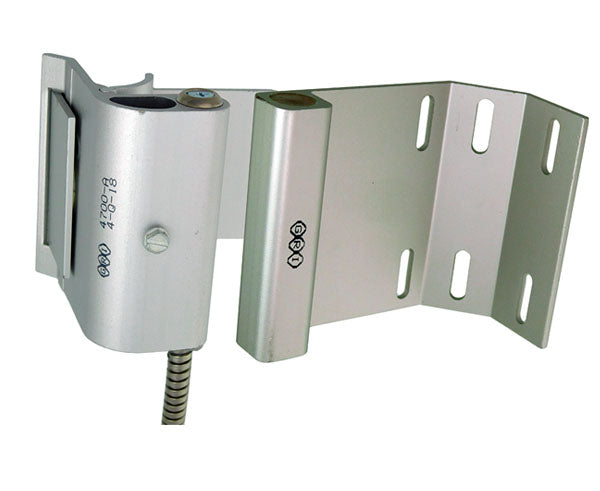

The Industrial Track Mount Switches in the 4700-A Series are engineered to prevent false alarms caused by standard floor switches being damaged by equipment like forklifts. The contacts are elevated onto the track, avoiding equipment interference. Easy to install and highly adjustable, these switches fit various track sizes, requiring just one or two screws for installation. They accommodate both sides of the door, and the cable exit can be reversed for simplified installation. An adjustable magnet bracket aids in challenging installations, while self-drilling screws expedite the process. With a gap of up to 3 inches, these switches handle wear and misalignment in doors effectively.
Features
- Reversible probe assembly
- Left or right installation
- Reversible cable exit
- 3 ft. armored cable standard
- Multi position adjustable magnet bracket
- Closed loop or SPDT
- Hinge design for tighter clamping to track
- Up to 3” gap

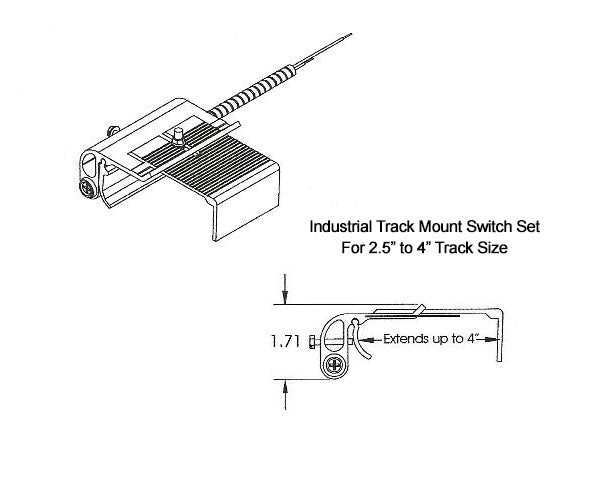

- Fits channels from 1.75” up to 4”
- Self drilling screws included for easy installation

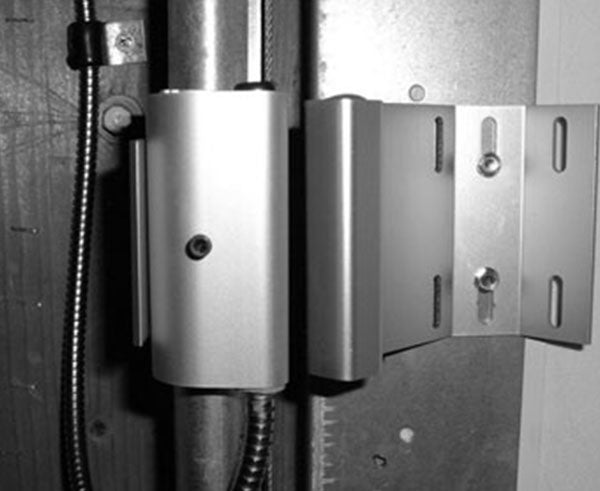

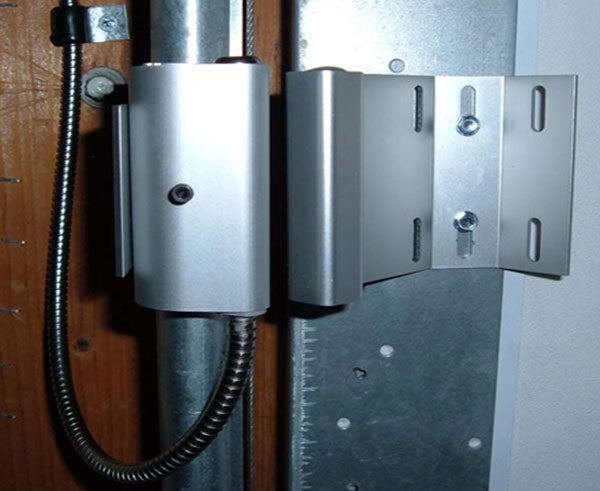

- Contacts are on the channel and not where they can get damaged on the floor
- No special tools required for installation
Installation Instructions
Select a location on the channel that will be out of the way during normal use of the door. The switch can be located anywhere along the channel. This location should also have a matching location on the door when it is in the closed position that the magnet can be attached to.
If necessary reverse the armored cable by removing the screw opposite the cable and moving the probe to the opposite side of the switch. Then just reinstall the screw. Before assembling the switch, back out the hex head screw until the end is flush with the switch body. Assemble the switch by sliding the hinge plate into the slot on the switch and inserting the L shaped bracket into the other slot on the switch. (XL version: Install the countersink screw and nut through switch body and L shaped bracket. Snug nut up letting L shaped bracket still slide.) (Optional: Install piece of double sided stick tape on inside of short side of L shaped bracket to prevent movement from track vibration.) Then squeeze the switch assembly around the channel making sure the switch locks into a slot on the L shaped bracket. (XL version: Tighten the nut making sure that the switch stays in the slot on the L shaped bracket.) Then just tighten the hex head screw to firmly attach switch to channel.
The magnet is installed by locating a position on the door that will be out of the way as the door is opened and closed. The magnet should be placed vertically and so that it will stay in range of the switch as the door wears or moves around. There are multiple mounting positions on the magnet bracket in order to make finding the mounting position easier.
What's In The Box
- 1 x Industrial Track Mount Switch Set + Self Drilling Screws
