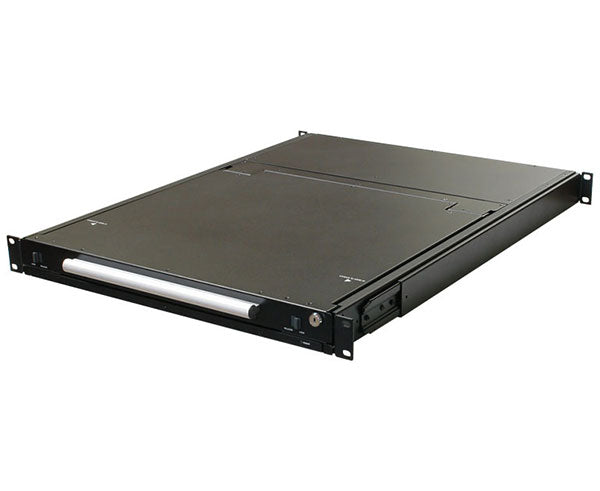

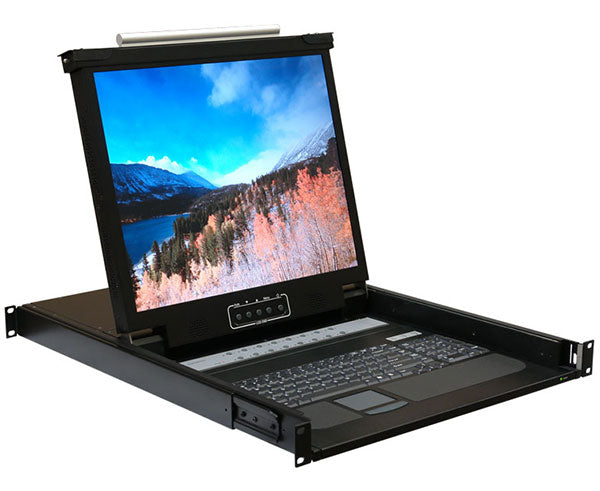

KVM Console, Rackmount LCD, 16 Port, 1U, 22.9" Depth

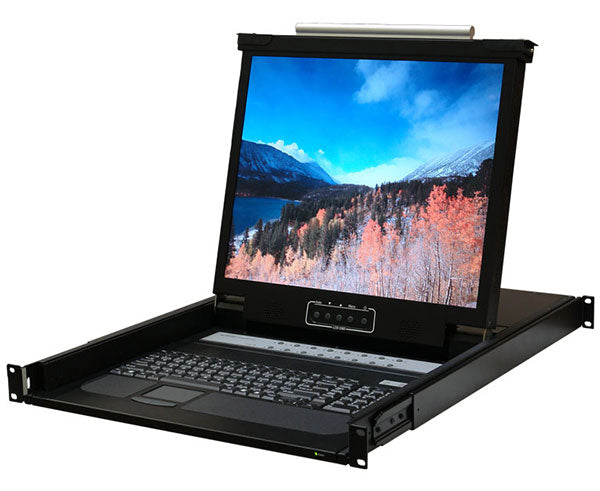

If you're looking for the ultimate in connectivity and ease of use, we offer the KVM 16 Port Rackmount Console. It comes featured with a full 103-key keyboard, along with a trackpad, and a clear crisp 15 inch flat panel LCD screen.
Along with these features, all the metal is made with heavy steel. No software is required and each KVM comes with the KVM body, rails, power cable, screws, and manual, so you'll be up and running in minutes.
Features

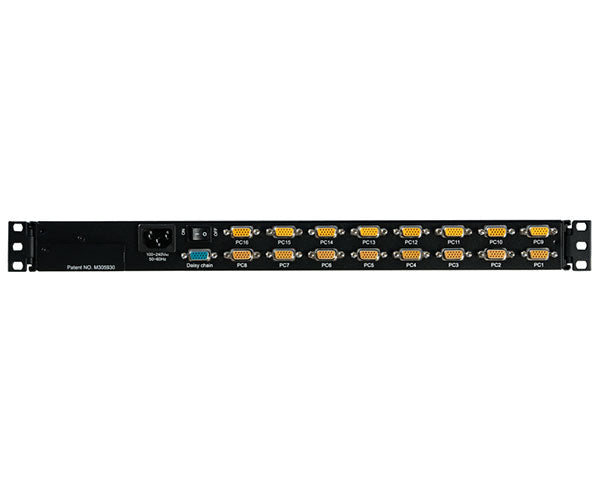

- 19" 1U Rackmount 16 ports KVM Console LCD Monitor
- 103-key keyboard and integrated Touch Pad
- Built-in Rail Self-locking device
- Support combo (PS/2 & USB) interface for connecting to computer ports conveniently
- One optional remote console
- Support Daisy chain (8-layer) & Cascade (2-layer) function
- No Software Required --- easy computer selection via On Screen Display (OSD) Menu, Push Buttons, and Hotkeys
- Provide various Hotkey (Scroll-Lock/ Cap-Lock/ Num-Lock/ L-Alt/ L-Ctrl/ L-Win/ R-Alt/ R-Ctrl/ R-Win) for switching computer port and other control functions, so Hotkey function can be used in various types of keyboards, and to avoid Hotkey duplicate problem
- Operating system independent, transparent to all applications
- Provide ACL (Access Control List) security function. Store up to 8 independent user accounts
- Hot Plug --- add or remove connected computers without powering off the LCD Drawer
- Support two user layers, and search computer/server name
- Keyboard status restored when switching computer
- Standard 19 inches rack mounting design
Specifications
|
Connection Type |
Combo (PS/2 or USB Connector Support) |
|
Max. Distance (LCD Drawer to Server) |
16 feet (5m) |
|
CAT.5 - Based (Optional) Remote Console Module |
RJ-45 Connector, CAT.5 console up to 1000 feet away from Drawer with superior, auto-adjust RGB gain/delay control capability |
|
Over IP -Based (Optional) Remote Module |
RJ - 45 8P8C for 10/100 M Ethernet, DB9 male for Modem, Null modem and serial power control, Mini USB 2.0 receptacle |
|
Daisy Changes |
Support Daisy chain (8 - layer) and Cascade (2 - layer) function |
|
Hotkey |
Provide various Hotkey (Scroll-Lock/ Cap-Lock/ Num-Lock/ Alt/ Ctrl/ Win) |
|
Security |
Provide ACL (Access Control List) security function, store up to 8 independent controllable Computers lists |
|
Multilingual OSD (On Screen Display) control |
8 Languages (English, French, German, Spanish, Italian, Russian, Japanese, Simplified Chinese) |
|
LCD |
19" XGA TFT LCD |
|
Display Area (mm) |
386.4 (H) x289.8 (V) (19.0-inch diagonal) |
|
Pixel Pitch |
0.294 (H) x0.294 (V) |
|
Recommended Resolution |
1280 x 1024 @ 60Hz |
|
Contrast Ratio |
1000/1 |
|
Luminosity |
300 cd/m² |
|
Response Time |
7 msec |
|
Display Color |
16.7M (8 bits/colors) |
|
Viewing Angle |
-85°~85°,-85°~85° |
|
Operating Time |
LCD MTBF>50000H, Backlight MTBF>30000H |
|
Power Supply |
AC 100-240V Universal |
|
VGA |
15-pin D-Sub |
|
Keyboard and Touch Pad |
103-key keyboard and integrated Touch Pad |
|
Environmental Consideration |
0°C~50°C in operating; -20°C~60°C in storage |
|
Humidity |
10~85% in operating; 10-90% in storage |
|
Dimensions ( W x D x H ) |
19" x 22.9" x 1.73" (483mm x 582mm x 44mm) |
|
Weight |
18 kg/40 lb (NET) 26 kg/58 lb (GROSS) |
|
Accessories Included |

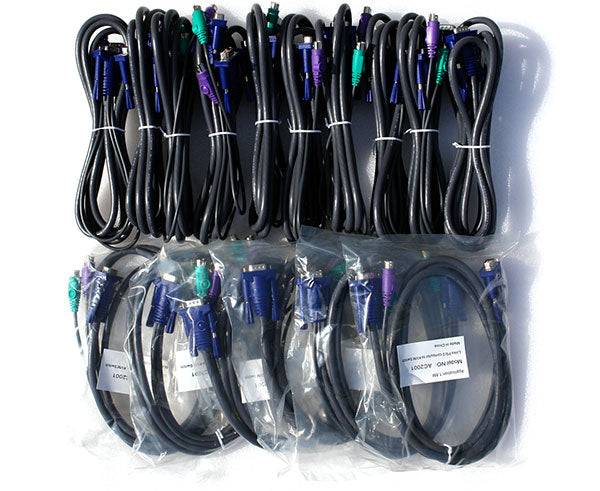

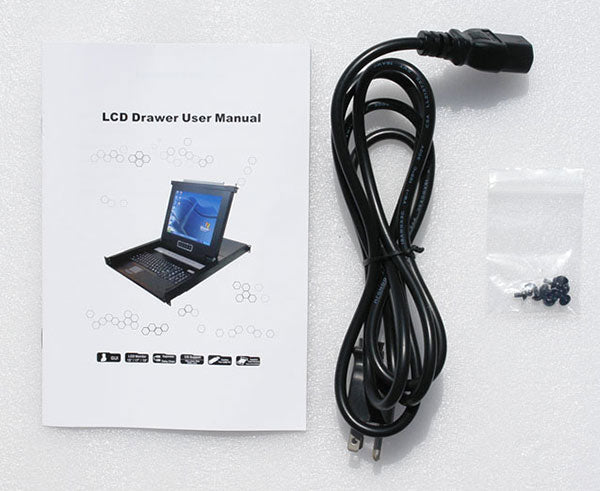

Rails, manual, power cord, keys, 16pcs PS2 KVM cables |
Rack Shelves, Drawers, Trays Accessories
Maintaining organization in your server room, or networking hub can help save time and prevent frustration when tending to your network. Not all networking components are rack mountable, let us assist you with our rack component shelves. The network component shelf allows you to organize components such as: LCD monitors, modems, DSL routers, tape players, and backup units which are not rack mountable.
To learn more about our Rack Shelves, Drawers, and Trays please visit our overview page. Kendall Howard's Keyboard Trays can be combined with a wide array of products such as:
What’s In The Box
- Qty 1 - KVM Console, Rackmount LCD, 16 Port, 1U, 22.9" Depth
