Description

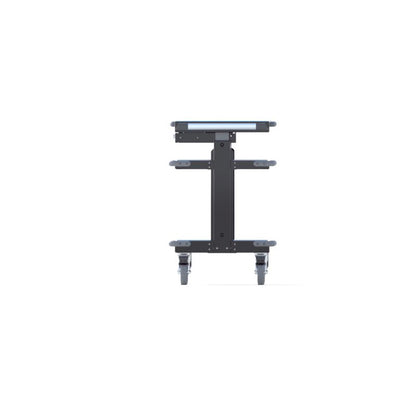

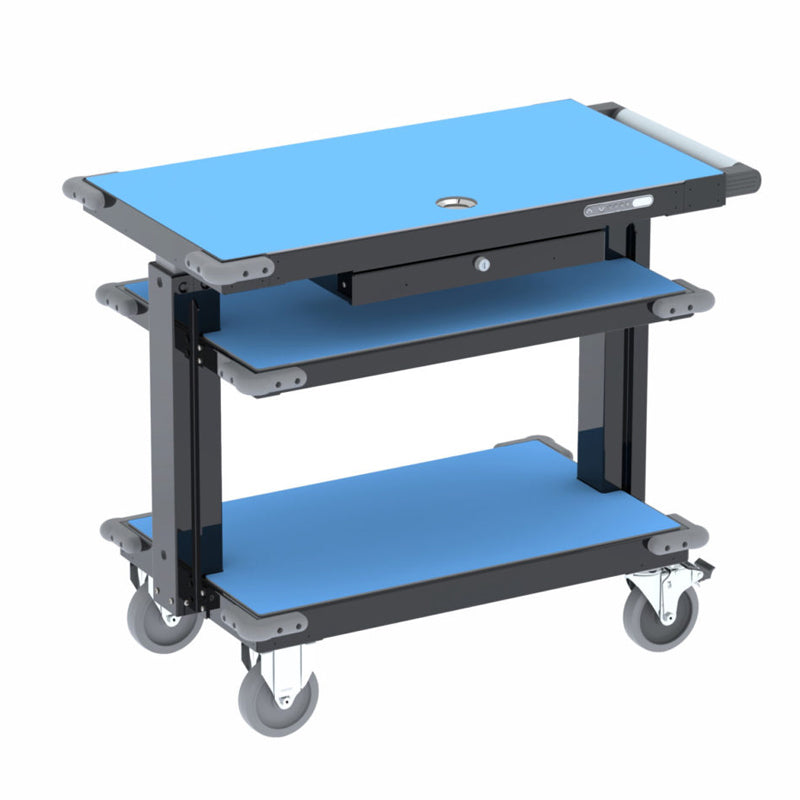

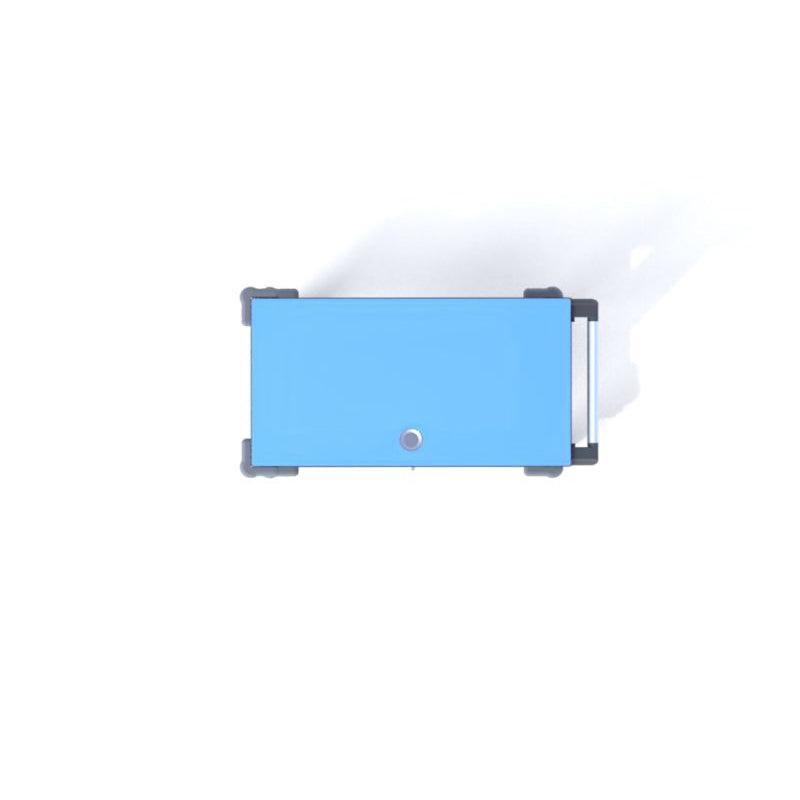

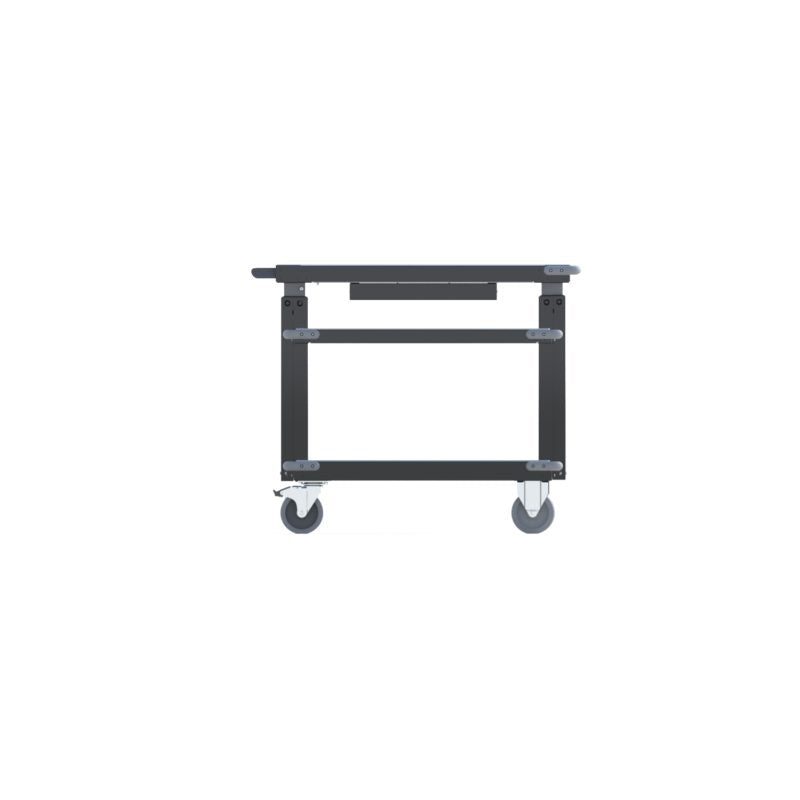

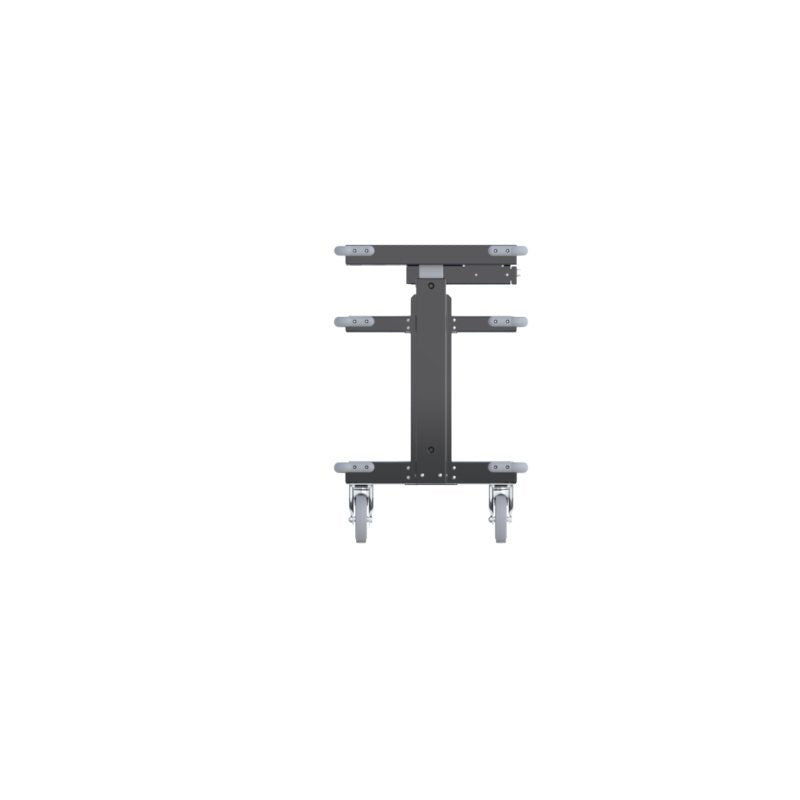

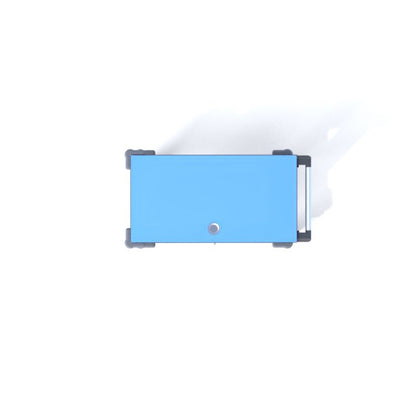

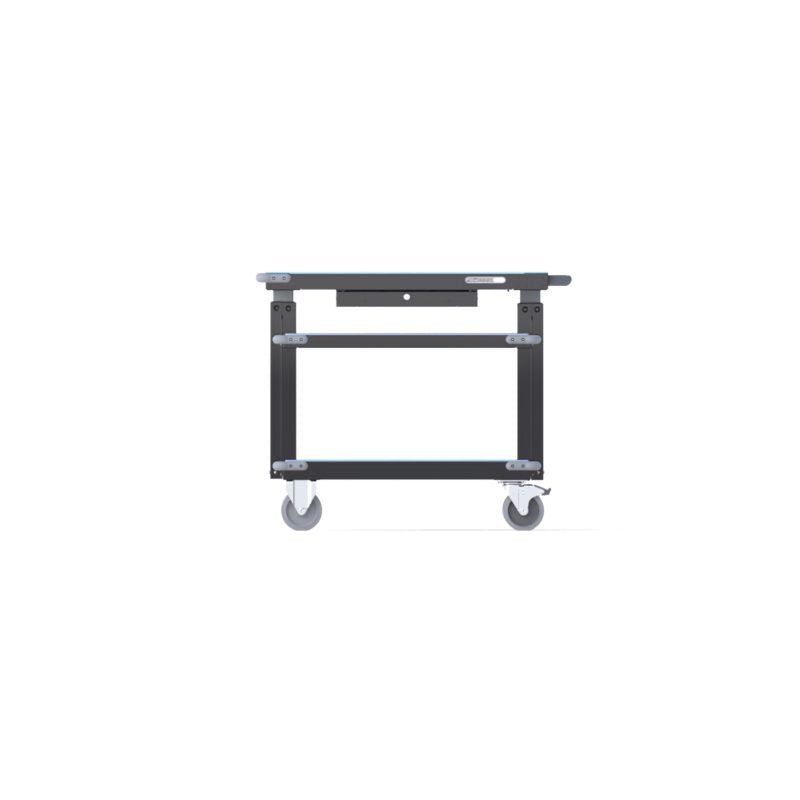

Mobile ESD Cart
Kendall Howard's Electric Variable Height ESD Cart provides technicians in static control environments an ergonomically friendly, ESD Safe, mobile solution for the transportation and maintenance of sensitive Electric components across a multitude of industries. Designed for mobile ergonomics and safety in mind. This cart features Electrically controlled height adjustability between 29" and 54". Lithium-Ion battery and intelligent controllers allow for pre-programmable height settings to quickly satisfy repeat users and applications. The lift column actuators feature anti-collision detection to protect operators and their instruments when actuating downward movement of the work surface.
- Each individual shelf can support up to 200 lbs, up to 500 lbs max load on cart
- Ships fully assembled
- Integrated magnetic tray
- Locking slide out drawer
- Gloss Black powder coat finish offers an easy to clean and a durable surface
- 5 year warranty on the cart electronics
- Limited lifetime warranty
- Manufactured in the USA
- US Patent: 10,881,040
Features
-
Height Adjustable
The top shelf can lower to 29″ and rise to 54″. The lift columns allow the shelf to be set at any variable height between 29″ – 54″.
-
Controller
The controller has three memory settings so that users can more easily adjust the carts height for different jobs. The easy-to-read digital display shows the height of the adjustable top shelf.
-
Casters
The cart is outfitted with two 5″ ESD locking swivel-casters and two non-ESD fixed/rigid casters. The ESD casters are constructed of a carbon infused polymer that allows the cart to operate safely on non-insulated or ESD safe flooring.
-
Ergonomic Handle
The handle is ergonomically friendly and allows users to easily maneuver the carts.
-
Corner Guard Bumpers
The corners of the cart are outfitted with rubber bumpers to prevent damage to the most susceptible areas of the cart. The bumpers will help keep your cart looking in good shape over time.
-
Test Data
Resistance to top/resistance to ground 1.0 x 10^5 – 1.0 x 10^9 Ohms resistance at 70° F & 30% relative humidity.
-
Shelf Versatility
The lower two shelves are fixed; upper shelf is adjustable from 29” – 54”. Each shelf is protected with an ESD mat.
Additional Information
| Mobile ESD Cart |
|---|
|
|
What's in the box
- Qty 1 - Mobile ESD Cart
