Network Cable Tester and TDR
Network Cable Tester and TDR
BY Jonard Tools
Regular price
$199.95 USD
Regular price
Sale price
$199.95 USD
Unit price
/
per
SKU: SKU: NPNB_TDR-100
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full detailsDescription
Features
Specifications
What's In The Box
Description

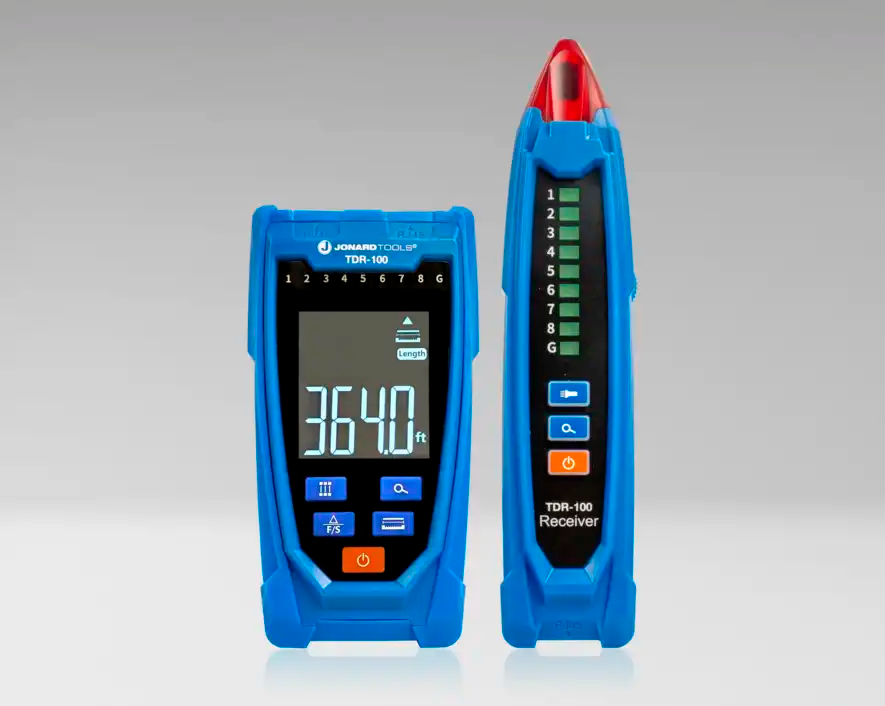

Network Cable Tester and TDR
The TDR-100 Cable Tester and TDR is an essential tool for network engineers, IT professionals, or anyone troubleshooting or maintaining network infrustructure. This tester allows you to find the length of network cables up to 1,312 ft (400 m) long, identify breakpoints, test wire pairs, and trace cables.
Features
- TDR function measures cable length and detects breakpoints from 6.6 ft to 1,312 ft
- Wire Pair Mapping tests cable for line sequence, opens, shorts, wrong pairs, and reverse connections
- Cable Tracing uses the tester as a tone generator and probe for tracing cables
- 2.5" color LCD screen and built-in flashlight in the probe for use in dark areas
Specifications
| SPECIFICATIONS | |
| Cable Length | 6.6 ft – 1312 ft (2 m – 400 m) |
|---|---|
| Working Temperature | 0~40°C |
| Storage Temperature | -10~50°C |
| Application | Cable Length Measurement, Wire Tracing, Continuity |
| Cable Type | Data/Network |
| Batteries | 6 × 1.5V AAA Alkaline |
| Connection & Adapter Types | RJ45 |
| Display | Backlit LCD |
| Dimensions | 9.3 in × 7.5 in × 3.5 in (23.62 cm × 19.05 cm × 8.89 cm) |
| Weight | 2 lb (907.18 g) |
| UPC # | 810132438141 |
What's In The Box
- Qty 1 – TDR‑100 Cable Tester & Time-Domain Reflectometer
- Qty 1 – Test Probe
- Qty 1 – RJ45 Adapter Cable
- Qty 1 – Pair of Alligator Clips

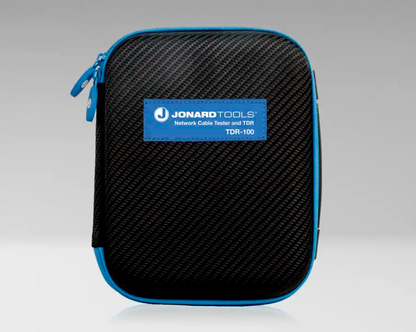

- Qty 1 – Carrying Case
- Qty 1 – Set of (6) AAA Batteries
