Plastic Split Insulating Bushing for EMT
Plastic Split Insulating Bushing for EMT
BY Arlington
SKU: SKU: EMT200S
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details
Some items may require minimum order quantities which can be changed in your shopping cart.

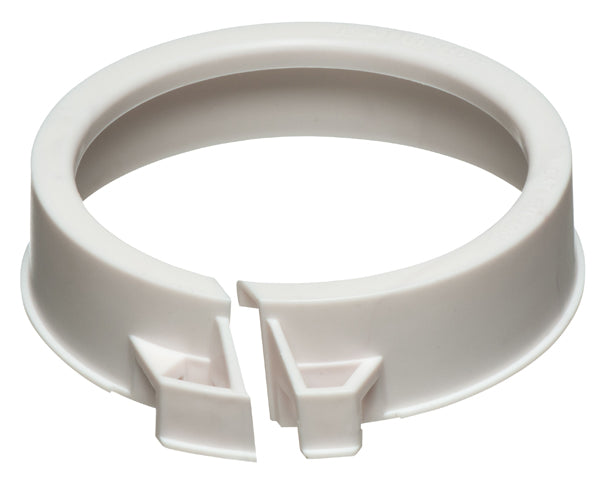

Plastic Split Insulating Bushing

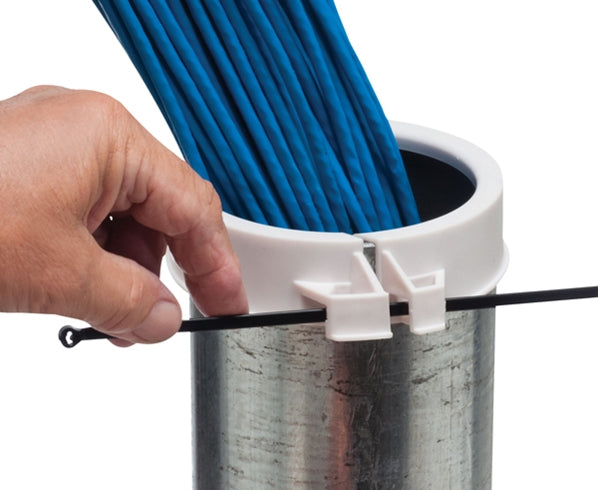

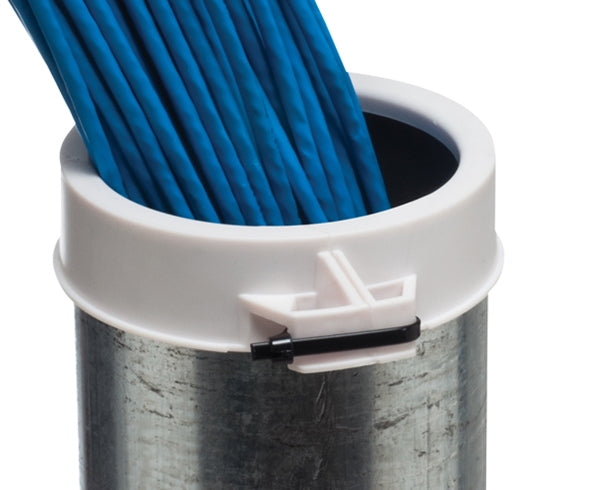

Our plastic split insulating bushings protect cable from abrasion when using EMT, Rigid, IMC or PVC rigid conduit. This insulating bushing is split to allow for easy installation when cables are already in place. To install this product you simply press it onto the conduit and secure it tightly with a cable tie. When used for cable protection only, these insulating bushings are a perfect substitution for costly fittings.
Features
- For EMT, Rigid, IMC, and PVC conduit
- Listed for use in environmental air handling spaces per NEC 300-22(c)
- Meets NEC 300-15(c) protection requirements
- Protects cables from abrasion at conduit terminations
- Split design for easy installation on existing cable runs
- Press fit design holds firmly in place when pulling cables
- No threading required - simply press onto conduit end
- Cable tie included for secure installation
- Versatile, fast, easy installation
- Non-metallic construction won't corrode
- Temperature rated -25°C to 105°C (-13°F to 221°F)
- UL/CSA Listed
- Made in USA
Product Quality
Listed for use in environmental air handling spaces per 2014 NEC requirements 300-22(c). Meets 2014 NEC requirements for 300-15(c) protection. Arlington's non-metallic split insulating bushings protect cable from abrasion when using EMT, Rigid, IMC or PVC rigid conduit.
Items | Dim A | Dim B | Dim C |
EMT200S | 10.875 | 7.875 | 7.375 |
EMT250S | 10.875 | 7.875 | 7.375 |
EMT300S | 10.875 | 7.875 | 7.375 |
EMT350S | 11 | 7.875 | 10.875 |
EMT400S | 11 | 7.875 | 10.875 |
What’s In The Box
- Qty 1 pack - Plastic Split Insulating Bushing for EMT
