PLC Fiber Splitter, Blockless Type, Single Mode, 900um
The Blockless PLC Splitter is a high-performance optical power distribution device designed for FTTx, PON, and ODN networks, offering stable signal transmission, low insertion loss, and wide wavelength compatibility (1260nm–1650nm). Built with a quartz-based waveguide, it ensures exceptional reliability and uniform optical signal splitting, making it ideal for fiber optic splice closures, distribution boxes, and optical cabinets. Available in various configurations (1x2, 1x4, 1x8, 1x16), it enables seamless GPON/EPON network expansion, allowing a single OLT port to connect multiple subscribers efficiently. Its compact, blockless design ensures easy deployment, while compliance with GR-1209-CORE-2001, GR-1221-CORE-1999, and RoHS standards guarantees durability and environmental safety, making it a cost-effective solution for high-speed fiber networks.
Features
- Integrated quartz waveguide for precise and efficient optical signal splitting
- Broad Operating Wavelength Range ensures stable performance across various network applications.
- Reliable and uniform signal splitting delivers consistent optical power distribution with minimal signal loss

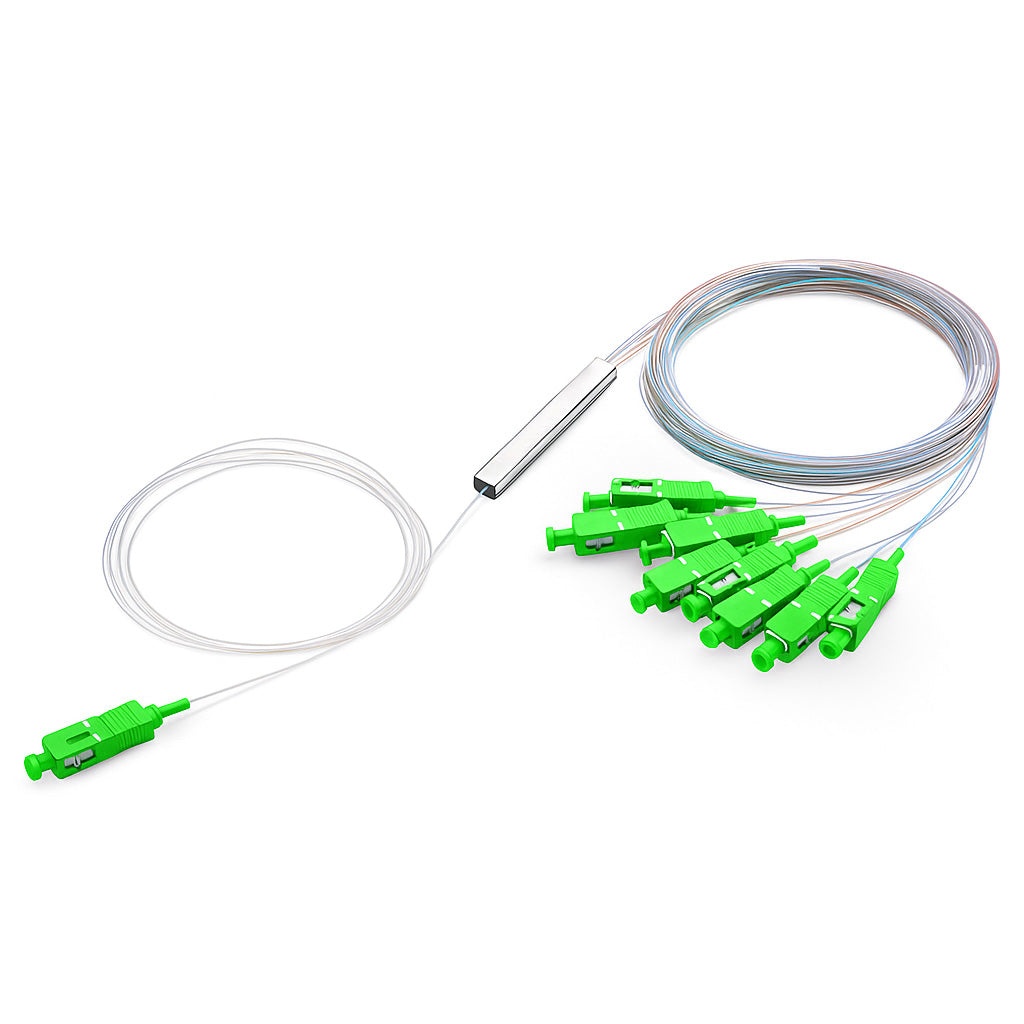

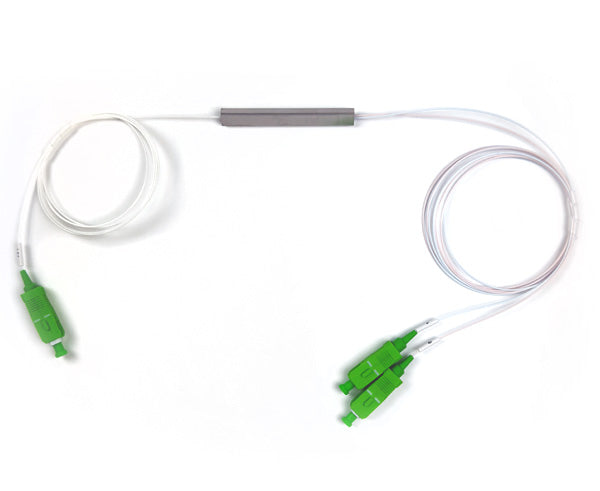

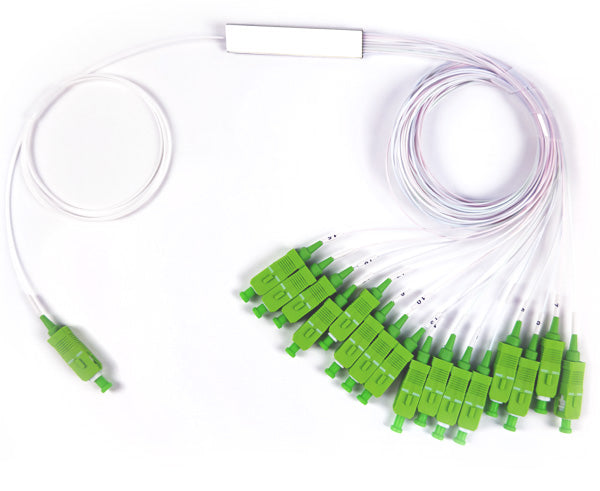

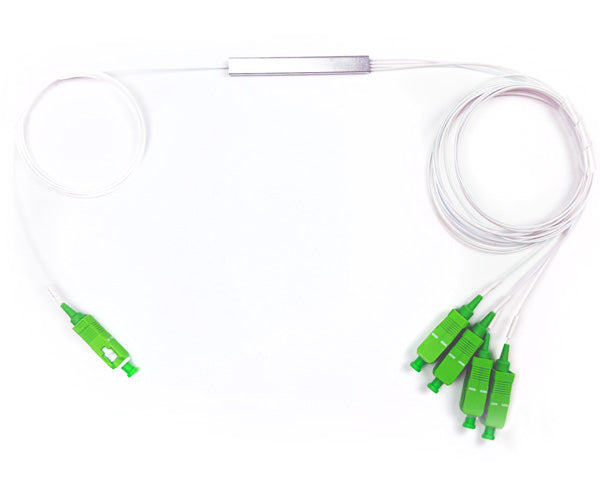

- Available in 1x2, 1x4, 1x8, 1x16
- Low insertion loss for efficient optical performance
- Industry-standard compliance meets ROHS, GR-1209-CORE-2001, and GR-1221-CORE-1999 requirements for quality and reliability.
Specifications
Cable Information | |
Fiber type | G657A1 |
Pigtail Cable | 900um |
Connector Type | SC / APC |
Specification | ||||
Configuration Type | 1x2 | 1x4 | 1x8 | 1x16 |
Insertion Loss | 4.1/4.4dB | 7.4/7.9dB | 10.5/11.0dB | 13.8/14.1dB |
Uniformity | 0.6dB | 0.7dB | 0.8dB | 1.0dB |
Polarization Dependent Loss | 0.2dB | 0.2dB | 0.2dB | 0.3dB |
Operation Wavelength | 1260~1650nm | |||
Return Loss | 60(APC)dB | |||
Directivity | ≥55dB | |||
Operating Temperature | -40~+85°C | |||
Storage Temperature | -40~+85°C | |||
Operating Humidity | ≤93%RH | |||
Storage Humidity | ≤93%RH |
What's in the Box
- Qty 1 – Blockless PLC Fiber Splitter Module
