Application Gun - Tool-250
Mixing Nozzle - Polywater® Mixing Nozzle
Description
Restore the integrity of damaged wood utility poles to maximize their life expectancy with woodpecker hole filler.
Polywater UPR-PR and UPR-NF (no flow) woodpecker hole repair kits make it easy to repair woodpecker damage, cracks, and pole line hardware holes on wood utility poles and cross arms, including sealing the pole top barrier. The resin and hardener of Polywater’s utility pole foam are specially formulated to expand and fill irregular-shaped cavities protecting poles from rot and returning them to a secure condition. UPR-NF woodpecker hole filler is formulated to thicken immediately and increase in viscosity as it expands, which decreases leaking out of cracks and crevices while speeding up application.
Polywater® UPR™ | Wood Utility Pole Repair
- Fills and seals woodpecker cavities to prevent pole rot
- Foam completely fills irregular-shaped cavities— expands above primary hole and needs no pilot hole
- Integrates with wood and expands in between fibers
- Cures to the strength of wood poles
Features
Features
-
EXPANDS Utility pole foam completely fills irregular-shaped cavities—expands above primary hole and needs no pilot hole
-
ADHERES Integrates with wood and expands in between fibers
-
HARDENS Cures to the strength of wood poles
-
GAFFABLE Safely holds climbing spikes or gaffs
-
QUICK MIXING Two-part formula mixes in nozzle when applied during installation
-
EFFICIENT Deploy with a standard, high ratio caulking gun—no special tool required
Product Notes
- Poles must be inspected and tested before climbing per OSHA 1910.269 App D. Repairs made with Polywater’s utility pole foam satisfy OSHA requirements and reduce the likelihood of decay.
- Compressive strength is similar to Southern Yellow Pine and Douglas Fir tested by ASTM D1691.
- Repels moisture. Absorbs less than 1% water after aging for 7 days at 122°F (50°C)
- Seals are gaffable. The load to penetrate the UPR seal was measured with a pole cut out test using a Buckingham gaff. Values fall within the same range as Southern Yellow Pine and Douglas Fir.
- In Service Temperature Use Range: -40°F to 150°F (-40°C to 66°C)
- Can be injected directly into a woodpecker hole, no need to drill an extra pilot hole.
- Expands to fill all crevices and to the top of the woodpecker hole.
Specifications
| TECHNICAL SPECIFICATIONS UPR‑NF | |
|---|---|
| UPR NF | 905 PSI (625 N/CM²) |
| SOUTHERN YELLOW PINE | 910 PSI (630 N/CM²) |
| DOUGLAS FIR | 760 PSI (525 N/CM²) |
| COMPONENT PROPERTIES | |
| COLOR (PART A RESIN / PART B CURING AGENT) | AMBER / BROWN |
| FORM (PART A / PART B) | LIQUID 200–250 CPS / LIQUID 1050 CPS |
| VOC CONTENT (PART A / PART B) | 0 G/L / 0 G/L |
| SPECIFIC GRAVITY (PART A / PART B) | 1.22–1.23 / 1.00 |
| CURE RATE — UPR NF NO FLOW | |
| 40°F (4°C) | COMPLETE EXPANSION: 4–6 MIN HARDENED STRUCTURE: 8–10 MIN |
| 70°F (21°C) | COMPLETE EXPANSION: 3–5 MIN HARDENED STRUCTURE: 3–5 MIN |
| TECHNICAL SPECIFICATIONS UPR‑PR | |
|---|---|
| UPR PR | 1500 PSI (1035 N/CM²) |
| SOUTHERN YELLOW PINE | 910 PSI (630 N/CM²) |
| DOUGLAS FIR | 760 PSI (525 N/CM²) |
| COMPONENT PROPERTIES | |
| COLOR (PART A RESIN / PART B CURING AGENT) | AMBER / BROWN |
| FORM (PART A / PART B) | LIQUID 200–250 CPS / LIQUID 1050 CPS |
| VOC CONTENT (PART A / PART B) | 0 G/L / 0 G/L |
| SPECIFIC GRAVITY (PART A / PART B) | 1.22–1.23 / 1.02 |
| CURE RATE — UPR PR | |
| 40°F (4°C) | COMPLETE EXPANSION: 8–9 MIN HARDENED STRUCTURE: 15–18 MIN |
| 70°F (21°C) | COMPLETE EXPANSION: 4–5 MIN HARDENED STRUCTURE: 7–9 MIN |
Additional Information
| Product Videos | |
|---|---|
POLYWATER® UPR™ WOOD UTILITY POLE REPAIR |
HOW TO REPAIR WOOD UTILITY POLES FROM WOODPECKER DAMAGE |
UTILITY POLE REPAIR SOLUTION |
|
What's in the Box
What’s in the Box
- Qty 1 - Polywater® UPR™ Wood Utility Pole Repair, Asset Maintenance Solutions
| UPR POLE REPAIR PRODUCT CATALOG | ||
|---|---|---|

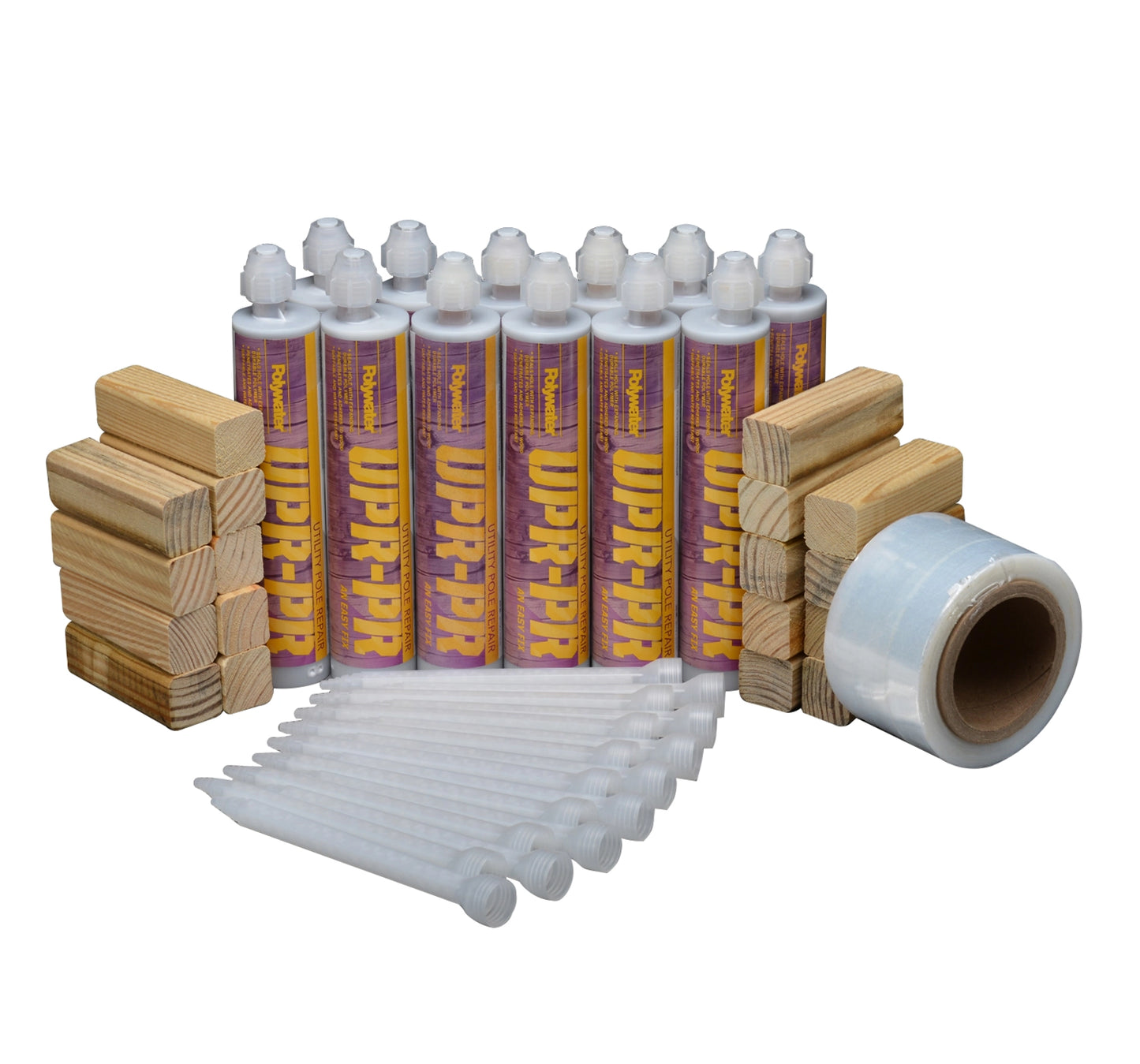

| UPR-PRKIT3 | 3 – 250-ml UPR™ Pole Repair cartridges 4 mixing nozzles 5 green-treated wood blocks 1 roll of stretch wrap 1 pair of gloves Instructions |
1 |
| UPR-PRKIT12 | 12 – 250-ml UPR™ Pole Repair cartridges 16 mixing nozzles 18 green-treated wood blocks 1 roll of stretch wrap 4 pair of gloves Instructions |
1 |
| UPR-NFKIT4 | 4 – 250-ml UPR™ No Flow Pole Repair cartridges 6 mixing nozzles 1 roll of stretch wrap 1 pair of gloves Instructions |
1 |
| UPR-NFKIT12 | 12 – 250-ml UPR™ No Flow Pole Repair cartridges 18 mixing nozzles 1 roll of stretch wrap 3 pair of gloves Instructions |
1 |
| UPR-NF6B10 | 10 – 600-ml UPR™ No Flow Pole Repair cartridges 10 mixing nozzles 1 roll of stretch wrap 3 pairs of gloves Instructions |
1 |
| UPR-NF250PT1 | 2 – 250-ml UPR™ No Flow Pole Repair cartridges 1 18-in x 18-in / 46-cm x 46-cm canvas 50 1/2-in / 13-mm staples 1 pair of gloves Instructions |
1 |
| TOOL-250 | High ratio caulking gun | 1 |
