Description
Create strong, watertight and airtight bonds with HDPE conduit glue.

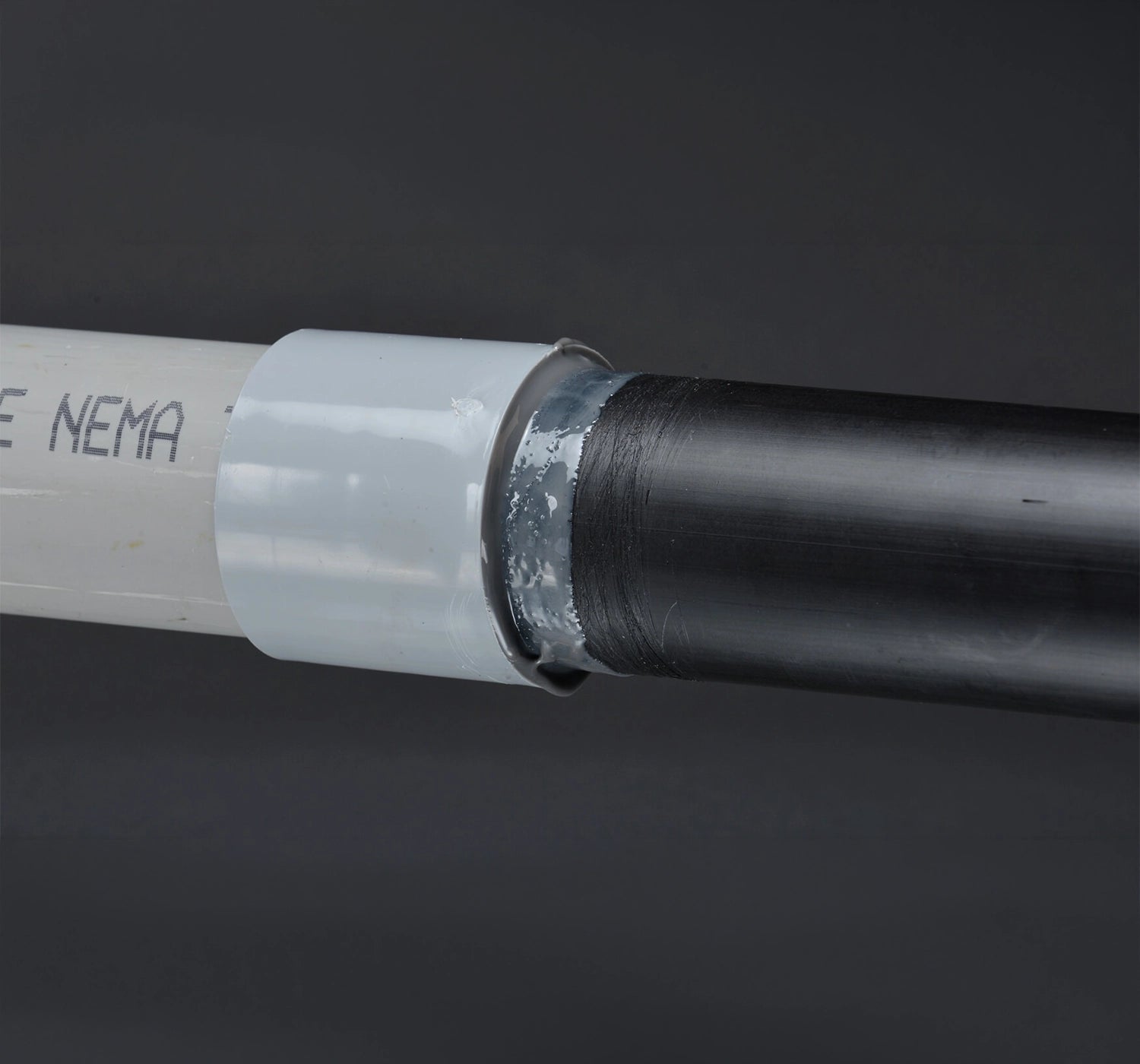

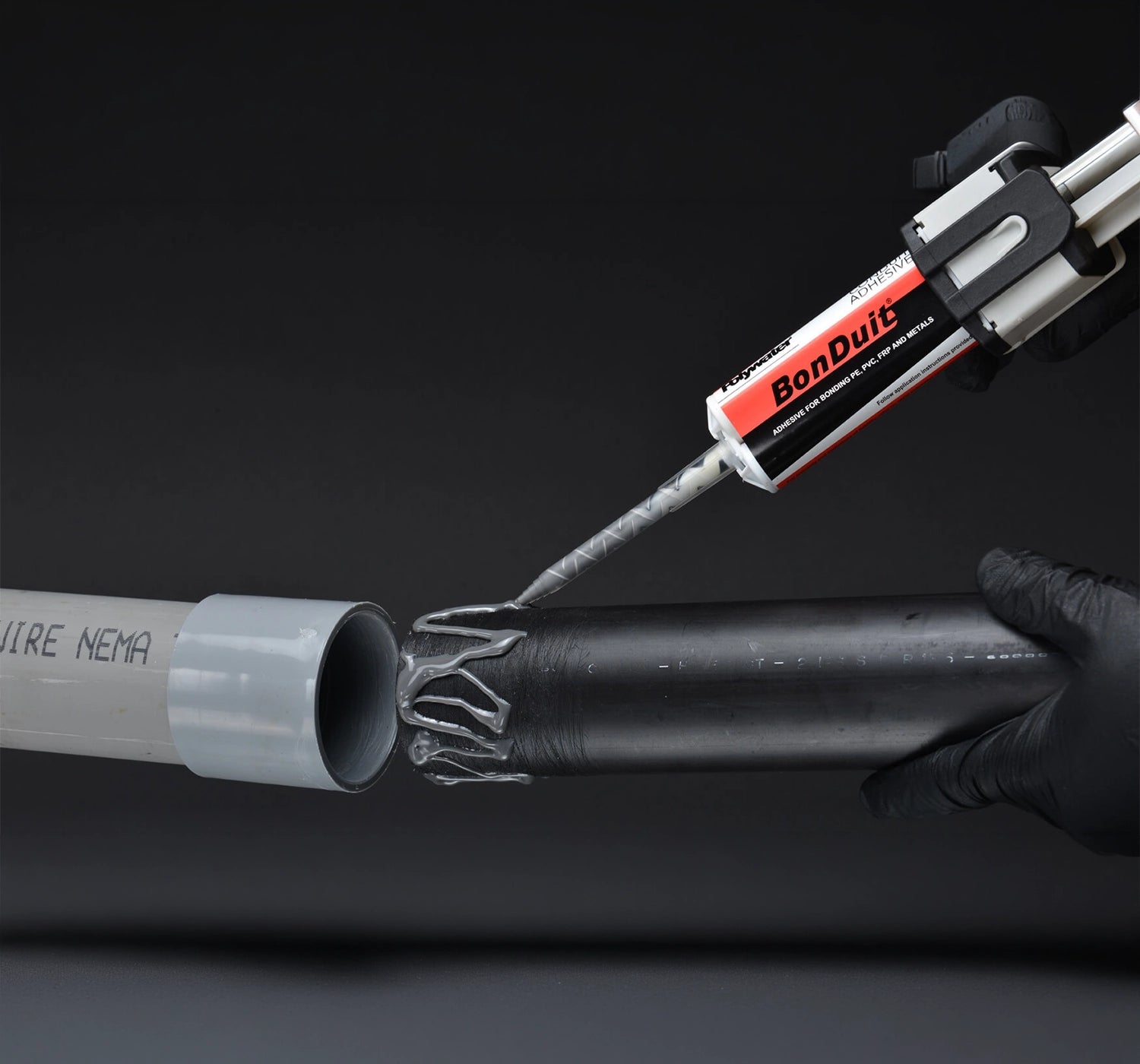

Polywater® BonDuit® conduit glue joins polyethylene duct (PE pipe) to PVC, fiberglass, or metal conduits. This HDPE adhesive offers a superior, easy-to-apply alternative to joining conduits using mechanical couplings. The rapid-cure, two-part resin adhesive forms a strong watertight and airtight seal. Polywater BonDuit® XL provides an excellent option for 3-inch (75 mm) conduits and larger and helps you to meet the NEC code for transitioning above ground and to PVC or galvanized rigid steel. This conduit glue can be used in indoor and outdoor projects. Both HDPE adhesive kit types deliver a durable bond that can withstand movement and vibration, and are ideal for installation along roadsides or near electrical equipment like transformers or switchgear.
Polywater® BonDuit® and BonDuit® XL Conduit Adhesive
- Bonds HDPE to PVC, rigid steel, fiberglass conduits and composites
- Creates airtight and watertight splices
- Bonds are durable with high tensile strength
- Suitable for cable blowing applications
Features
Features
-
VERSATILE Bonds HDPE to PVC, rigid steel, fiberglass conduits, and fittings and transition couplings
-
SUPERIOR Stronger pullout strength than most mechanical couplings
-
FAST, EASY, AND LONG-LASTING Bonds with high strength within an hour and requires no special training
-
COST EFFECTIVE Less expensive than mechanical couplings
-
CONVENIENT Both HDPE adhesive kits contain all application components required for a quick installation
-
DURABLE Chemically resistant to salt water, alkaline soap solutions, mineral spirits, and oil
Product Notes
- BonDuit and BonDuit XL are UL recognized conduit glues and pass UL Method 746, “Polymeric Adhesive System for Indoor and Outdoor Use with Electrical Equipment”.
- BonDuit XL enables coupling of ducts measuring 3-inches (75 mm) and above providing an extremely economical choice. Can be used as a mechanical coupling for conduit diameters higher than 5-inches (125 mm).
- BonDuit has a slightly longer set time versus BonDuit XL.
Will withstand 120 psi (8.3 bar) continuous pressure.
- Meets NEC 352.48, 353.48, and 355.48 for joining PVC, HDPE Polyethylene, and RTRC fiberglass conduit. Perfect products for the transition from underground HDPE pipe to aboveground connections. PVC pipe cement does not bond HDPE (NEC code 353.12.1)
Specifications
| ADHESIVE SHEAR STRENGTH | |
|---|---|
| CONDUIT DIAMETER | PULLOUT FORCE |
| 1 inch (2.5 cm) | 724 lbf (3.22 kN) |
| 1½ inch (4 cm) | 1,233 lbf (5.48 kN) |
| 2 inch (5 cm) | 2,025 lbf (9.01 kN) |
| 4 inch (10 cm) | 5,333 lbf (23.72 kN) |
| COMPONENT PHYSICAL PROPERTIES | ||
|---|---|---|
| PROPERTY | PART A | PART B |
| Color | Dark grey/black | White/light yellow |
| Form | Paste | Paste |
| Odor | No odor | Slight sulfur odor |
| VOC | 0 g/L | 0 g/L |
| Specific gravity | 1.2 | 1.2 |
| CURED RESIN PROPERTIES | |
|---|---|
| PROPERTY (7 DAY CURE, 70°F) | RESULT |
| Color | Grey |
| Peak exotherm @ 70ºF (21°C) | <200ºF (<95°C) |
| Hardness (Shore D Durometer) | 78–88 |
| Flexibility (ASTM D790) | > 2% |
| Dielectric strength (ASTM D149) | 450 Volts/Mil (nonconductive) |
| Airtight (continuous) | 120 psi (8.3 bar) |
| ENVIRONMENTAL RESISTANCE |
|---|
| OPERATING TEMPERATURE |
| -31°F TO 140°F (-35°C TO 60°C) |
| CHEMICAL RESISTANCE | |
|---|---|
| CHEMICAL EXPOSURE | % CONTROL |
| Salt water (4%) | 85% (Pass) |
| Alkaline soap solution (pH 12) | 100% (Pass) |
| Odorless mineral spirits | >100% (Pass) |
| CURE RATE | ||
|---|---|---|
| TEMPERATURE | WORK TIME | SET TIME |
| 35°F (2°C) | 40 min (XL 80 min) | 7 hrs |
| 52°F (11°C) | 20 min (XL 40 min) | 3½ hrs |
| 60°F (16°C) | 10 min (XL 20 min) | 1½ hrs |
| 70°F (21°C) | 6 min (XL 12 min) | 60 min |
| 88°F (31°C) | 4 min (XL 8 min) | 40 min |
Additional Information
| Product Videos | |
|---|---|
POLYWATER® BONDUIT® CONDUIT ADHESIVE INSTRUCTIONS |
POLYWATER® BONDUIT® CONDUIT ADHESIVE OVERVIEW VIDEO |
POLYWATER® BONDUIT XL® INSTALLATION VIDEO |
POLYWATER® BONDUIT® BT50 INSTALLATION VIDEO |
| PROP 65 STATEMENT | |
|---|---|
| WARNING: This product can expose you to 2-(phenoxymethyl)-oxirane which is known to the state of California to cause cancer, and 4,4’-(1-methylethylidene)bis-phenol which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.p65warnings.ca.gov. WARNING: This product can expose you to chemicals including sulphuric acid, nitrilotriacetic acid, which is/are known to the State of California to cause cancer. For more information, go to www.p65warnings.ca.gov. |
What's in the Box
What’s in the Box
- Qty 1 - Polywater® BonDuit®, Conduit Adhesive KIT.
| PRODUCT CATALOG SPECIFICATIONS | ||
|---|---|---|
| SKU # | PACKAGE DESCRIPTION | UNITS/CASE |

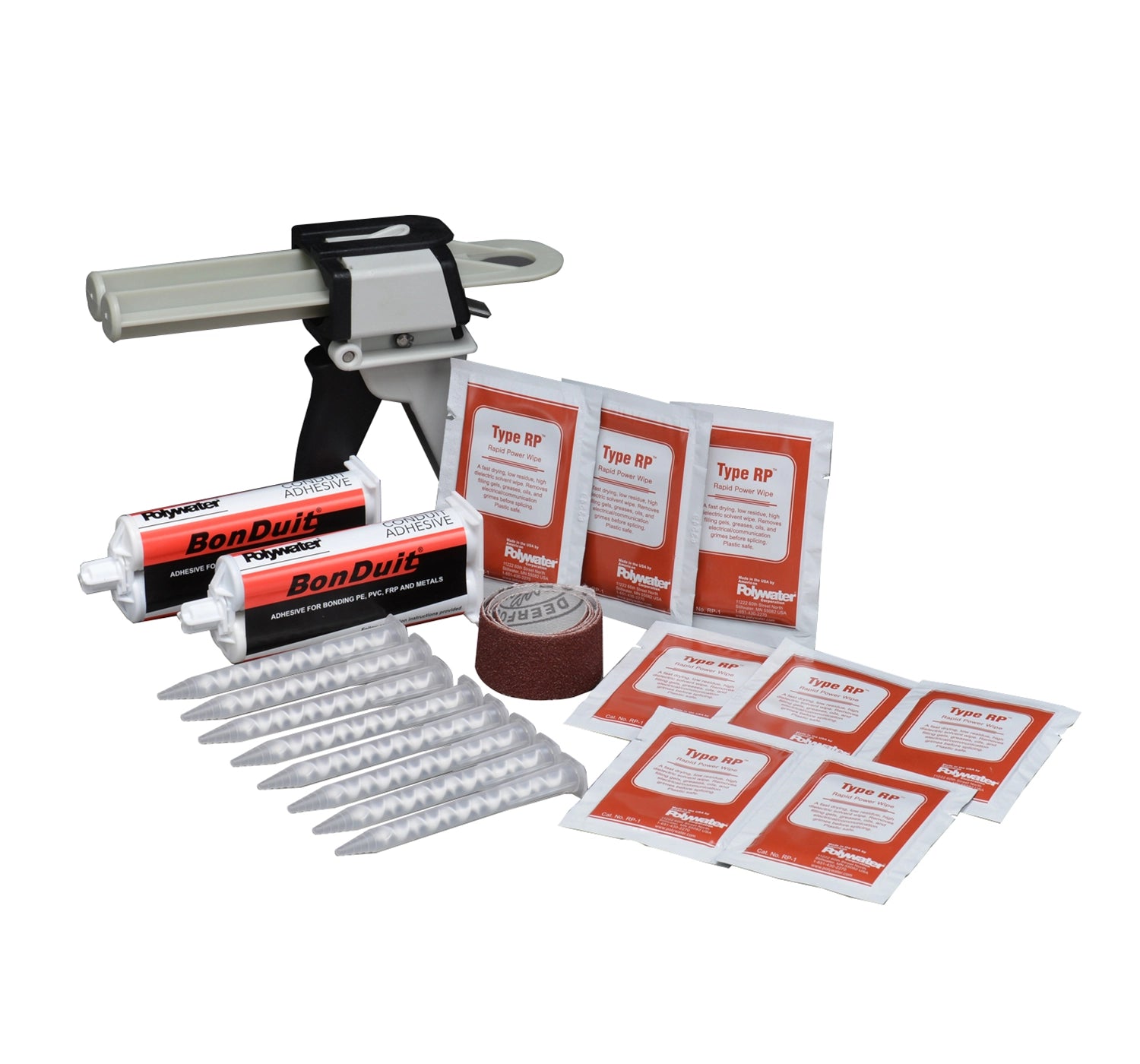

| BT-KITG* | 2 adhesive cartridges, 8 mixing nozzles, 1 strip of sanding cloth, 8 Type RP™ cleaning wipes (cat #RP-1), 1 dispensing tool *Sold in the US only |
1 |

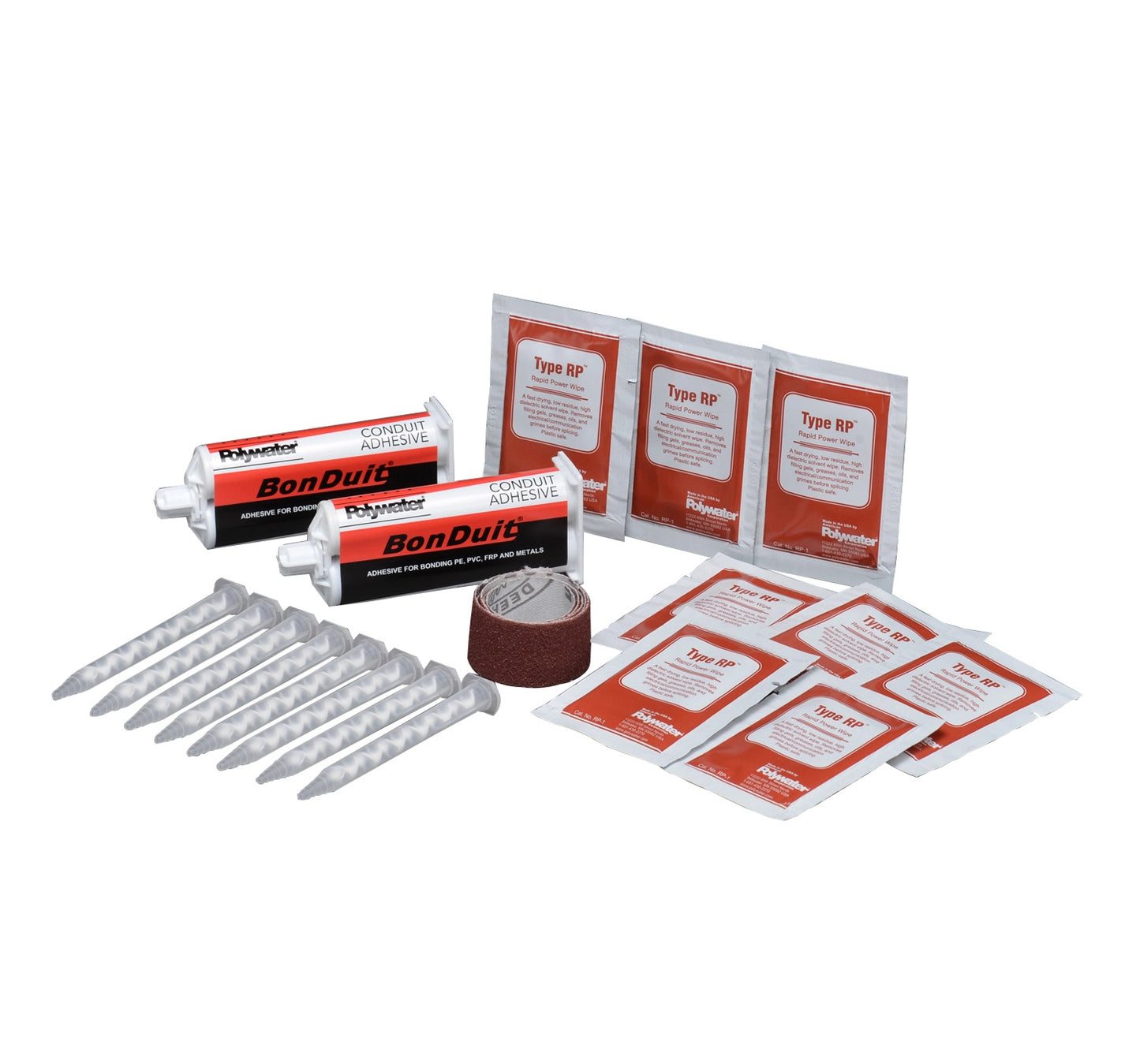

| BT-KIT | 2 adhesive cartridges, 8 mixing nozzles, 1 strip of sanding cloth, 8 Type RP™ cleaning wipes (cat #RP-1) | 1 |
| BT-KITB6G* | Bulk package of 6 BT-KIT with 1 dispensing tool *Sold in the US only |
1 |
| BT-KITB6 | Bulk package of 6 BT-KIT | 1 |
| BT-CART12PK | 12 adhesive cartridges, 36 mixing nozzles | 1 |
| TOOL-50-11 | 1 dispensing tool | 1 |

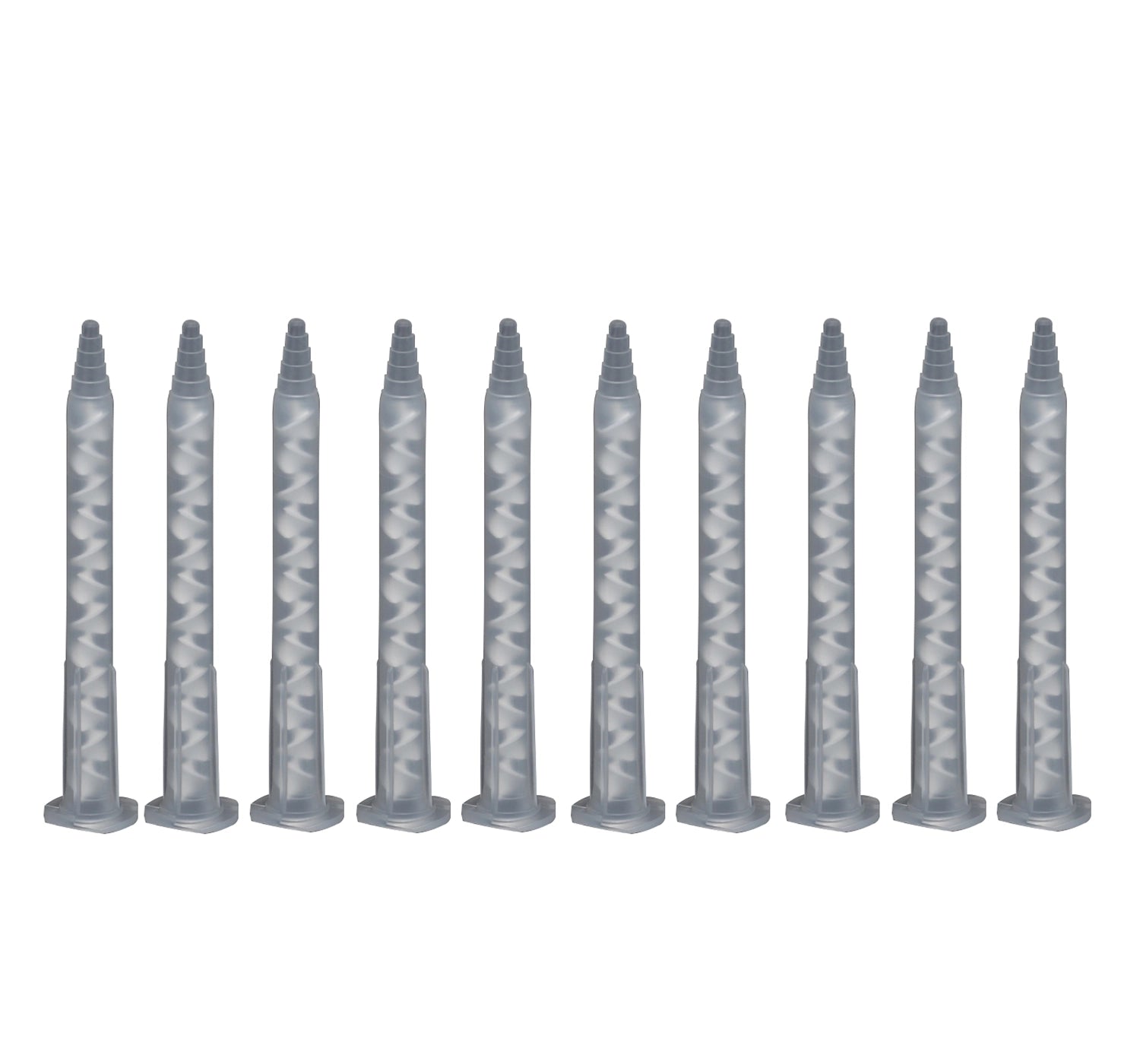

| MXR-12T-10 | 10-pack of mixing nozzles for the 50-mL cartridge | 1 |

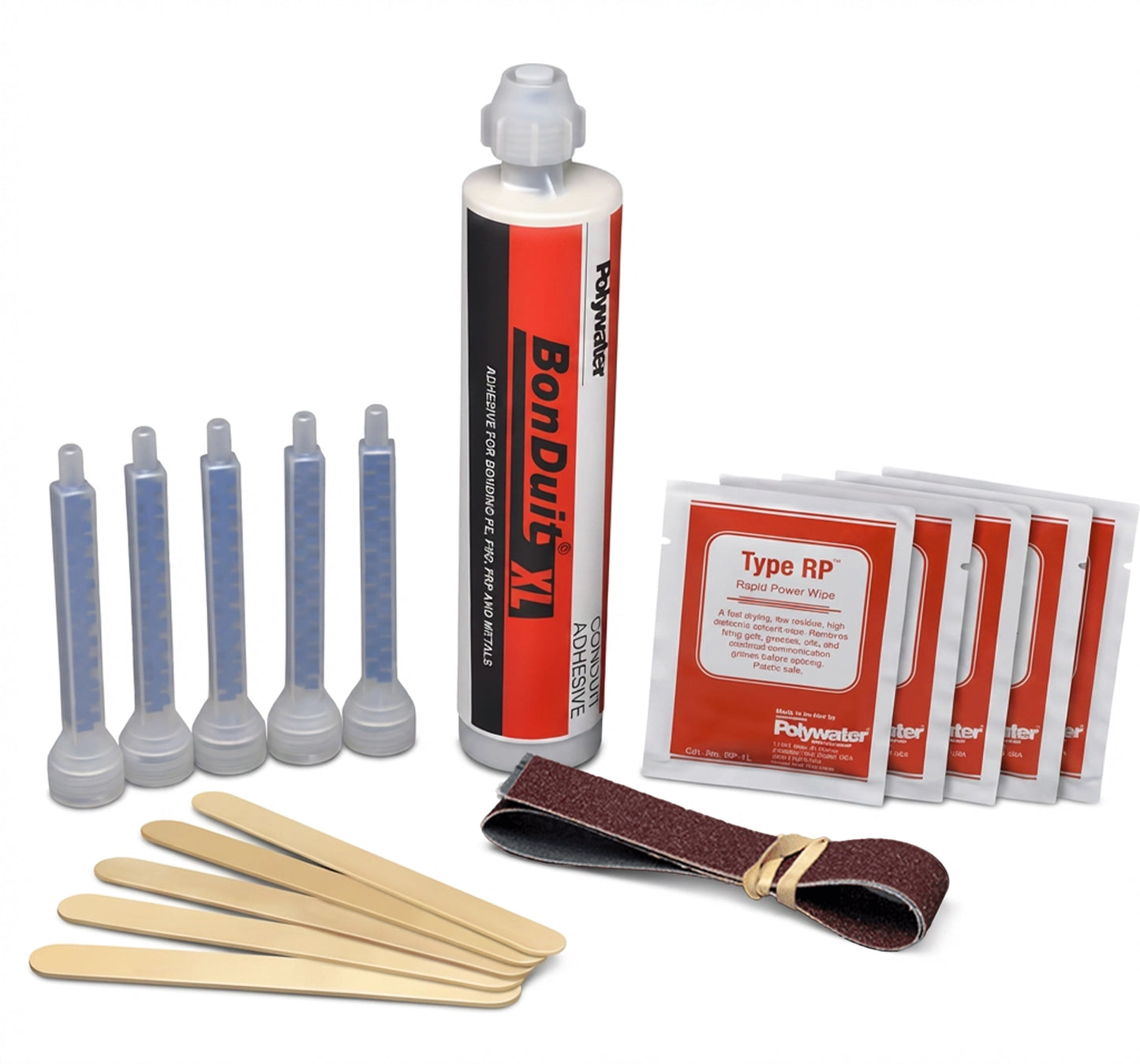

| BTXL-250KIT1 | 1 BTXL 250-mL cartridge, 5 Mixing nozzles, 5 Pairs of gloves, Sandpaper 24-in / 60-cm 80-grit, 5 RP-1L, Instructions | 1 |

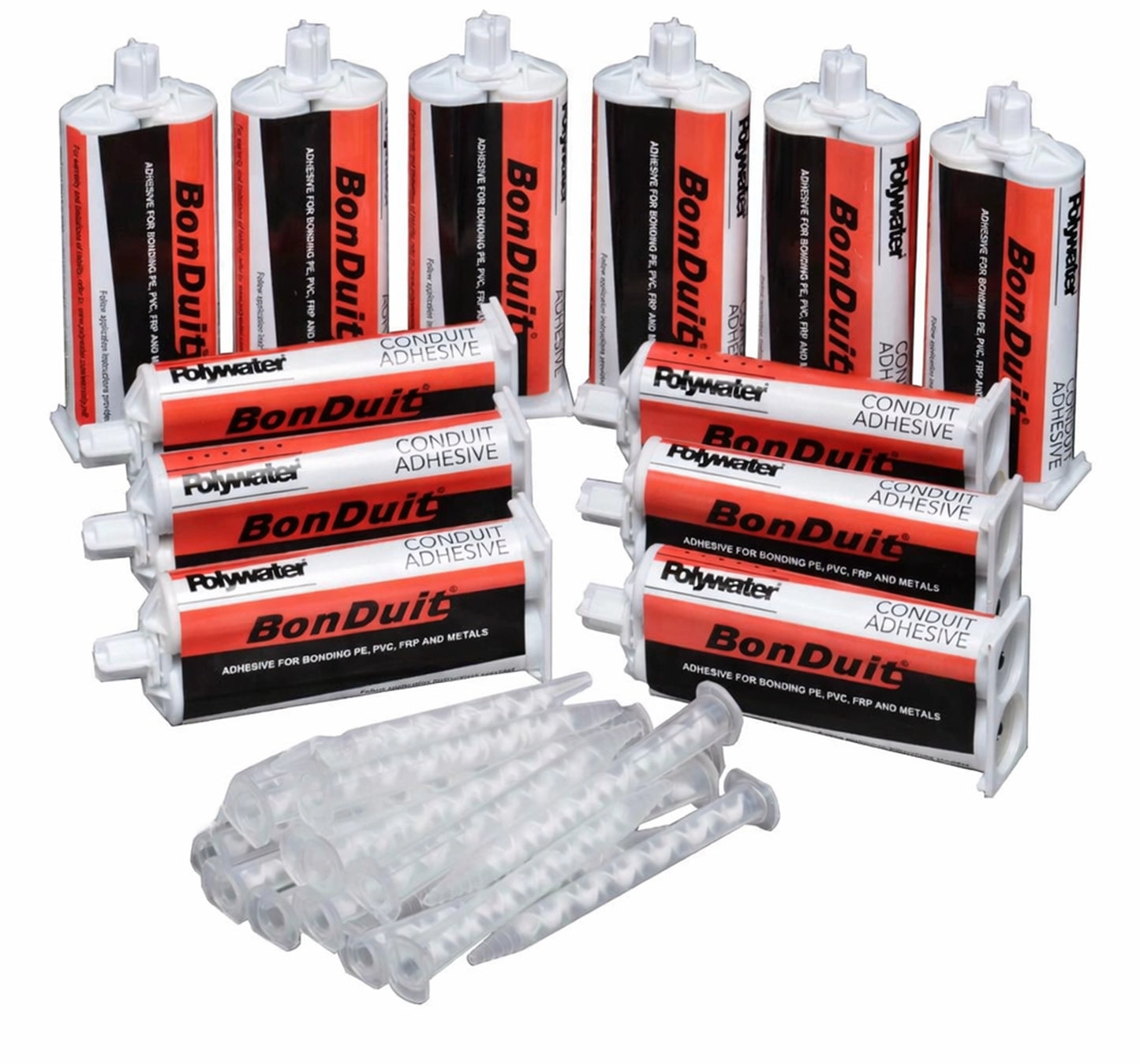

| BTXL-250CART12 | 12 cartridges and static mixers | 1 |
| BTXL-250KITB6 | 6 BTXL-250KIT1 | 1 |
| TOOL-250 | 1 – high-ratio caulking gun for the BTXL Cartridge | 1 |
| RP-1 | Type RP™ 5-in x 8-in / 12-cm x 20-cm pre-treated cleaning wipe | 96 |
