Application Gun - Tool-50-11
Description
A safe and convenient air leak sealant that helps extend the life of pressurized cable infrastructure.

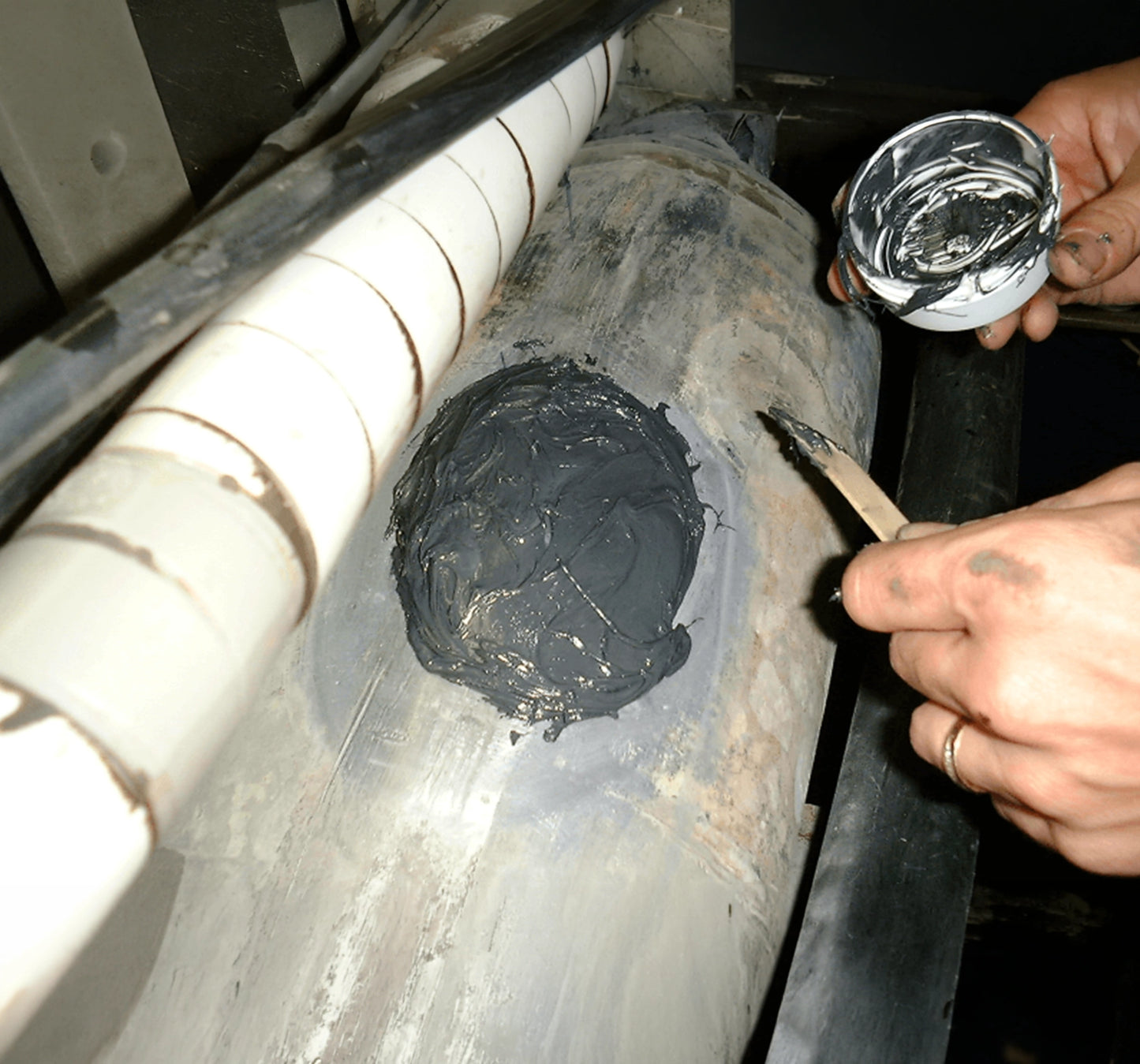

Polywater® AirRepair® is a safe, fast, and effective air leak repair system that eliminates the need for messy and dangerous molten lead “hot wipe” repair of pressurized telephone cables and splices. It is a two-part, rapid-cure, resin air leak sealant system that stops air leaks in lead-sheathed cables and splice enclosures, polyethylene cable jackets, load coils, and end-plates. The cured resin of this pressurized cable leak repair system maintains a high level of adhesion and structural integrity to ensure a long-lasting, quality repair.
Polywater® AirRepair® Air Leak Repair System | PRESSURIZED LEAK REPAIR SYSTEM
- Seals air leaks in lead-sheathed cables, splice enclosures, and polyethylene cable jackets
- Eliminates hot lead wiping for improved safety and convenience
- Withstands environmental extremes with a permanent, long-lasting seal
Features
Features
-
SAFE Eliminates hot lead wiping for improved safety and convenience
-
MULTIPLE USES Seals air leaks in lead-sheathed cables, splice enclosures, polyethylene cable jackets, load coils, end-plates, and more
-
FAST CURE Ready for pressurization within 15 minutes
-
DURABLE Withstands environmental extremes with a permanent, long-lasting seal
-
EASY Dripless material is simple to apply in hard-to-reach areas
-
ECONOMIC Faster than hot lead wiping, a single craftsperson only needs minimal training
Product Notes
- One air leak repair kit contains enough material to seal a leak of approximately 6-square inches (39-cm²).
- Chemically resistant to contaminants commonly found in vaults. Vertical Sag: Paste clings to vertical surfaces and other difficult angles common in field repairs. Once applied, it stays in place.
- Polywater AirRepair Sealant is provided in a kit customized to end-user needs. The pressurized cable leak repair kit contains the preparation and patching materials necessary to repair air leaks in polyethylene and lead-sheathed cables and splice enclosures. Components typically include sealant, putty, cleaning wipes, abrasive cloth, mixing and application tools, gloves, primer (for polyethylene applications), and detailed instructions.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| COMPONENT PROPERTIES | |
| COLOR (PART A RESIN / PART B CURING AGENT) | BLACK / WHITE |
| FORM (PART A RESIN / PART B CURING AGENT) | THICK PASTE / THICK PASTE |
| VOC CONTENT (PART A / PART B) | 0 G/L / 0 G/L |
| SPECIFIC GRAVITY (PART A / PART B) | 1.7 / 1.4 |
| CURE RATE | |
| 35°F (2°C) | WORKING TIME: 40 MINUTES FUNCTIONAL CURE: 7 HOURS |
| 52°F (11°C) | WORKING TIME: 20 MINUTES FUNCTIONAL CURE: 3½ HOURS |
| 60°F (16°C) | WORKING TIME: 10 MINUTES FUNCTIONAL CURE: 1½ HOURS |
| 70°F (21°C) | WORKING TIME: 6 MINUTES FUNCTIONAL CURE: 60 MINUTES |
| 88°F (31°C) | WORKING TIME: 4 MINUTES FUNCTIONAL CURE: 40 MINUTES |
| ENVIRONMENTAL RESISTANCE | |
| TEMPERATURE RANGE | APPLICATION: 40°F TO 120°F (4°C TO 49°C) USAGE: -40°F TO 300°F (-40°C TO 150°C) |
| TEMPERATURE CYCLE TESTING | -22°F / 203°F (-30°C / 95°C), 10 CYCLES NO SIGNIFICANT CHANGE IN ADHESION OCCURRED |
| GALVANIZED STEEL | 100% (PASS) |
| ALUMINUM | 100% (PASS) |
| CERAMIC | 100% (PASS) |
| COPPER | 100% (PASS) |
| STAINLESS STEEL | 100% (PASS) |
| LEAD | 100% (PASS) |
Additional Information
| PROP 65 STATEMENT | |
|---|---|
| WARNING: THIS PRODUCT CAN EXPOSE YOU TO 2-(PHENOXYMETHYL)-OXIRANE WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, AND 4,4’-(1-METHYLETHYLIDENE)BIS-PHENOL WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS AND/OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION, GO TO WWW.P65WARNINGS.CA.GOV. WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING SULPHURIC ACID, NITRILOTRIACETIC ACID, WHICH IS/ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER. FOR MORE INFORMATION, GO TO WWW.P65WARNINGS.CA.GOV. |
What's in the Box
What’s in the Box
- Qty 1 - Polywater® AirRepair® Air Leak Repair System, Asset Maintenance Solutions
| AIRREPAIR SYSTEM PRODUCT CATALOG | ||
|---|---|---|
| AR-KIT | Customized AirRepair® kit. Call for details. | Units/Case varies |
| ARCT-KIT8 | 8 – AirRepair® cartridges 4 – static mixers 4 – putty sticks 16 – Type RP™ surface prep wipes 8 – PW-1 primer towelettes 1 – sanding cloth 6 – application sticks 8 – pairs of gloves 1 – instructions |
1 |
| AR-KIT97 | - | 1 |
| AR-KIT99 | - | 1 |
| TOOL-50-11 | 1 – dispensing tool for ARCT-KIT8 | 1 |
| AR-STICK | 7-in/18-cm putty stick for temporary leak plugging. | 12 |
| PW-1 | Plastic primer towelette | 10 |
| RP-1 | Type RP™ surface prep wipes | 96 |
