24" Network Server Cabinet, 24U/ 42U/ 45U/ 48U Standard Configuration
The Server Cabinets are designed and built to U.S. industry standards and provide a customizable solution for data center build-outs, network rooms, or IT closets. The feature-rich, robust design can be shipped flat packed or as a custom-configured solution that is fully assembled with accessories pre-installed.
Available as an open frame or complete enclosure in multiple size combinations/colors and 5 available door options, these cabinets offer a variety of options and features to meet your specific needs.
Features
- Pre-installed recessed casters combine convenient mobility with minimal added height to provide additional stability
- Brush cable entry slots at front and back of top panel and sliding panels on bottom
- 3,000 lb. static load capacity
- Ships fully assembled and can be configured with accessories to match your individual specifications
Security & Protection

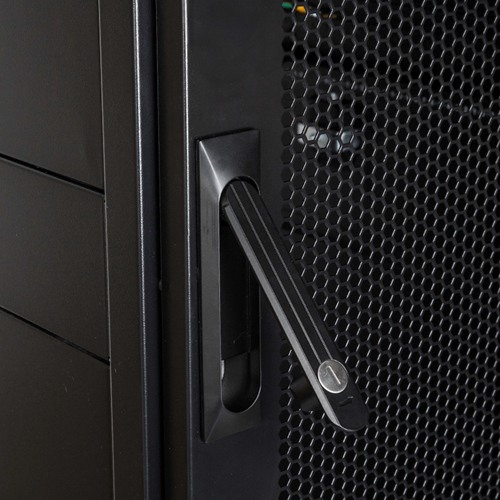

- Locking Doors and side panels prevent unauthorized access to equipment
- Two pairs of adjustable 19" EIA rails provide a stable mounting structure
Flexibility
- Vertical cable management channel on each side features T-shaped fingers and various sizeholes/slots for organizing cables

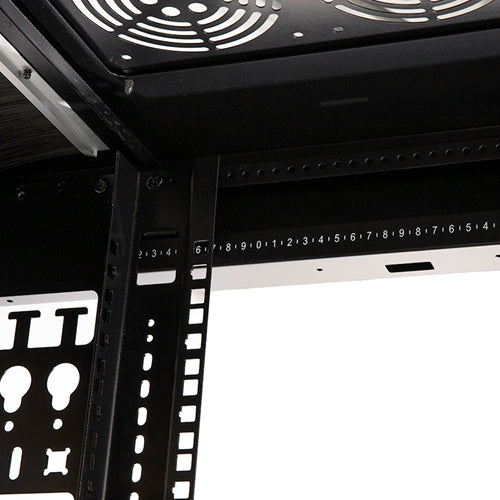

- Rails and cable channels can be easily repositioned in labeled, 1 cm increments to accommodate various equipment depths

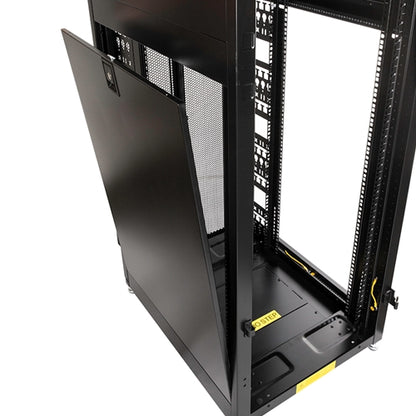

- Removable and lockable half height side panels
- Doors hinge on either side and swing open 180° to provide superior access for installation and maintenance of equipment
Multi-Use
- Available in multiple size combinations to fit in a variety of environments
- Adaptable for use in data center build outs, computer rooms or data closets
Specifications
|
Product Type |
Server Cabinet |
|
Frame Material |
Heavy Gauge Cold Rolled Steel |
|
Finish |
: Black Or White Powder Coat |
|
Dimensions (H x W x D) |
Varies By Size |
|
Rack Unit Quantity |
24U*, 42U,45U, 48U or 52U |
|
Standard Configuration Front Door |

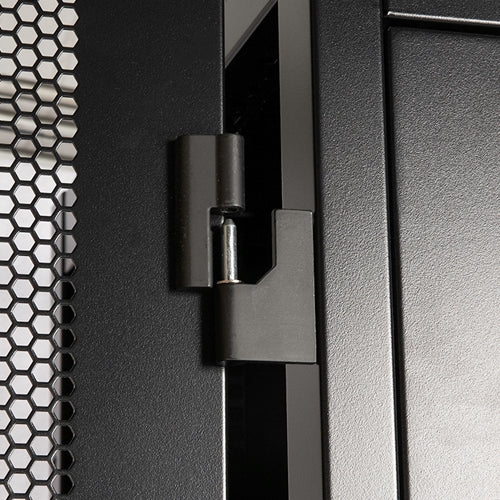

Removable, Reversible & Lockable Mesh, Opens Full 180°, 2 Point Latch, Quick Release Hinges |
|
Standard Configuration Rear Doors |
Removable, & Lockable Split Mesh, Opens Full 180°, 2 Point Latch, Quick Release Hinges |
|
Side Panels |
(2 Per Side) Half Height, Removable & Lockable |
|
Top Panel |
10.5” x 13.5” Removable Vented Panel For Optional Fans, (2) 3.5” x 18” Brush Cable Managers |
|
Bottom Panel |
(2) 4” x 15” Sliding / Removable Panels, (2) 10” x 15” Sliding / Removable Panels |
|
Equipment Support |
Two Pairs Of 14 Gauge Mounting Rails, 1.75” RU Spacing, Marked & Numbered On Rails; 19” W, EIA-310-D Universal Vertical Hole Spacing |
|
Grounding |
14 AWG Ground Wire Connects Doors & Side Panels To Cabinet Frame |
|
Static Loading Capacity |
3,000 lbs. |
|
Included Accessories |
(4) Adjustable Leveling Feet, (4) Casters, (8) Grounding Kits, (2) Lacing Channels, (2) Keys |
|
Compliance & amp; Standards |
ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7 |
|
24"W x 31.5"D |
|
|
42U |
|
|
45U |
|
24"W x 42"D |
|
|
24U |
|
|
42U |
|
|
45U |
|
|
48U |
|
|
52U |
|
24"W x 48"D |
|
|
24U |
|
|
42U |
|
|
45U |
|
|
48U |
|
|
52U |
|
What’s In The Box
- Qty 4 - Adjustable Leveling Feet
- Qty 4 - Casters
- Qty 8 - Grounding Kit
- Qty 2 - Lacing Channels
- Qty 2 - Keys
