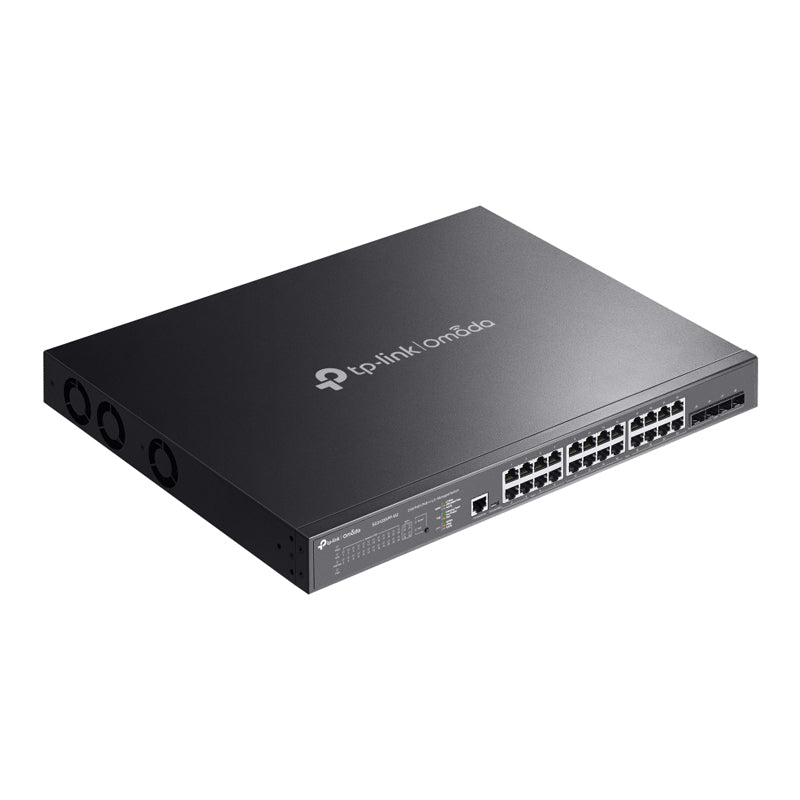

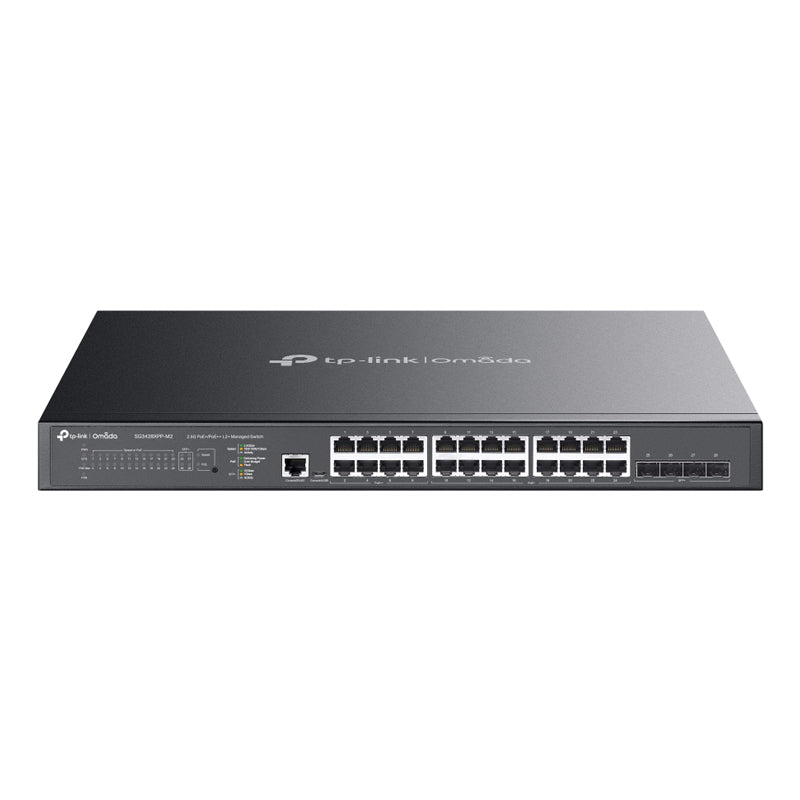

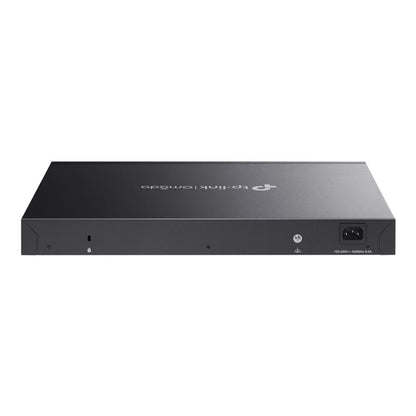

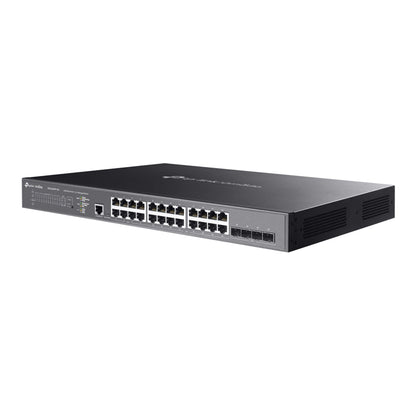

SG3428XPP-M2, Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
SG3428XPP-M2, Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
BY TP-Link
SKU: SKU: SG3428XPP-M2
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full details
Description
SG3428XPP-M2, TP-Link | Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Features
- 8× 2.5G PoE++ ports (up to 60 W PoE out per port)**
- 16× 2.5G PoE+ ports (up to 30 W PoE out per port)
- 4× 10G SFP+ slots
- 500 W total PoE budget*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
Specifications
| HARDWARE FEATURES |
|
|---|---|
| Interface | • 24× 2.5 Gbps RJ45 Ports (8× PoE++, 16× PoE+) • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions (W x D x H) | 17.3 x 13.0 x 1.7 in (440 x 330 x 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 629.1 W (110V/60Hz) |
| Max Heat Dissipation | 2153.45 BTU/h (110 V/60 Hz) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 200 Gbps |
| Packet Forwarding Rate | 148.80 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 16 Mbit |
| Jumbo Frame | 9 KB |
| GENERAL |
|
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents |
|
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
Additional Information
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our switches please visit our overview page. Our Switches can be combined with a wide array of products.
What's In The Box
- Qty 1 - SG3428XPP-M2
- Qty 1 - Power Cord
- Qty 1 - Installation Guide
- Qty 1 - Resource CD
- Qty 1 - Rackmount Kit
- Qty 4 - Rubber Feet
