6.8 Cubic Inch Siding Mounting Kit w/ Built-In Electrical Box
6.8 Cubic Inch Siding Mounting Kit w/ Built-In Electrical Box
BY Arlington
SKU: SKU: 8141DBL
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full detailsSome items may require minimum order quantities which can be changed in your shopping cart.
Description

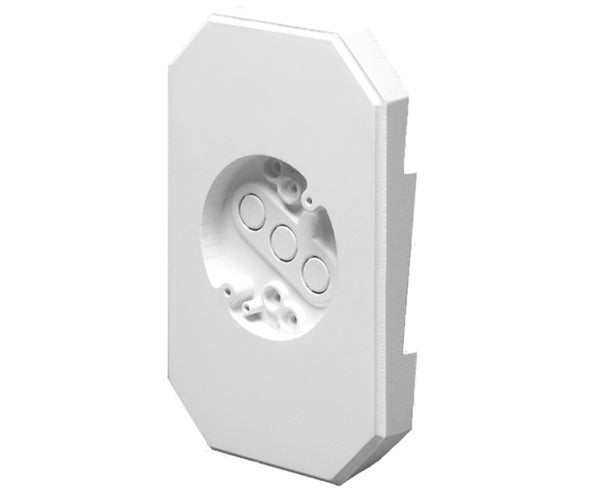

6.8 cubic inch Siding Mounting Block w/ Built-in Electrical Box

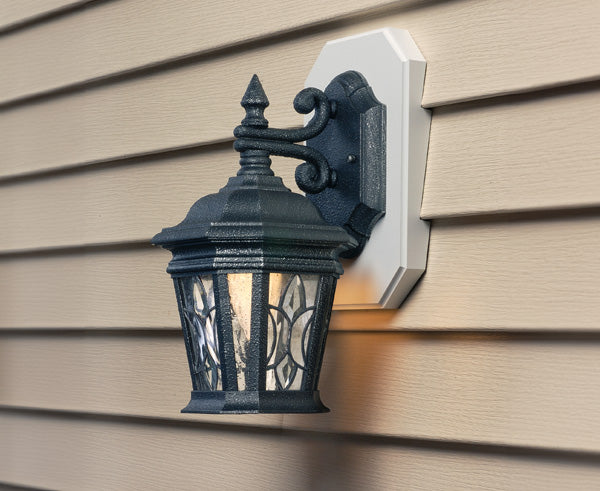

Our UV-rated siding mounting block with a built-in box is great for smooth vertical mounting of light fixtures on all siding types. This product is constructed from a UV-rated paintable plastic that will provide a long service life. Included with this product is one NM cable connector and 4 screws. This product can be installed before or after the siding is installed, and can support light fixtures up to 10lbs on 1/4", 5/16", 1/2", 5/8" siding/shingles, flat surfaces, or a dutch lap.
Features
- Mounts light fixtures on all siding types, including T-111, HardiePlank® Lap Siding, and flat surfaces
- Fast and easy to install after the siding is up
- Textured, paintable surface
- NM cable connector included
- Built-in electrical box design ensures UL-listed installation
- 4" diameter x 1/2" deep.
- Made in the USA
Specifications

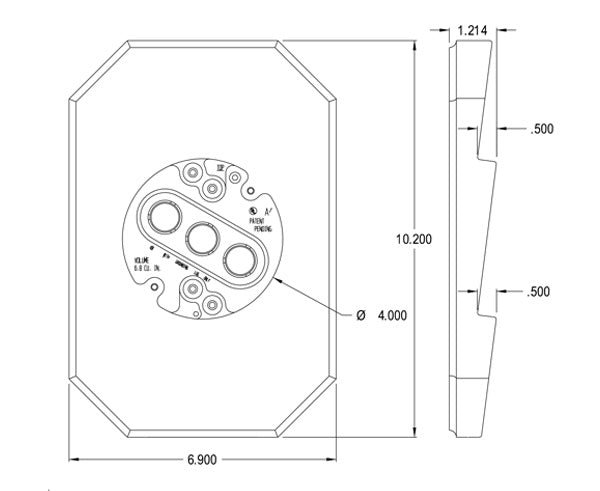

Physical Information |
|
---|---|
Width | 6.900" |
Height | 10.200" |
Weight | 0.940 lbs |
Color | White |
Material | UV- Rated Plastic |
UPC | 018997545244 |
Technical Information |
|
---|---|
Siding Type | 1/2" Lap Double |
Trade Size | 1/2" lap siding double 4" |
Additional Information
Siding Mounting Kits with Built-in Box Instructions
What's In The Box
- Qty 1 - siding mounting block
- Qty 1 - NM94 Cable Connector
- Qty 2 - #8-32 x 5/8" Long Screws
- Qty 2 - #12 x 2" Long Screws
