MC Cable Connectors with insulated throat for 3/8" Flex with ground

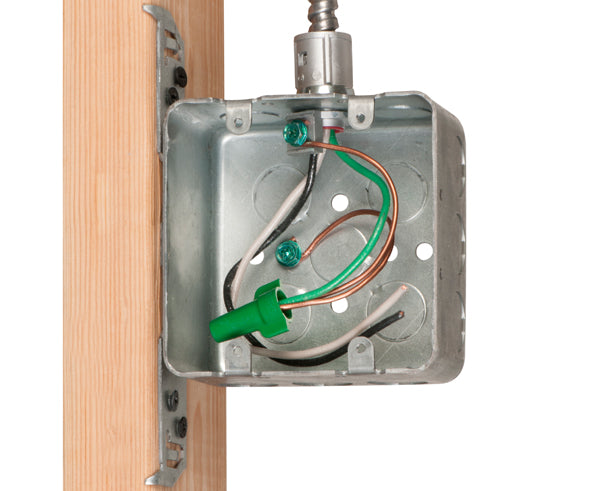

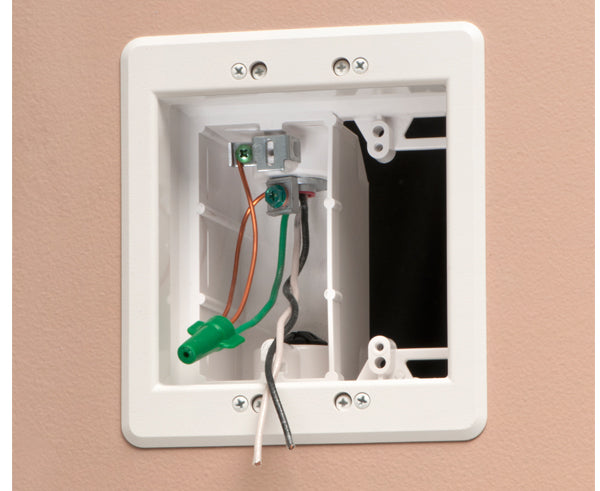

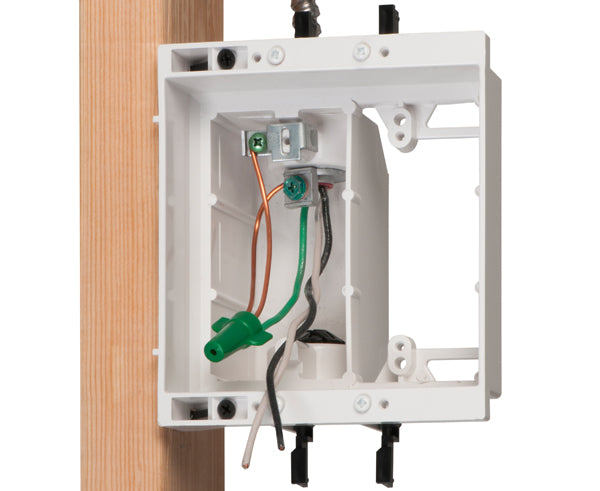

Arlington's new one-piece retrofit SNAP2IT™ fitting with a ground is easy to use in retrofit or new construction applications. Supporting a wide variety of cables, this fitting is ideal for adding additional circuits to a load center. you also get the same labor-savings in a retrofit installation!

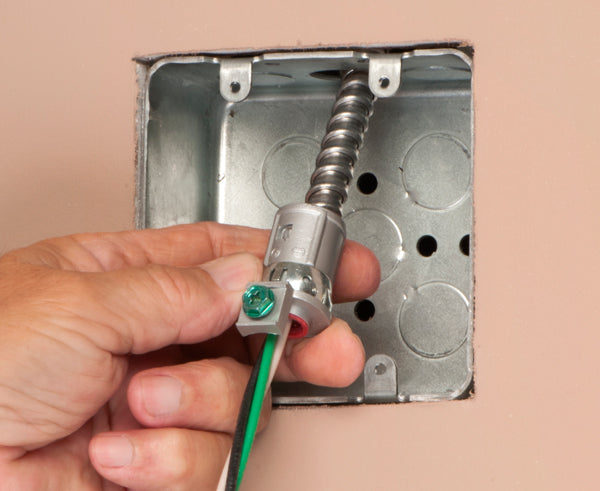

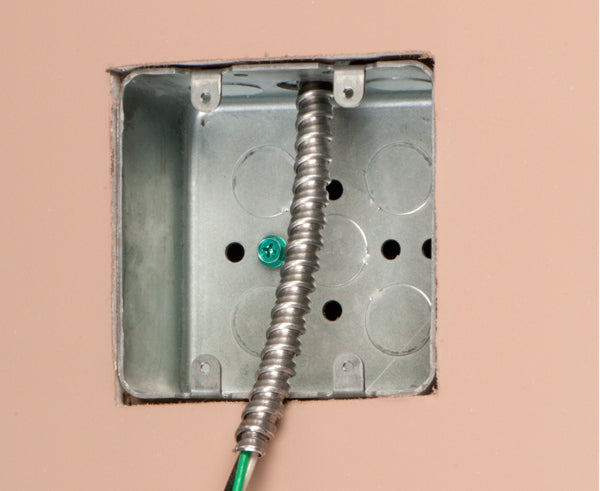

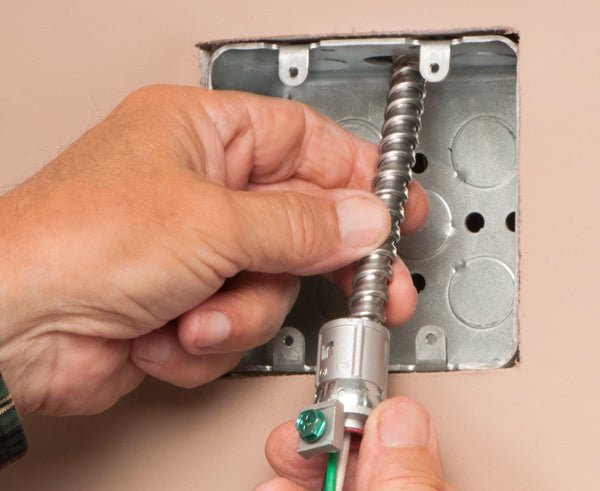

The installation of this product is quick and easy with no tools required, to install in an installed box, pull the cable/conduit through the knockout. slip the fitting onto the cable, then snap the assembly into the box and you are done.

Features
- Widest total cable ranges - These retrofit SNAP2IT™ connectors accommodate cables from 14/2 to 10/3.
- Widest variety of cables for AC, MC, HCF, MC continuous corrugated aluminum cable, MCI-A cables (steel and aluminum), AC90, ACG90 and FLEX
- Super-secure installation - No pull-out!

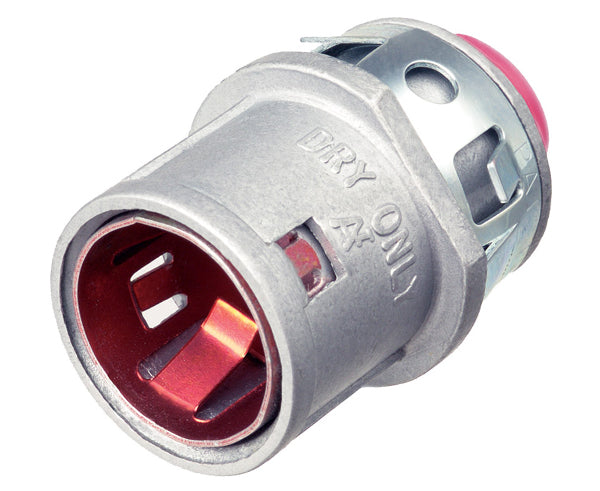

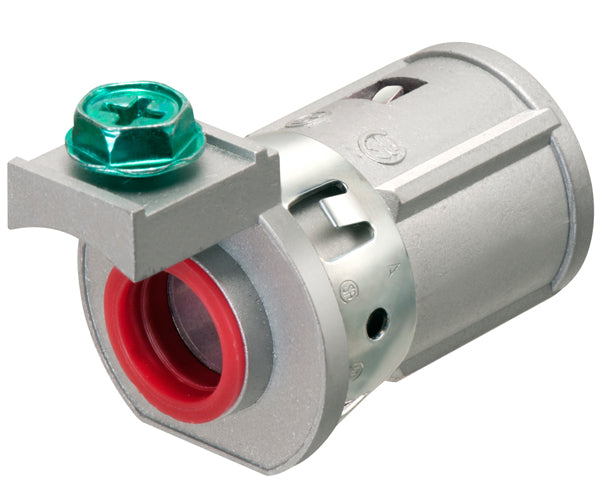

- Fully assembled one-piece design with insulated throat

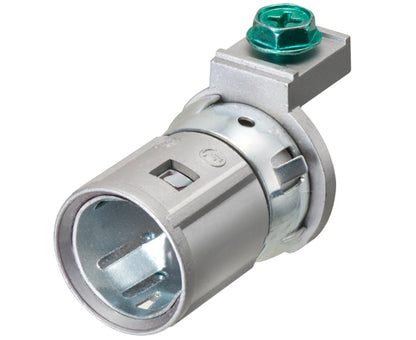

- Built-in ground
Specifications
item Number | Cable Types | Diameter Range | Cable Range |
---|---|---|---|
38RASTG | MC/HCF/AC Steel & Aluminum | 0.405 to 0.605 | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
38RASTG | MCI-A Steel & Aluminum | 0.440 to 0.550 | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
38RASTG | AC90, ACG90 | 0.440 to 0.550 | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
38RASTG | Flexible Metal conduit Steel & Aluminum (RWFMC) | 3/8* | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
40RASTG | MC/HCF/AC Steel & Aluminum | 0.480 to 0.580 | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
40RASTG | MCI-A Steel & Aluminum | 0.480 to 0.580 | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
40RASTG | AC90, ACG90 | 0.480 to 0.550 | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
40RASTG | Flexible Metal Conduit Steel & Aluminum (RWFMC) | 3/8* | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
*CSA Listed With anti-short bushing ONLY
Additional Information
Installation Instructions
What's in the Box?
- Qty 1 - retrofit SNAP2IT™ connectors
