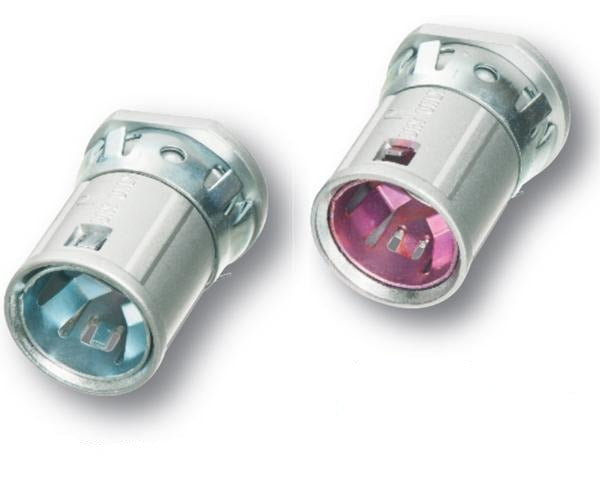

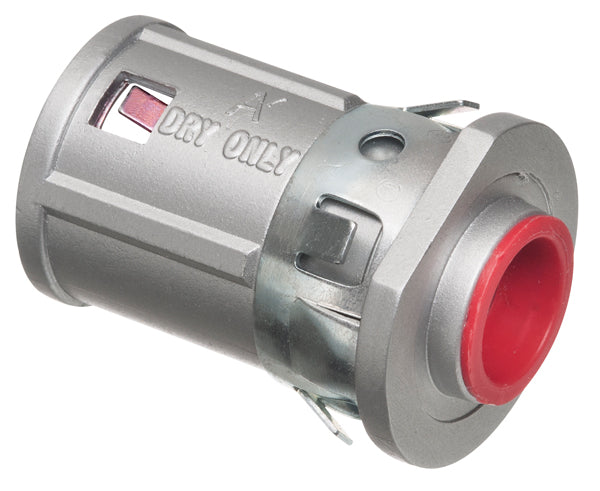

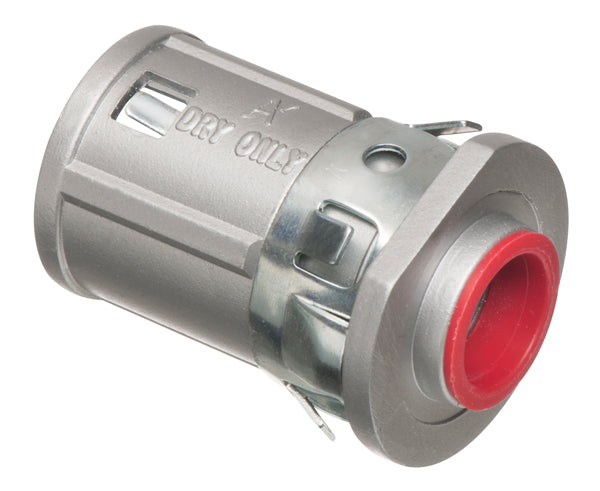

MC Cable Connectors with insulated throat for 3/8" Flex - Snap2It™
Arlington's new one-piece retrofit SNAP2IT™ fittings are easy to use in an old or new work installation and they handle the widest variety of cables! They are ideal for adding additional circuits to a load center. you also get the same labor-savings in a retrofit installation! Installation is quick and easy with no tools required.
installation of this product is made easy, to install in an installed box, pull the cable/conduit through the knockout then slip the fitting onto the cable, then snap the assembly into the box and you're done.
Features
- Widest total cable ranges - These retrofit SNAP2IT™ connectors accommodate cables from 14/2 to 10/3.
- Widest variety of cables for AC, MC, HCF, MC continuous corrugated aluminum cable, MCI-A cables (steel and aluminum), AC90, ACG90 and FLEX
- Super-secure installation - No pull-out!
- Fully assembled one-piece design with insulated throat
Specifications
| Item Number | Cable Types | Diameter Range | Cable Range |
|---|---|---|---|
| 38RASTG | MC/HCF/AC Steel & Aluminum | 0.405 to 0.605 | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
| 38RASTG | MCI-A Steel & Aluminum | 0.440 to 0.550 | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
| 38RASTG | AC90, ACG90 | 0.440 to 0.550 | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
| 38RASTG | Flexible Metal conduit Steel & Aluminum (RWFMC) | 3/8* | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
| 40RASTG | MC/HCF/AC Steel & Aluminum | 0.480 to 0.580 | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
| 40RASTG | MCI-A Steel & Aluminum | 0.480 to 0.580 | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
| 40RASTG | AC90, ACG90 | 0.480 to 0.550 | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
| 40RASTG | Flexible Metal Conduit Steel & Aluminum (RWFMC) | 3/8* | 14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3 |
*CSA Listed With anti-short bushing ONLY
What's In The Box
- Qty 1 - retrofit SNAP2IT™ connectors
