TV Bridge Kit for Flat-Screen TVs
TV Bridge Kit for Flat-Screen TVs
BY Arlington
SKU: SKU: TVBR2505K
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full detailsTV Bridge Kit

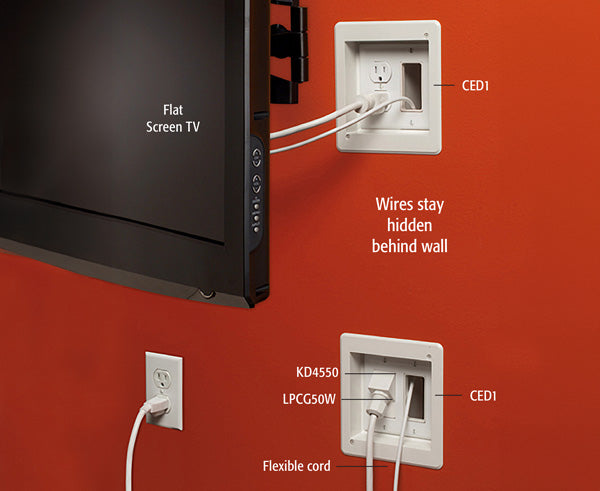

Our TV Bridge Kit includes two recessed power/ low-voltage combo boxes and all the connections you need (except for NM cable) to install a flat-screen TV into an existing wall. The best part is that there's no need to run a cable from a panel box - or cut holes into your framing members. Just cut two holes in the wall and access power from a nearby source.
This product is easy to use and convenient - saving you time and money! When complete, the installation looks clean and flush leaving a professional finish. All wires stay hidden behind the wall - no messy wires running down the wall from the TV to the components and the Plugs stay inside the electrical box and don't protrude past the wall.
Features
- Fast, easy, convenient - saves time and money!
- Secure installation. Good looks. It's a great finish
- All wires stay hidden behind the wall - no messy wires running down the wall from the TV to the components
- Plugs stay inside the electric box - don't protrude past the wall
- Mounting wings hold boxes securely against a wall when screws are tightened
- Paintable trim plate
- 18.0 cubic inch recessed boxes
- For walls up to 1-1/2" thick
- ETL Listed
Additional Information
TV bridge kit Instruction Video
Note:
This product is not designed to be an extension of a structure's hard wiring.
Components are not energized until the flexible cord is plugged in. Do not plug in until all other wiring is complete.
What's In The Box
- Qty 2 - Recessed Boxes With Trim Plates & Installed NM Cable Connectors
- Qty 3 - Wire Nuts
- Qty 2 - TVBR505 Recessed, Dual-Voltage Boxes
- Qty 1 - Tamper-resistant Duplex Receptacle
- Qty 1 - LPCG50W Cord Grip
- Qty 1 - KD4550 angled cable entry with screws
- Qty 2 - CED130 SCOOP™ cable entry
- Qty 2 - CED1 SCOOP™ cable entry
- Qty 1 - 6' Long 14 AWG Cord
- Qty 1 - 2-Gang Decorator-Style / GFCI Wall Plate with screws
- Qty 1 - 2-Gang 1-Standard-Style 1-Decorator-Style / GFCI Wall Plate with screws
- Qty 6 - #6-32 x 3/4" Long Screws
