Description

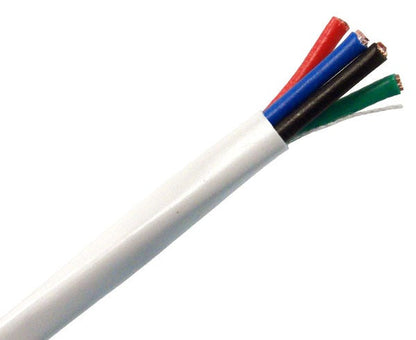

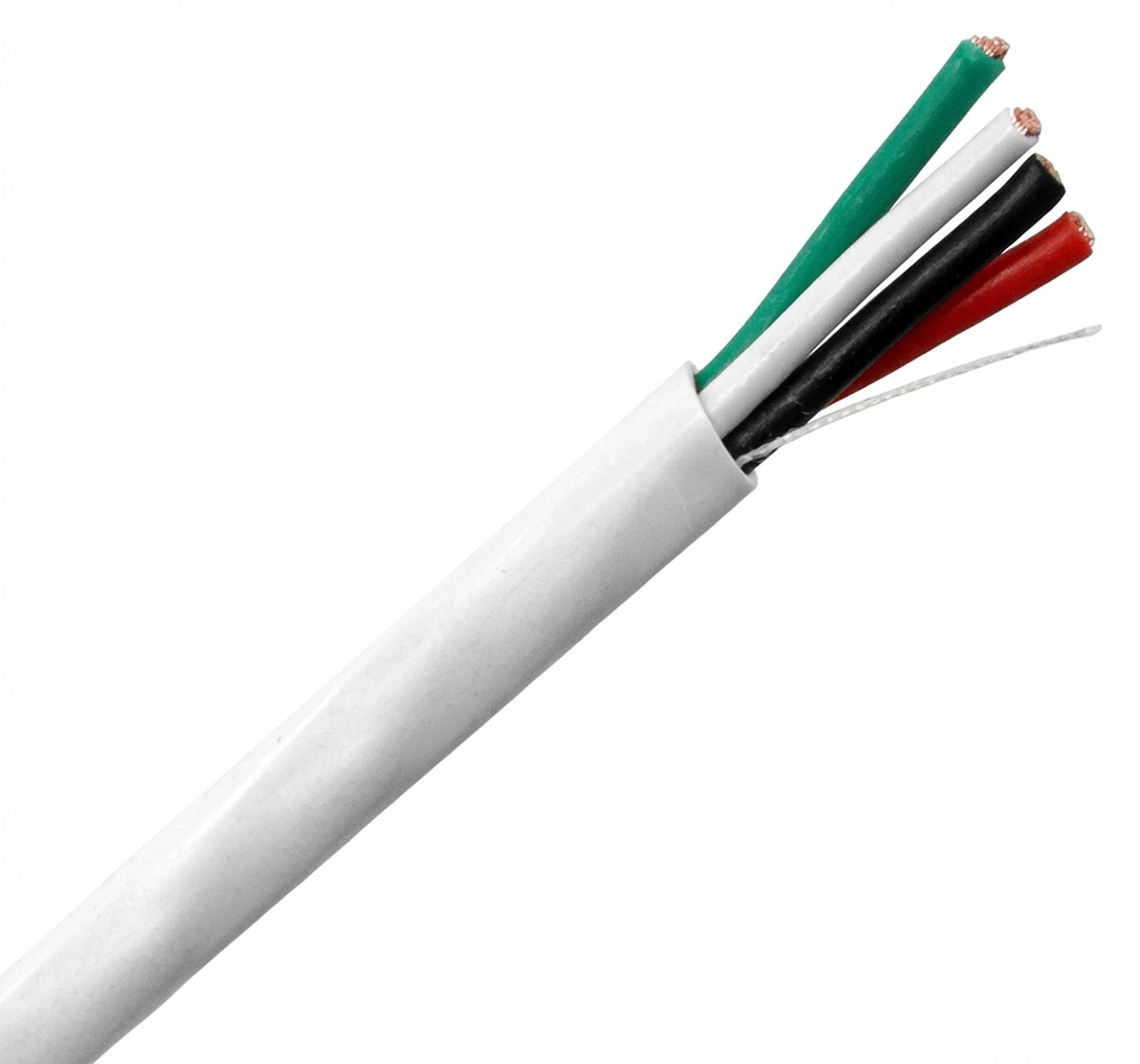

Speaker Wire/ Audio Cable, 16/4, 14/2, 14/4 Oxygen Free CMX, Direct Burial, 500' White & Black

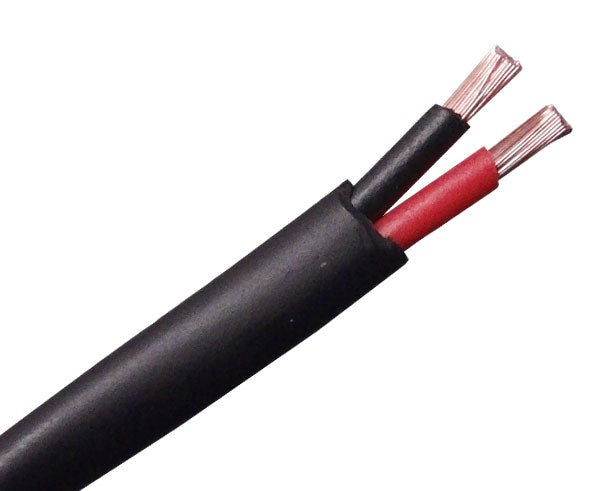

16 AWG Speaker Wire
Our 16-gauge speaker wire features two bare copper conductors with 65 copper strands each, ensuring improved conductivity. Made of oxygen-free pure copper, it's enclosed in a black PVC outer jacket and meets UL and CL3 standards.
Ideal for delivering high-quality audio signals from audio components to a receiver or amplifier, this direct burial speaker wire is suitable for outdoor speakers and low-voltage lighting applications. Supplied on a wooden spool in a 500-foot length, its PVC jacket is sun-resistant and shields the conductors from water damage.

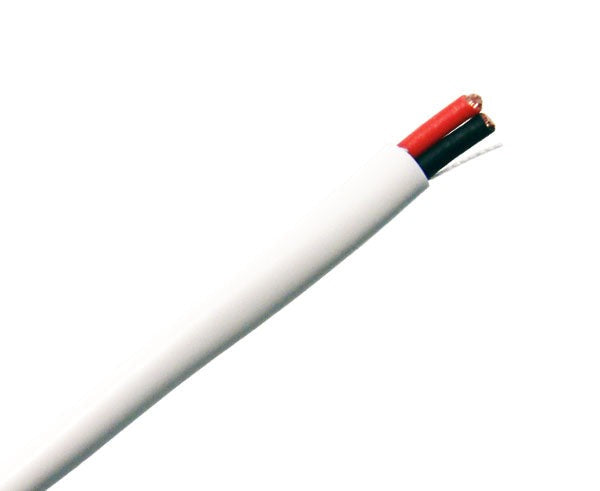

14 AWG Speaker Wire
Our 14-gauge speaker wire consists of two bare copper conductors with 105 copper strands, ensuring enhanced conductivity. Crafted from oxygen-free pure copper, it features a white PVC outer jacket, making it perfect for outdoor speakers, low-voltage lighting, and various outdoor or direct burial applications.
Designed with a specially formulated PVC jacket that is sun-resistant and offers protection against water damage, this speaker wire is UL-listed and meets CL3 standards. It delivers high-quality audio signals from audio components to a receiver or amplifier and is supplied on a wooden spool of 500 feet.
Features
Features
- Oxygen Free Copper (OFC)
- 16 AWG High Strand Count (65 strands)
- 14 AWG High Strand Count (105 strands)
- Direct Burial Sun Resistant PVC Jacket
- PVC Jacket Protects Against Water Damage
- UL Listed
- CMX Rated
- Meets CL3 Standards
Specifications
| Specifications | 16 AWG Speaker Wire | 14 AWG Speaker Wire |
|---|---|---|
| Conductor | OFC - Oxygen-Free Copper | OFC - Oxygen-Free Copper |
| Conductor Size | 16 AWG | 14 AWG |
| Conductor Diameter | 65/0.16 | 105/0.16 |
| Insulation | 16 AWG | 14 AWG |
| Average Thickness | 0.31mm | 0.35mm |
| Insulation Diameter (™ 0.05mm) | 2.1mm | 2.6mm |
| Number of Strands | 65 | 105 |
| Insulation Colors | Red, Black, White, & Green | Red, Black, White, & Green |
| Outer Jacket | Direct Burial Sun Resistant PVC, CMX Rated | Direct Burial Sun Resistant PVC, CMX Rated |
| Outer Jacket Color | White & Black | White & Black |
| Average Thickness | 0.6 | 0.6 |
| Outside Diameter (™0.05mm) | 6.5 | 6.5 |
| Capacitance (Pf/m) | 65.2919 | 67.2605 |
| Nominal Velocity of Propagation VP(%) | 66 | 66 |
| Conductor DC Resistance DCR@20™C (ohm/km) | 13.124 | 8.2025 |
| Max. Operating Voltage-UL (Voltage) | 300 V RMS | 300 V RMS |
| Operating Temperature | -20˚C to 60˚C | -20˚C to 60˚C |
Additional Information
Speaker Wire Accessories
Home theater speakers generally don™t come with speaker wire. This poses the challenge of determining the wire gauge and jacket type to suit the application. Primus Cable supplies premium-quality speaker wire with a CMX jacket rating, making it safe for floor-to-floor wiring. To ensure crystal clear home theater audio, be sure to invest in oxygen-free copper speaker wire from Primus Cable.
To learn more about our Speaker Wire Accessories please visit our overview page. Primus Cable Speaker Wire can be combined with a wide array of products such as:
- Audio/Video Keystone Jacks
- RCA Audio Cable
- RCA Splitter
- RCA Component Video Cable
- TV Ceiling and Wall Mounts
What's in the Box
What's In The Box

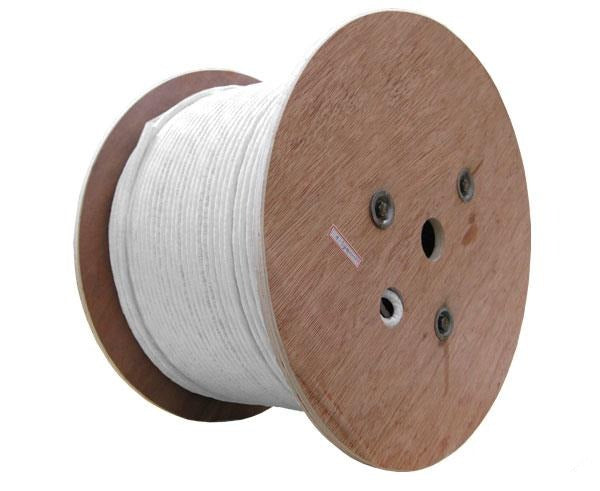

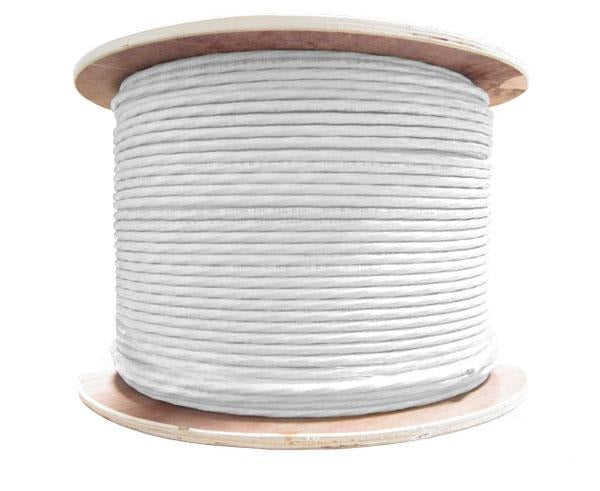

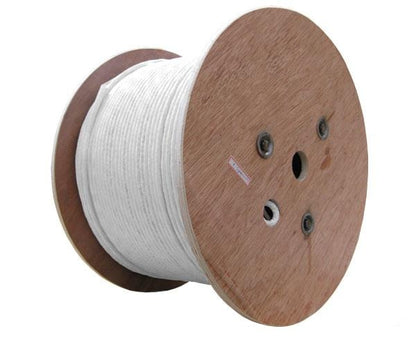

- Qty 1 - OFC Direct Burial Sun Resistant Jacket Audio Cable supplied on a 500 FT Wooden Spool
