Description

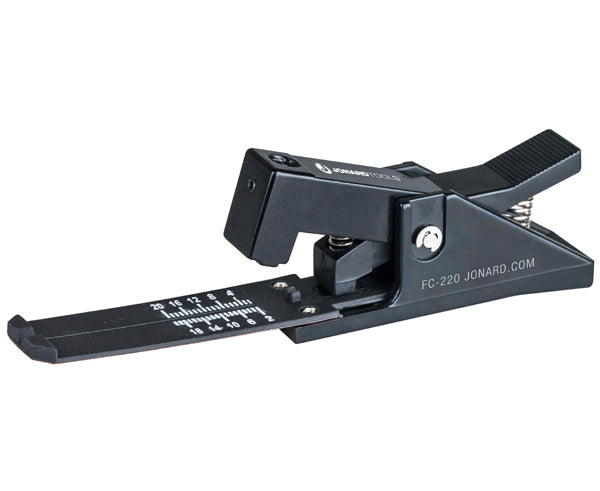

Fiber Cleaver
Designed to cleave either 900 µm buffered or 250 µm coated fiber, this fiber cleaver’s quick and easy three step operation is perfectly suited for mechanical splicing and quick field termination of fiber connectors. Up to 6,000 cleave operation life.
Features
Features
- Leaf spring scale is ruled to allow accurate and precise cleave lengths from 2 to 20 mm (0.079” to 0.79”)
- Ultra-strong carbide blade will last up to 6,000 cleaves before needing to be replaced
- Handles both single and multi-mode fibers with 125 µm cladding
- Affordable
Specifications
Specifications
| Specifications | ||
|---|---|---|
| Fiber Type | Silica glass fiber (core and clad) | |
| Compatible Fiber Size | 900µm Buffer or 250µm Coated | |
| Cladding Diameter | 80µm to 200µm | |
| Operating Temperature | 0-40°C | |
| Storage Temperature | -20-60°C | |
| Dimensions | 124mm x 20mm x 40mm | |
| Weight | 48g | |
| Cleave Length | 2mm-20mm | |
Additional Information
Additional Information
What’s In The Box
What’s In The Box
- Qty 1 - Fiber Cleaver, Carbide Blade, Cleave Lengths 2mm-20mm
