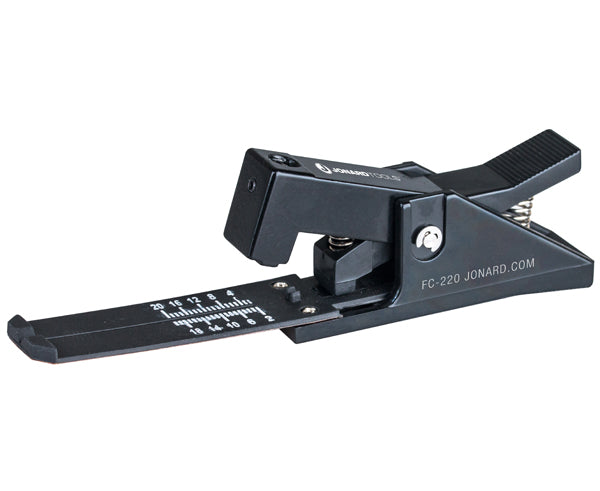

Fiber Cleaver

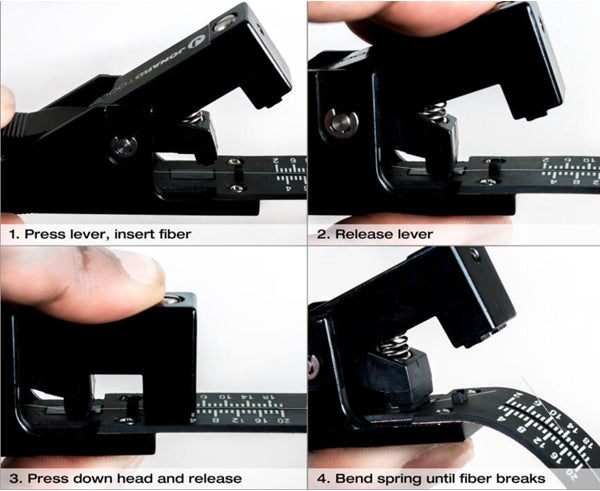

Designed to cleave either 900 µm buffered or 250 µm coated fiber, this fiber cleaver’s quick and easy three step operation is perfectly suited for mechanical splicing and quick field termination of fiber connectors. Up to 6,000 cleave operation life.
Features
Features
- Leaf spring scale is ruled to allow accurate and precise cleave lengths from 2 to 20 mm (0.079” to 0.79”)
- Ultra-strong carbide blade will last up to 6,000 cleaves before needing to be replaced
- Handles both single and multi-mode fibers with 125 µm cladding
- Affordable
Specifications
Specifications
| Cleave Length | 2.0 mm to 20.0 mm (0.079" to 0.79") |
| Dimensions | 4.89" × 0.787" × 1.57" (124 mm × 20 mm × 40 mm) |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | –20 °C to 60 °C |
| Weight | 0.132 lb (59.87 g) |
| UPC # | 811490017078 |
Additional Information
Additional Information
Jonard Tools FC-220 - Fiber Cleaver |
Jonard Tools FC-220 Call Out Video |
What’s In The Box
What’s In The Box
- Qty 1 - Fiber Cleaver, Carbide Blade, Cleave Lengths 2mm-20mm
