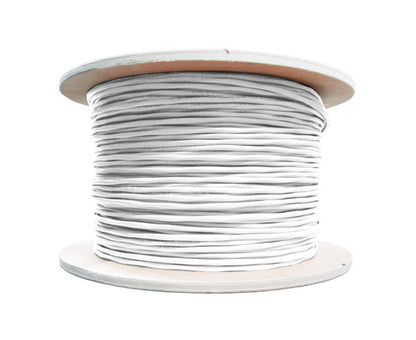

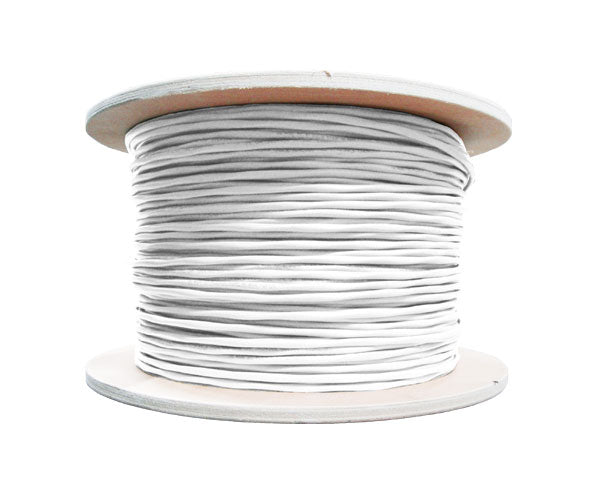

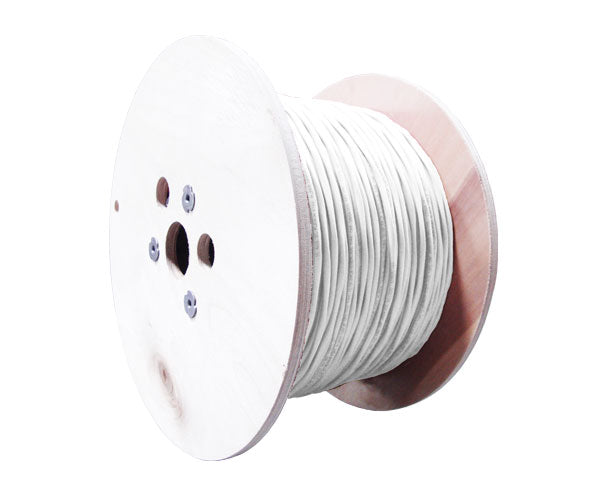

Security Alarm Cable - Plenum (CMP) - 22/6 AWG, CL3P, Stranded (7 Strand), Shielded, 1000ft, White

$263.47
SKU: ASC3-461/226
Made in USA RoHS Compliant ETL Verified logo

Description

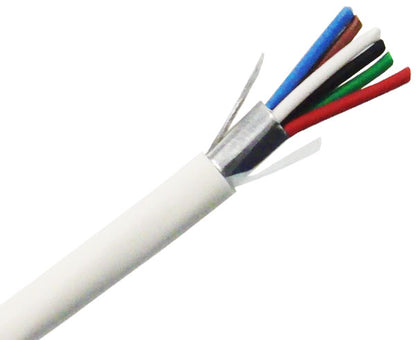

Security Alarm Cable 22/6 (7 Strand) Plenum CMP Rated Shielded 1000'

Crafted for security systems, this 22 AWG 6-conductor Security Alarm Cable is versatile for intercoms, power limited controls, and sound/audio systems. Built with 7 strands of solid bare copper wire, it features a shielded plenum CMP-rated white jacket, proudly made in the USA. Supplied in 1000 ft. increments, this 22/6 Security Cable combines quality with convenience.

Our Bulk Security Alarm Cables, known as alarm wire, are designed to meet alarm system installation requirements. With a diverse stock of high-quality alarm cables, including both riser and plenum rated jackets, we cater to all your needs. Prior to purchase, ensure compliance with building code requirements. The cables also include print legends for quick identification, saving valuable time during installation and making them the preferred choice for various applications.

Security Alarm Cable 22/6 (7 Strand) Plenum CMP Rated Shielded

Explore Our Selection of Security Alarm Cable

Plenum - CMP
Shielded
Plenum - CMP
Unshielded
Riser - CMR
Shielded
Riser - CMR
Unshielded
Outdoor - CMX
Water Block
Security Alarm Cable - Riser (CMR) - 22/4 CL2R, Solid BC, Unshielded,

Applications

A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.

Features

Features

  • 22 AWG 6 Conductors
  • 7 Stranded Bare Copper Conductors
  • Low Smoke PVC Insulation
  • AL Foil Shielded
  • Low Smoke White PVC Jacket
  • Sequential Footage Marking
  • CL3P, CMP FT6 Rated
  • ETL Listed
  • RoHS Compliant
  • NEC Articles
    • 22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
    • 14-12 AWG: FPLP, CL3P

Residential Or Commercial Applications

  • Security Systems
  • Intercom Systems
  • Sound/Audio Systems
  • Power-Limited Controls

Specifications

Specifications


Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 22 AWG
Insulation PVC
Nominal OD 4.52mm
Outer Jacket Diameter .38mm
Jacket Low Smoke PVC
Jacket Color Gray
Number of Strands 7
Inner Conductor Diameter 1.2mm

Electrical Characteristics

Temperature 75°C
Voltage Rating 300V
Center Resistance 21.20 (Ω/km)

Additional Information

Standards ETL | RoHS | CMP | CL3P
Applications Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing 22 AWG 6C (ETL) 725/CL3P 800/CMP (VID:###) XXXX FT
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.


Additional Information

How to Select CM, CMR and CMP Cable?

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.

Where to use Plenum Security Alarm Cable

Why Plenum?

A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.

What's in the Box

What's in the Box

  • Security Alarm Cable - Plenum (CMP) - 22/6 AWG, CL3P, Stranded (7 Strand), Shielded, White, 1,000FT
