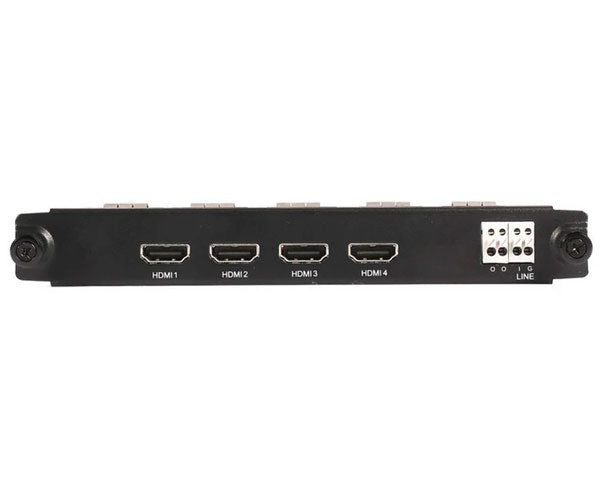

HDMI Output Decoder Card

HDMI Output Decoder Card

BY Uniview

$1,455.00 USD

$1,455.00 USD

Sale Sold out

SKU: SKU: FB-HDMI4-C-NB

Size 4-ch 6-ch

Quantity

⚠ Various lead times may apply to this product. Please contact us for more details.

View full details

This product is intended to be purchased by installers only

Support 4 or 6 channels of additional HDMI outputs
For use in video walls
Supports NR6416 & NR12816 network recorders only
HDMI resolution up to 4K, 3840 x 2160
H.265 & H.264 standards support

VIDEO TEST MONITOR
HDMI Port	Supports 4 or 6 ch
HDMI Output 4-ch	Ports HDMI1 & HDMI3: 1920×1080p/60Hz, 1920×1080p/50Hz 1600×1200/60Hz, 1280×1024/60Hz 1280×720/60Hz, 1024×768/60Hz Ports HDMI2 & HDMI4: 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz 1920×1080p/60Hz, 1920×1080p/50Hz 1600×1200/60Hz, 1280×1024/60Hz 1280×720/60Hz, 1024×768/60Hz
HDMI Output 6-ch	Ports HDMI1, HDMI2 & HDMI4: 1920×1080p/60Hz, 1920×1080p/50Hz 1600×1200/60Hz, 1280×1024/60Hz 1280×720/60Hz, 1024×768/60Hz Ports HDMI3, HDMI5 & HDMI6: 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz 1920×1080p/60Hz, 1920×1080p/50Hz 1600×1200/60Hz, 1280×1024/60Hz 1280×720/60Hz, 1024×768/60Hz
Camera Capability (fps): 4-ch	8×4K@30, 16×4MP@30 32×1080P@30, 64×720P
Camera Capability (fps): 6-ch	12×4K@30, 24×4MP@30 48×1080P@30, 96×720P
Multi-window	1/3/4/5/6/7/8/9/16
Working Humidity	10%~90%
Weight	1kg (2.2lb)
