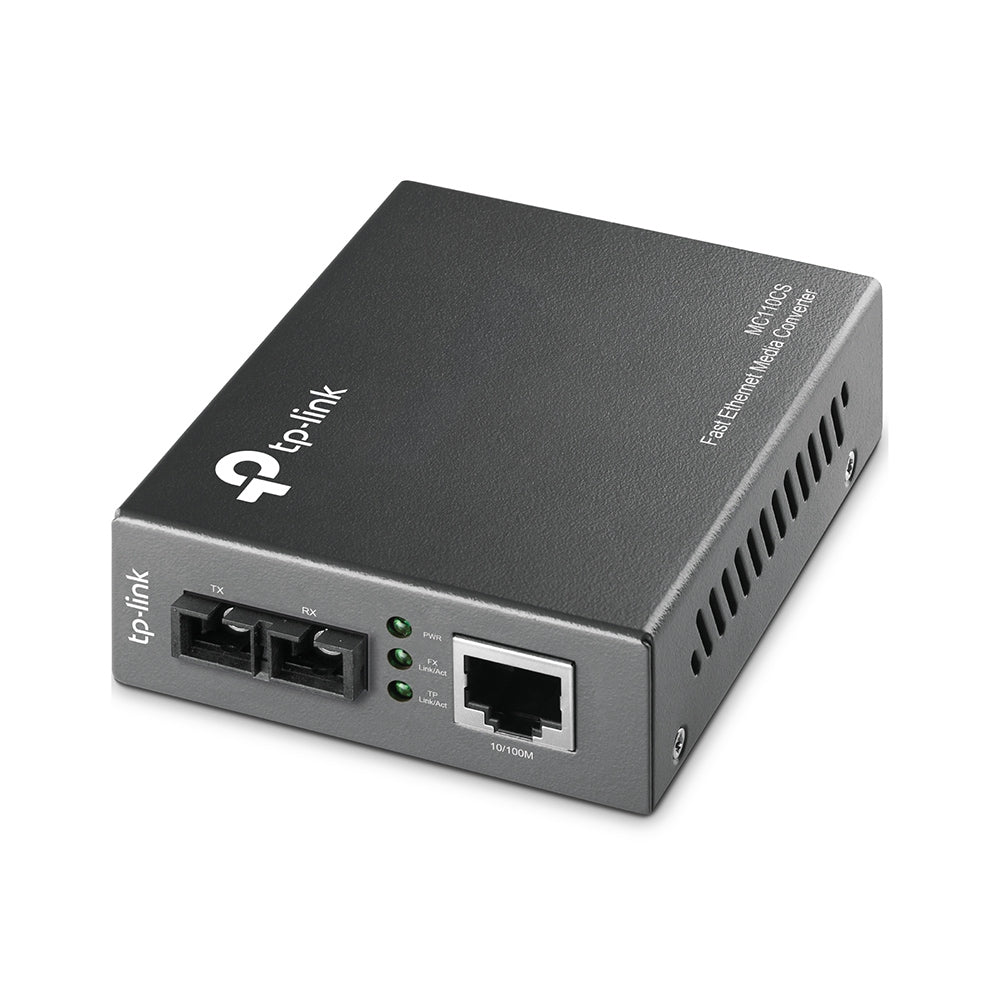

10/100Mbps Copper to Single-Mode Fiber Media Converter

by TP-Link
$20.99
SKU: MC110CS
Various lead times may apply to this product. Please contact us for more details.
FCC Logo CE Logo RoHS Compliant
This unit requires a SFP Transceiver module, which is sold separately.
Please add a compatible transceiver to your order.

Description

10/100Mbps Single Mode Media Converter

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 12.4 miles (20km).

Features

Features

  • Complies with 802.3u 10/100Base-TX, 100Base-FX Standards
  • Auto-negotiation of Half-duplex / Full-duplex Transfer Mode
  • Ranges up to 20km (12.4 miles) Transmission Distance with 9/125 μm Single Mode Fiber

Specifications

Specifications

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function

Half/Full-duplex Transfer Mode for FX Port

Full Duplex Flow Control (IEEE 802.3x)

Half Duplex Flow Control (Backpressure)

Extends Fiber Distance up to 20km (12.4 miles)

Ports

1 x 100M Dual SC/UPC Port

1 x 10/100M RJ45 Port (Auto MDI/MDIX)

Wave Length
1310 nm
Network Media 10BASE-T UTP Category 3, 4, 5 Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
Network Media 100BASE-T UTP Category 5, 5e Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
Network Media 100BASE-FX Single Mode Fiber
LED Indicators PWR, Link/Act
Dimensions (W x D x H) 3.7 x 2.9 x 1.1 in (95 x 73 x 27 mm)
Power Supply External Power Supply
Max Power Consumption  2.4W
Safety & Emission FCC, CE, RoHS
Package Contents

Media Converter MC110CS

Power Adapter

Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% Non-condensing

Storage Humidity: 5%~90% Non-condensing

What's in the Box

What's in the Box

  • Media Converter MC110CS
  • Power Adapter
  • Installation Guide
