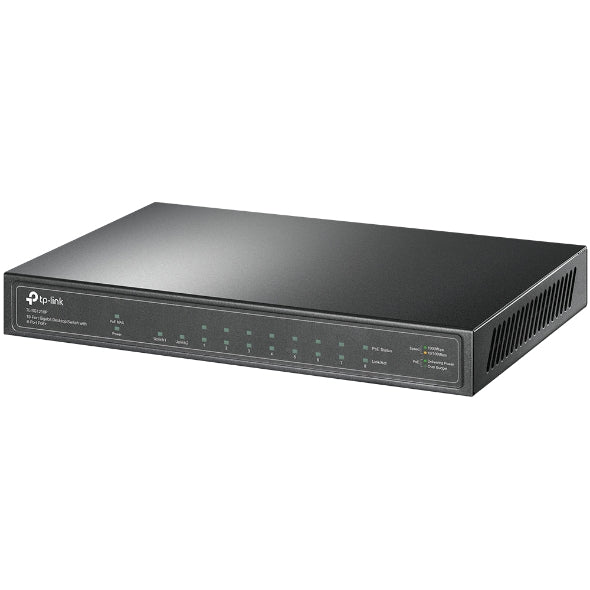

TP-Link, 10-Port Gigabit Desktop Switch with 8-Port PoE+

by TP-Link
Various lead times may apply to this product. Please contact us for more details.

FCC- Logo   ROHS Logo PoE+ Capable


10-Port Gigabit Desktop Switch with 8-Port PoE+

What This Product Does

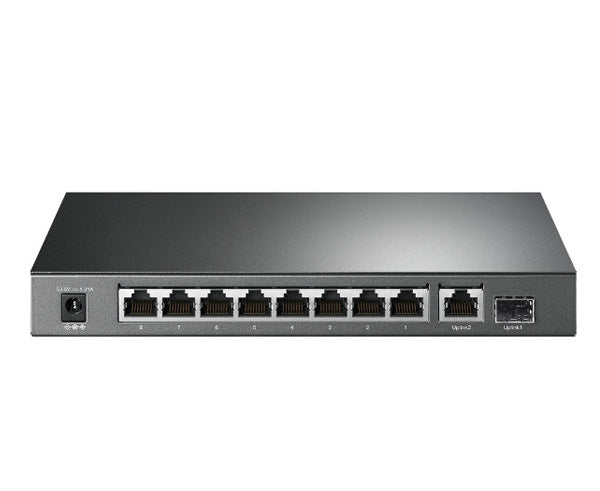

The TL-SG1210P provides 9 10/100/1000Mbps RJ45 ports and 1 Gigabit SFP port. Port 1 to port 8 of the switch support IEEE 802.3af/at compliant PDs with up tp 30 W for each PoE port and total PoE power budget of 63 W*. The TL-SG1210P is an unmanaged switch with desktop design, outstanding performance and quality, which is a great selection for expanding your network.

Switch Network Overview

Intelligent Power Management

When total power consumption exceeds 63W, intelligent power management will turn off the lower priority port power to ensure high priority ports' power supply and protect the device from power overload.

Sturdy Metal Casing

TL-SG1210P features a sturdy and compact metal casing, flexible desktop/wall-mounting option, and fanless design to ensure quiet operation.



  • 9 x 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
  • With 8 PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs and expands office network
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
  • Easy to use, with no configuration and installation needed




8 PoE+ 10/100/1000 Mbps RJ45 Ports

1 10/100/1000 Mbps RJ45 Port

1 Gigabit SFP Slot

Fan Quantity  Fanless
Power Supply External Power Adapter (Output:53.5 VDC / 1.31A)
PoE+ Ports (RJ45)

Standard: 802.3at/802.3af compliant

PoE Ports: Port 1 - Port 8

PoE Power Budget 63 W

Dimensions ( W x D x H )

8.2 x 4.9 x 1.02 in (209 x 126 x 26 mm)
Max Power Consumption

7.11 W (220/50 Hz. no PD connected)

78.13 W (220/50 Hz with 63W PD connected)

Max Heat Dissipation

24.25 BTU/h (no PD connected)

266.42 BTU/h (with 250 W PD connected)

Packet Forwarding Rate 14.88 Mpps
MAC Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 20 Gbps
Certification FCC
Package Contents


Power Adapter

Installation Guide


Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing

Additional Information

Ethernet Switch Accessories

An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and doesn't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:

What's In The Box

What's In The Box

  • Qty 1 - 10-Port Gigabit Desktop Switch
  • Qty 1 - Power Adapter
  • Qty 1 - Installation Guide
