Plenum (FPLP) Fire Alarm Cable for Fire Protection Circuits

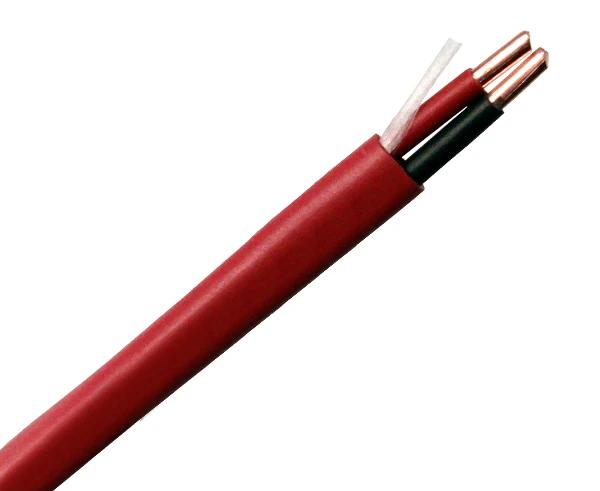

The Plenum (FPLP) Fire Alarm Cable features two 12-gauge solid bare copper conductors and a low-smoke PVC jacket designed for safe installation in environmental airflow spaces. Sequential footage markings on the jacket aid in monitoring the remaining cable length for an efficient installation process.
Investing in top-tier fire alarm cables is essential for safeguarding lives. As a reputable industry leader, we exclusively provide high-quality products. Fire alarm cables play a crucial role in emergencies, activating sprinklers and smoke alarms for prompt evacuation. Trust a reliable source for your fire alarm cables to ensure utmost reliability when lives are at stake.
Fire Alarm Applications
There are many uses for a fire alarm cable, such as smoke alarms, smoke detectors, voice communications, microprocessor-controlled systems, pull boxes (fire alarm signals), burglar alarms, and other low-voltage applications. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.
Fire Alarm Cable Products
We offer a variety of shielded and unshielded Plenum, Non-Plenum, and Riser fire alarm cables, FPLP and FPLR, ranging from 18 AWG to 12 AWG solid bare copper conductors. These fire cables are flexible for easy installation. With our commitment to quality and dependability, our cables are UL, ETL Listed, and RoHS Compliant. Plenum-rated fire cables mean they can be run in the area between floors that is used as a duct area or other air space. Plenum refers to the material used in the jacket of the cable, which burns less than non-plenum cables.
Why Plenum?
A plenum space is an open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It is also required in most multi-floor business buildings with large plenum space areas.
Features
Features
- Low smoke-generating FT6 plenum-rated PVC jacket
- Sequential footage markings on the jacket
- Unshielded
- UL Listed
- ETL listed
- RoHS Compliant
- Voltage rating: 300V
- Temperature rating: 75°C
- Made in USA
Applications
- Fire alarm wiring
- Fire protection
- Signals
- Monitoring and detection systems
- Audio circuits
- Notifications circuits
- Control circuits
- Initiating circuits
Conductor Insulation Colors
- Black
- Red
Specifications
Specifications
| Physical Construction | |
|---|---|
| Inner Conductor | Solid Bare Copper |
| Conductor Size | 12 AWG |
| Insulation | Low Smoke PVC (0.012) |
| Nominal OD | 6.07 mm (0.259 in) |
| Outer Jacket Thickness | .457 mm (0.018 in) |
| Jacket | Low Smoke PVC |
| Jacket Color | Red |
| Shielding | N/A |
| Electrical Characteristics | |
|---|---|
| Temperature | 75℃ |
| Voltage Rating | 300 V |
| Color Mode | Black Red |
Additional Information
Additional Information
To learn more about our Fire Alarm Bulk Cable, here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.
To learn more about our CMP-Rated Cable, here is a link to a page containing more information on our premium CMP-Rated Cable.
What's in the Box
What's in the Box

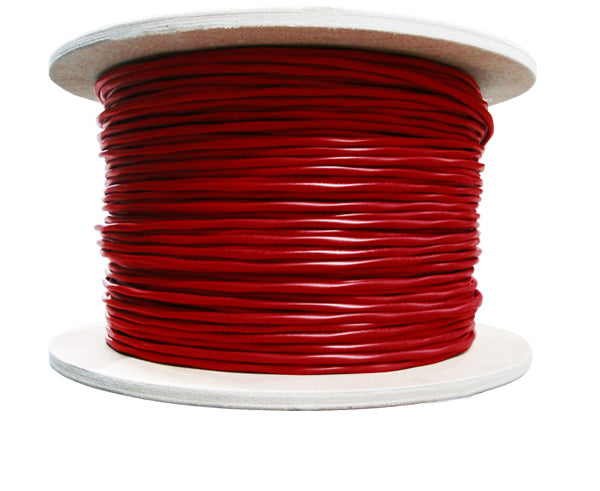

- Qty 1 - Plenum unshielded (FPLP) Fire Alarm Cable, 12/2 AWG, Solid Bare Copper Conductors, Red Jacket (1000 Ft)
