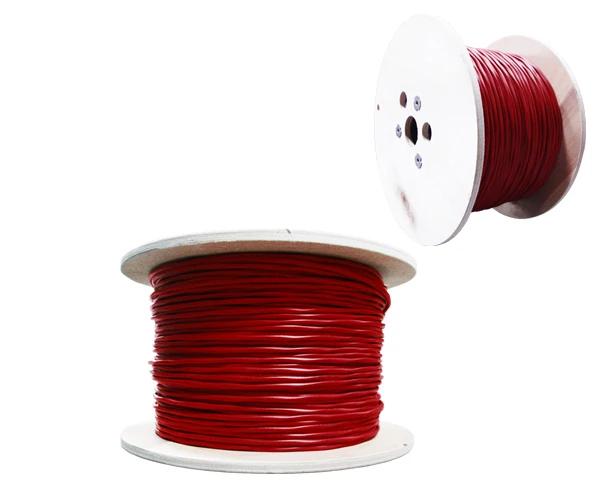

Fire Alarm Cable: FPLP Unshielded Plenum, 14/4 AWG Solid Bare Copper Conductors, Red Jacket, 1000 Feet Length

$728.30
SKU: FA3-1992/144
Various lead times may apply to this product. Please contact us for more details.
Made in USA RoHS Compliant

Description

Fire Alarm Cable with Plenum Rated Jacket

The Plenum (FPLP) Fire Alarm Cable boasts four 14-gauge solid bare copper conductors and a low smoke PVC jacket, making it suitable for installation in environmental airflow spaces. Sequential footage markings on the jacket aid in the installation process by providing visibility of the remaining cable length.

Investing in the highest quality fire alarm cables from a reliable source is crucial when lives are at stake. We are a reputable name in the industry, providing only top-tier products. Fire alarm cables are essential as they ensure the fire alarm system triggers sprinklers and smoke alarms in the event of a fire, alerting people to evacuate the premises.

Fire Alarm Applications

There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, microprocessor controlled systems, pull boxes (fire alarm signals), burglar alarms, and other low voltage applications. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.

Fire Alarm Cable Products

We offer a variety of shielded and unshielded Plenum, Non-Plenum and Riser fire alarm cables FPLP and FPLR, ranging from 18 AWG to 12 AWG solid bare copper conductors. These fire cables are flexible for easy installation. With our commitment to quality and dependability our cables are UL, ETL Listed and RoHS Compliant. Plenum rated fire cables means it can be run in the area between floors that is used as duct area or other air space. Plenum refers to the material used in the jacket of the cable burns less than non-plenum cables.

Why Plenum?

A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.

Features

Features

  • Low Smoke Generating FT6 FPLP Rated PVC Jacket
  • Sequential Footage Markings on Jacket
  • Unshielded
  • UL Listed
  • RoHS Compliant
  • Voltage Rating: 300V
  • Temperature Rating: 75°C
  • Made in USA
Applications
  • Fire Alarm Wiring
  • Fire Protection
  • Signals
  • Monitoring and Detection Systems
  • Audio Circuits
  • Notifications Circuits
  • Control Circuits
  • Initiating Circuits

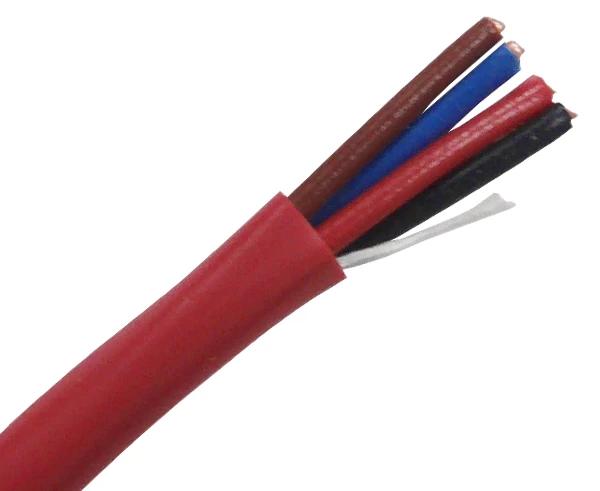

Conductor Insulation Colors
  1. Black
  2. Red
  3. Brown
  4. Blue

Specifications

Specifications


Physical Construction

Inner Conductor Solid Bare Copper
Conductor Size 14 AWG
Insulation Low Smoke PVC
(0.012 in)
Nominal OD 4C = 6.27 mm (0.247 in.)
Outer Jacket thickness .381mm (0.015in.)
Jacket Low Smoke PVC
Jacket Color Red
Shielding N/A

Electrical Characteristics

Temperature 75℃
Voltage Rating 300 V
Color Mode Black
Red
Brown
Blue

Additional Information

Additional Information

To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.

To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.

What's in the Box

What's in the Box

  • Plenum (FPLP) Red Fire Alarm Cable, 14/4 AWG Solid Bare Copper Conductors
  • Qty - (1) 1000 Ft
