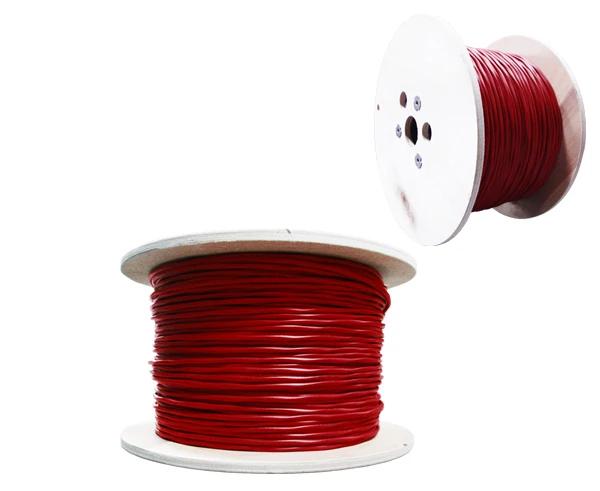

Fire Alarm Cable - FPLP - Unshielded Plenum, with 16/4 AWG Solid Bare Copper Conductors, featuring a Red Jacket, available in a 1000-foot length.

$487.50
SKU: FA3-1990/164
Various lead times may apply to this product. Please contact us for more details.
UL Listed    RohHS Compliant    ETL_Listed    Made in USA

Description

FPLP Cable for any Power-Limited Fire Alarm System

Utilize the Plenum FPLP fire alarm cable, featuring 18/6 AWG bare copper conductors and a PVC jacket designed to minimize smoke generation. This versatile fire alarm cable is ideal for various applications, including smoke alarms/detectors and other protection systems. Ensure peace of mind by choosing UL, ETL-Listed, and RoHS-compliant cables.

Fire Alarm Applications

There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, microprocessor-controlled systems, pull boxes (fire alarm signals), burglar alarms, and other low-voltage applications. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.

Fire Alarm Cable Products

We offer a variety of shielded and unshielded Plenum, Non-Plenum, and Riser fire alarm cables, including FPLP and FPLR, with solid bare copper conductors ranging from 18 AWG to 12 AWG. These fire cables are flexible for easy installation. With our commitment to quality and dependability, our cables are UL, ETL Listed, and RoHS Compliant. Plenum-rated fire cables can be run in the area between floors, such as duct areas or other air spaces. Plenum refers to the material used in the jacket of the cable, which burns less than non-plenum cables.

Why Plenum?

A plenum space is an open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.

Features

Features

  • Low Smoke Generating FT6 Plenum Rated PVC Jacket
  • Sequential Footage Markings on Jacket
  • Unshielded
  • UL Listed
  • RoHS Compliant
  • Voltage Rating: 300V
  • Temperature Rating: 75°C
  • Made in USA

Applications

  • Fire Alarm Wiring
  • Fire Protection
  • Signals
  • Monitoring and Detection Systems
  • Audio Circuits
  • Notifications Circuits
  • Control Circuits
  • Initiating Circuits

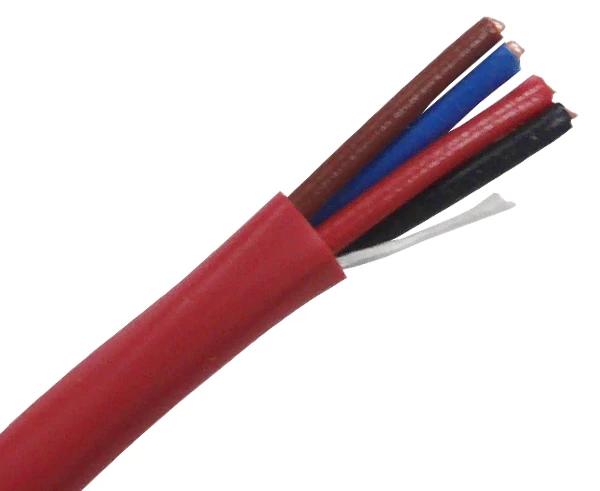

Conductor Insulation Colors

  1. Black
  2. Red
  3. Brown
  4. Blue

Specifications

Specifications


Physical Construction

Inner Conductor Solid Bare Copper
Conductor Size 16 AWG
Insulation Low Smoke PVC
(0.08 in.)
Nominal OD 4C = 4.88 mm (0.192in.)
Jacket Thickness .381mm (0.015in.)
Jacket Low Smoke PVC
Jacket Color Red
Shielding N/A

Electrical Characteristics

Temperature 75℃
Voltage Rating 300 V
Color Mode Black
Red
Brown
Blue

Additional Information

Additional Information

To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.

To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.

What's in the Box

What's in the Box

  • Fire Alarm Cable Plenum (FPLP) Red Jacket, 16/4 Solid BC Conductors
  • Qty - (1) 1000 Ft
