Description
FPLP Alarm Cable for Smoke Detectors and Voice Communications

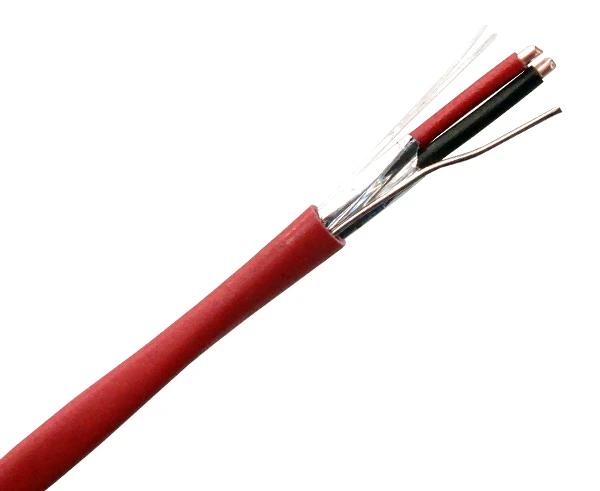

The Shielded Plenum (FPLP) Fire Alarm Cable features two 16 gauge solid bare copper conductors including aluminum mylar shielding over the conductors. It is encased with a low smoke PVC red jacket and equipped with a 24 gauge drain wire. The shielding provides protection against unwanted system noise. Sequential footage markings on the jacket facilitate an efficient installation process, allowing you to easily monitor the remaining cable length.
When it comes to safeguarding lives, investing in top-tier fire alarm cables is crucial. We, as a reputable industry name, exclusively provide high-quality products. The significance of fire alarm cables lies in their role during emergencies. In the event of a fire, these cables enable the fire alarm system to activate sprinklers and trigger smoke alarms, alerting people to evacuate the premises promptly. Choose a trusted source for your fire alarm cables to ensure the utmost reliability when lives are at stake.
Fire Alarm Applications
There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, microprocessor controlled systems, pull boxes (fire alarm signals), burglar alarms, and other low voltage applications. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.
Fire Alarm Cable Products
We offer a variety of shielded and unshielded Plenum, Non-Plenum and Riser fire alarm cables FPLP and FPLR, ranging from 18 AWG to 12 AWG solid bare copper conductors. These fire cables are flexible for easy installation. With our commitment to quality and dependability our cables are UL, ETL Listed and RoHS Compliant. Plenum rated fire cables means it can be run in the area between floors that is used as duct area or other air space. Plenum refers to the material used in the jacket of the cable burns less than non-plenum cables.
The Plenum (FPLP) Fire Alarm Cable has two 12 gauge solid bare copper conductors. This plenum FPLP fire alarm cable has a low smoke PVC jacket safe for installation through environmental airflow spaces. Sequential footage markings on the jacket help facilitate the installation process, as you always know how much cable is remaining.
Why Plenum?
A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
Features
Features
- Low smoke generating FT6 plenum rated PVC jacket
- Sequential footage markings on jacket
- Aluminum mylar shielding
- UL Listed
- ETL listed
- RoHS Compliant
- Voltage rating: 300V
- 24 gauge drain wire
- Temperature rating: 75°C
- Made in USA
Applications
- Fire alarm wiring
- Fire protection
- Signals
- Monitoring and detection systems
- Audio circuits
- Notifications circuits
- Control circuits
- Initiating circuits
Conductor Insulation Colors
- Black
- Red
Specifications
| Physical Construction | |
|---|---|
| Inner Conductor | Solid Bare Copper |
| Conductor Size | 16 AWG |
| Insulation | Low Smoke PVC (0.010 in.) |
| Nominal OD | 2C = 4.47 mm (0.176 in.) |
| Outer Jacket Diameter | .381mm (0.015in.) |
| Jacket | Low Smoke PVC |
| Jacket Color | Red |
| Shielding | Aluminum with Mylar |
| Electrical Characteristics | |
|---|---|
| Temperature | 75℃ |
| Voltage Rating | 300 V |
| Color Mode | Black Red |
Additional Information
To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.
To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.
What's in the Box
What's in the Box

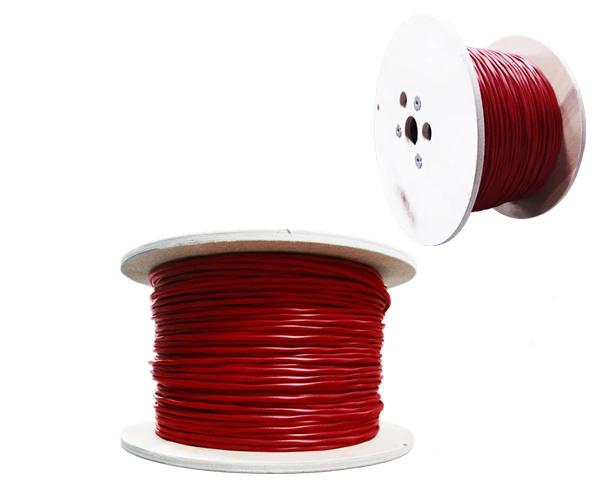

- Qty 1 - FPLP Fire Alarm Cable Plenum Shielded, 16/2 AWG Solid Bare Copper Conductors, Red PVC Jacket (1000 Ft)
