FPLR Alarm Cable for Your Smoke Detectors

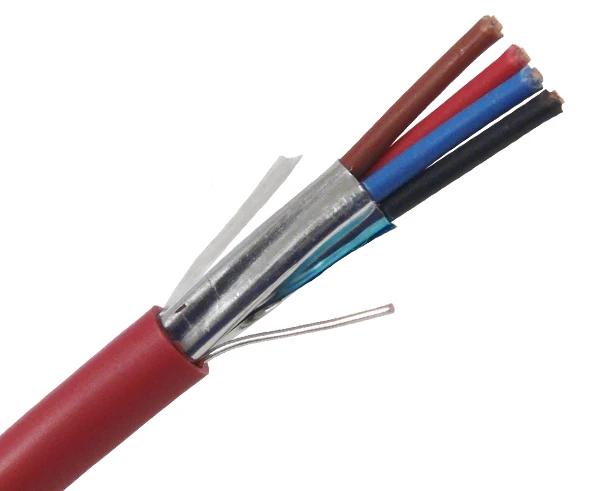

The Shielded Riser (FPLR) Fire Alarm Cable features solid bare copper conductors available in 12, 14, 16, and 18 gauge sizes. This FPLR cable for risers is equipped with aluminum mylar shielding over the conductors and a low-smoke PVC jacket, accompanied by a 24 gauge drain wire.Its shielding efficiently guards against system noise, while sequential footage markings on the jacket simplify the monitoring of the remaining cable length.
Prioritizing top-tier fire alarm cables is imperative for protecting lives. As a reputable industry leader, we specialize in delivering high-quality products exclusively. Fire alarm cables play a pivotal role during emergencies, facilitating the activation of sprinklers and smoke alarms for timely evacuation. Choose a trusted source like us for your fire alarm cables to ensure utmost reliability when lives are on the line.
Fire Alarm System Applications
There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, microprocessor-controlled systems, pull boxes (fire alarm signals), burglar alarms, and other low-voltage applications. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.
Fire Alarm Products
We offer a variety of shielded and unshielded Plenum, Non-Plenum, and Riser fire alarm cables FPLP and FPLR, ranging from 18 AWG to 12 AWG solid bare copper conductors. These fire cables are flexible for easy installation. With our commitment to quality and dependability, our cables are UL, ETL Listed, and RoHS Compliant. Plenum-rated fire cables means it can be run in the area between floors that is used as duct area or other air space. Plenum refers to the material used in the jacket of the cable that burns less than non-plenum cables.
Features
Features
- FT4 riser-rated PVC jacket
- Sequential footage markings on jackets
- UL Listed
- ETL listed
- RoHS Compliant
- Aluminum mylar shielding
- Voltage rating: 300V
- 24 gauge drain wire
- Temperature rating: 75°C
- Made in USA
Specifications
Specifications
| Physical Construction | |
|---|---|
| Inner Conductor | Solid Bare Copper |
| Conductor Size | 14 AWG |
| Insulation | PVC (0.012 in.) |
| Nominal OD | 6.48 mm (0.255 in.) |
| Outer Jacket Diameter | .381mm (0.015in.) |
| Jacket | PVC |
| Jacket Color | Red |
| Shielding | Aluminum with Mylar |
| Electrical Characteristics | |
|---|---|
| Temperature | 75℃ |
| Voltage Rating | 300 V |
| Color Mode | Black Red Brown Blue |
Additional Information
Additional Information
To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.
Applications
- Fire alarm wiring
- Fire protection
- Signals
- Monitoring and detection systems
- Audio circuits
- Notifications circuits
- Control circuits
- Initiating circuits
Conductor Insulation Colors
- 1. Black
- 2. Red
- 3. Brown
- 4. Blue
What's in the Box
What's in the Box

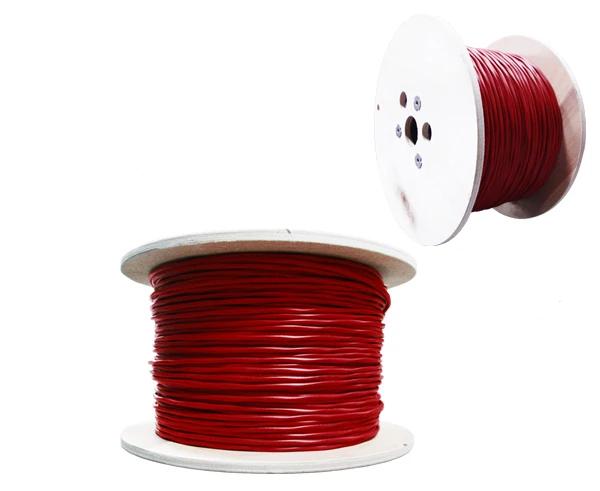

- Qty 1 - Fire Alarm Cable (FPLR) Riser Shielded, 14/4 AWG Solid Bare Copper Conductors, Red PVC Jacket (1000 Feet)
