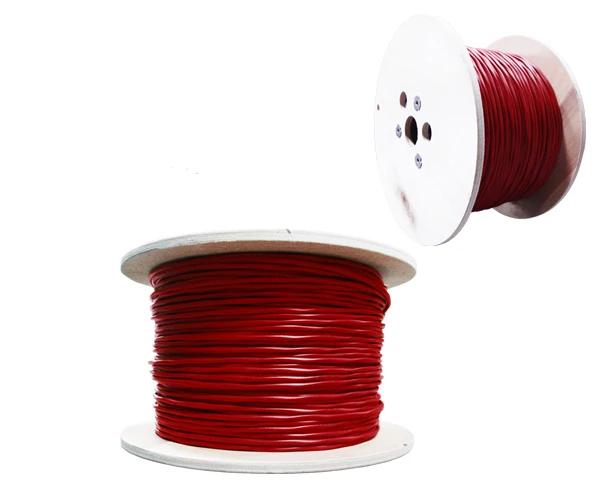

Fire Alarm Cable: FPLR - Shielded Riser, 16/4 AWG Solid Copper, Red PVC Jacket, 1000-Foot Length

$529.57
SKU: FA2-1975/164
Various lead times may apply to this product. Please contact us for more details.
UL Listed    RohHS Compliant    ETL_Listed    Made in USA

Description

FPLR 16/4 Cable for your Alarm System

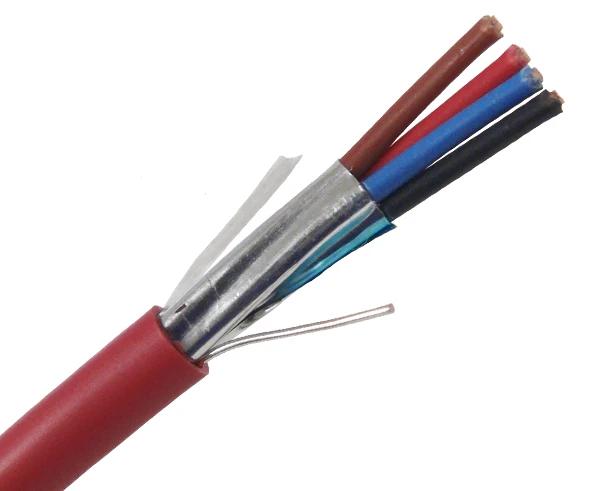

The Shielded Riser (FPLR) Fire Alarm Cable offers solid bare copper conductors in various sizes from 12 to 18 gauge. This FPLR cable features aluminum mylar shielding over the conductors and a low-smoke PVC jacket, complete with a 24 gauge drain wire. Its shielding effectively protects against unwanted system noise, while sequential footage markings on the jacket streamline installation and allow for easy monitoring of the remaining cable length.

When it comes to prioritizing life safety, investing in top-tier fire alarm cables is paramount. As a trusted industry leader, we specialize in providing exclusively high-quality products. The critical importance of fire alarm cables becomes evident during emergencies. In the event of a fire, these cables enable the fire alarm system to activate sprinklers and trigger smoke alarms, prompting swift evacuation. Choose a reputable source for your fire alarm cables to ensure the utmost reliability when lives are on the line.

Fire Alarm System Applications

There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, microprocessor-controlled systems, pull boxes (fire alarm signals), burglar alarms, and other low-voltage applications. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.

Fire Alarm Products

We offer a variety of shielded and unshielded Plenum, Non-Plenum and Riser fire alarm cables FPLP and FPLR, ranging from 18 AWG to 12 AWG solid bare copper conductors. These fire cables are flexible for easy installation. With our commitment to quality and dependability our cables are UL, ETL Listed and RoHS Compliant. Plenum-rated fire cables means it can be run in the area between floors that is used as duct area or other air space. Plenum refers to the material used in the jacket of the cable that burns less than non-plenum cables.

Features

Features

  • FT4 riser-rated PVC jacket
  • Sequential footage markings on jacket
  • ETL listed
  • RoHS Compliant
  • Aluminum mylar shielding
  • Voltage rating: 300V
  • 24 gauge drain wire
  • Temperature rating: 75°C
  • Made in USA

Applications

Applications

  • Fire alarm wiring
  • Fire protection
  • Signals
  • Monitoring and detection systems
  • Audio circuits
  • Notifications circuits
  • Control circuits
  • Initiating circuits

Conductor Insulation Colors

  • 1. Black
  • 2. Red
  • 3. Brown
  • 4. Blue

Specifications

Specifications


Physical Construction

Inner Conductor Solid Bare Copper
Conductor Size 16 AWG
Insulation PVC
(0.010 in.)
Nominal OD 5.21 mm (0.205 in.)
Outer Jacket Diameter .381mm (0.015in.)
Jacket PVC
Jacket Color Red
Shielding Aluminum with Mylar

Electrical Characteristics

Temperature 75℃
Voltage Rating 300 V
Color Mode Black
Red
Brown
Blue

Additional Information

Additional Information

To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.

What's in the Box

What's in the Box

  • Fire Alarm Cable (FPLR) Riser Shielded, 16/4 AWG Solid Bare Copper Conductors, Red PVC Jacket
  • 1000Ft
