FPLR Shielded Riser Cable for Smoke Detectors and Fire Alarm Systems

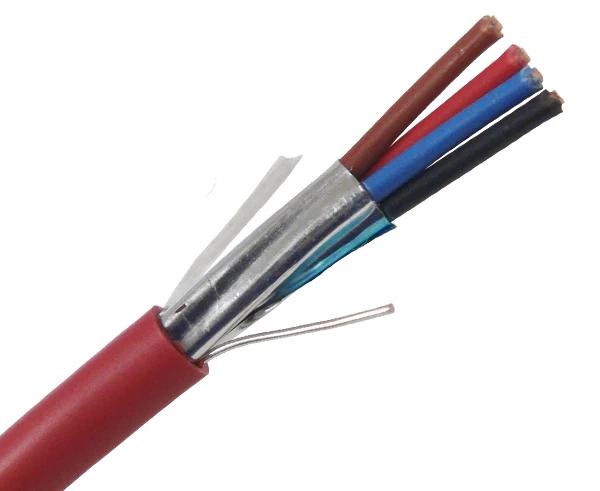

The Shielded Riser (FPLR) Fire Alarm Cable features solid bare copper conductors in 12, 14, 16, and 18 gauge sizes. Its aluminum mylar shielding and low-smoke PVC jacket provide protection against system noise. With a 24 gauge drain wire and sequential footage markings, installation is efficient. Trust our high-quality products for prompt evacuation during emergencies, ensuring utmost reliability in critical situations.
Fire Alarm System Applications
There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, microprocessor-controlled systems, pull boxes (fire alarm signals), burglar alarms, and other low-voltage applications. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.
Fire Alarm Products
We offer a variety of shielded and unshielded Plenum, Non-Plenum, and Riser fire alarm cables FPLP and FPLR, ranging from 18 AWG to 12 AWG solid bare copper conductors. These fire cables are flexible for easy installation. With our commitment to quality and dependability, our cables are ETL Listed and RoHS Compliant. Plenum-rated fire cables means it can be run in the area between floors that is used as duct area or other air space. Plenum refers to the material used in the jacket of the cable, which burns less than non-plenum cables.
Features
Features
- FT4 riser-rated PVC jacket
- Sequential footage markings on jacket
- ETL listed
- RoHS compliant
- Aluminum mylar shielding
- Voltage rating: 300V
- 24 gauge drain wire
- Temperature rating: 75°C
- Made in USA
Applications
- Fire alarm wiring
- Fire protection
- Signals
- Monitoring and detection systems
- Audio circuits
- Notifications circuits
- Control circuits
- Initiating circuits
Conductor Insulation Colors
- 1. Black
- 2. Red
- 3. Brown
- 4. Blue
Specifications
Specifications
| Physical Construction | |
|---|---|
| Inner Conductor | Solid Bare Copper |
| Conductor Size | 18 AWG |
| Insulation | PVC (0.010 in.) |
| Nominal OD | 4.57 mm (0.180 in.) |
| Outer Jacket Thickness | .381mm (0.015in.) |
| Jacket | PVC |
| Jacket Color | Red |
| Shielding | Aluminum with Mylar |
| Electrical Characteristics | |
|---|---|
| Temperature | 75°C |
| Voltage Rating | 300 V |
| Color Mode | Black Red Brown Blue |
Additional Information
Additional Information
To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.
What's in the Box
What's in the Box

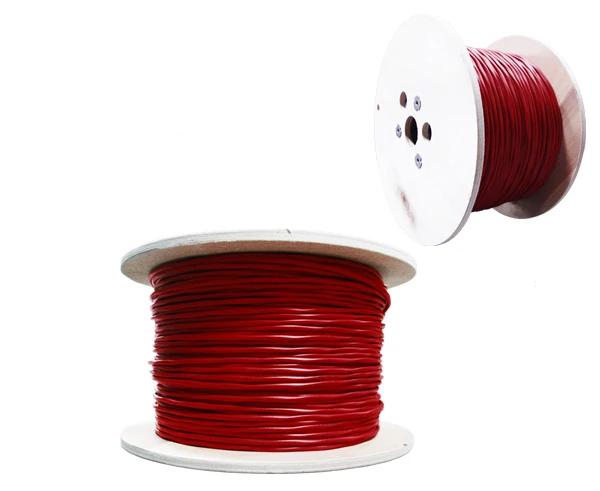

- Qty 1 - Fire Alarm Cable: FPLR Riser Shielded, 18/4 AWG Solid Bare Copper Conductors, Red PVC Jacket (1000 Ft)
