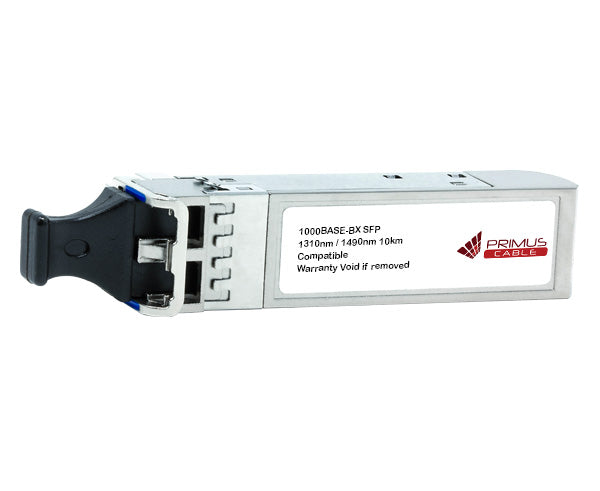

1000BASE-BX SFP Single Mode Fiber DOM
The SFP optical transceivers are specifically designed to be fully compatible and functional with its brand's own designated switching devices. Built on the Gigabit Ethernet IEEE 802.3 standard, this module adheres to the SFF-8472 SFP Multi-Source Agreement (MSA), ensuring reliable performance and interoperability. Designed for multimode fiber, it operates at a nominal wavelength of light emitted by the transmitter (TX) part of a transceiver or wavelength of light received by the receiver (RX) part of the transceiver, delivering high-speed data transmission with optimal efficiency.
Features
Features
- Up to 1 GbE
- Hot-pluggable SFP footprint
- Duplex LC connector
- Single power supply 3.3V
Compliance
- IEEE 802.3z Gigabit Ethernet
- SFP MSA SFF-8472
- RoHS Compliant
- Class 1 laser product EN 60825
Specification
Specification
| BXD 10km | BXD 20km | BXD 30km | |
| SKU's | GLC-BX-D-PC SFP-1G-BXD-PC |
GLC-BX-D20-PC SFP-1G-BXD20-PC |
GLC-BX-D40-PC SFP-1G-BXD40-PC |
| Form Factor | SFP | SFP | SFP |
| Max Data Rate | 1GbE | 1GbE | 1GbE |
| Wavelength | 1490nm-TX / 1310nm-RX | 1490nm-TX / 1310nm-RX | 1490nm-TX / 1310nm-RX |
| Max Cable Distance | 10km over SMF | 20km over SMF | 40km over SMF |
| Connector | 1 X LC Duplex UPC | 1 X LC Duplex UPC | 1 X LC Duplex UPC |
| DOM Support | Yes | Yes | |
| Power Supply | 3.3v | 3.3v | 3.3v |
| Operational C-Temperature Range | 0°C ~ +70°C | 0°C ~ +70°C | 0°C ~ +70°C |
| BXU 10km | BXU 20km | BXU 30km | |
| SKU's | GLC-BX-U-PC SFP-1G-BXU-PC |
GLC-BX-U20-PC SFP-1G-BXU20-PC |
GLC-BX-U40-PC SFP-1G-BXU40-PC |
| Form Factor | SFP | SFP | SFP |
| Max Data Rate | 1GbE | 1GbE | 1GbE |
| Wavelength | 1310nm-TX / 1490nm-RX | 1310nm-TX / 1490nm-RX | 1310nm-TX / 1490nm-RX |
| Max Cable Distance | 10km over SMF | 20km over SMF | 40km over SMF |
| Connector | 1 X LC Duplex UPC | 1 X LC Duplex UPC | 1 X LC Duplex UPC |
| DOM Support | Yes | Yes | Yes |
| Power Supply | 3.3v | 3.3v | 3.3v |
| Operational C-Temperature Range | 0°C ~ +70°C | 0°C ~ +70°C | 0°C ~ +70°C |
What's in the Box
What's in the Box
- Qty 1 – 1000Base-BX SFP Single Mode Fiber DOM
