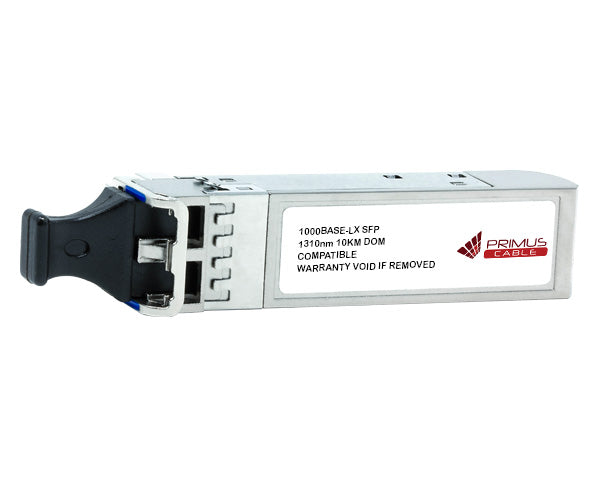

1000BASE-LX SFP Single Mode Fiber 1310nm DOM
The SFP optical transceiver is fully programmed for seamless compatibility with Cisco switching devices. Built on the Gigabit Ethernet IEEE 802.3 standard, this module adheres to the SFF-8472 SFP Multi-Source Agreement (MSA), ensuring reliable performance and interoperability. Designed for multimode fiber, it operates at a nominal wavelength of 1310nm, delivering high-speed data transmission with optimal efficiency.
Features
Features
- Up to 1 GbE
- Hot-pluggable SFP footprint
- 1310nm Fabry-Perot laser transmitter
- Duplex LC connector
- Built-in digital diagnostic function
- Up to 10km over SMF
- Single power supply 3.3V
Compliance
- IEEE 802.3z Gigabit Ethernet
- SFP MSA SFF-8472
- RoHS Compliant
- Class 1 laser product EN 60825
Applications
- 1.25GBd Gigabit Ethernet
Specification
Specification
| SKU | 407-BBDC-PC |
| OEM Compatible Part# | 407-BBDC |
| Compatible OEM | Dell Compatible |
| Form Factor | SFP |
| Max Data Rate | 1GbE |
| Wavelength | 1310nm |
| Max Cable Distance | 10km over SMF |
| Connector | 1 X LC Duplex UPC |
| DOM Support | YES |
| Power Supply | 3.3v |
| Operational Temperature Range | 0°C to +70°C |
| SKU | 407-BBDC-PC |
| OEM Compatible Part# | 407-BBDC |
| Compatible OEM | Dell Compatible |
| Form Factor | SFP |
| Max Data Rate | 1GbE |
| Wavelength | 1310nm |
| Max Cable Distance | 10km over SMF |
| Connector | 1 X LC Duplex UPC |
| DOM Support | YES |
| Power Supply | 3.3v |
| Operational Temperature Range | 0°C to +70°C |
What's in the Box
What's in the Box
- Qty 1 – 1000BASE-LX/LH SFP Single Mode Fiber 1310nm DOM
