Description

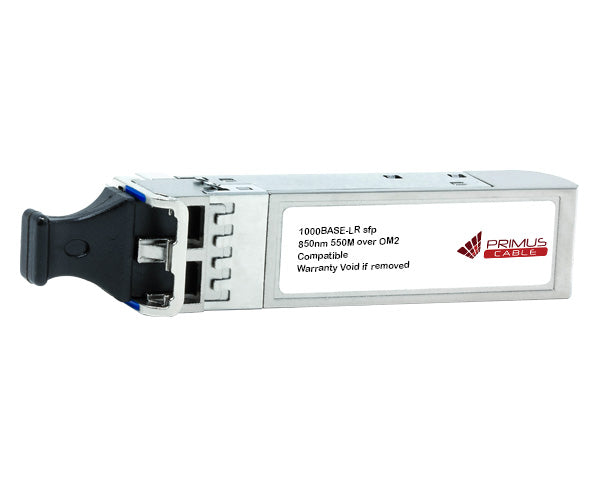

Advanced 1000Base SFP Module DOM supported
Designed for high-speed performance, this module supports bi-directional data links up to 11 GBd, ensuring reliable and efficient data transmission. Its hot-pluggable SFP+ footprint allows for seamless installation and replacement, making it highly adaptable. With AC-coupled inputs and outputs and a 100 Ohm differential impedance, it guarantees optimized signal integrity and stable connectivity. The enhanced EMI design minimizes electromagnetic interference, improving overall performance. Operating on a single 3.3V power supply, it remains energy-efficient while delivering exceptional functionality. Additionally, it supports a wide operating temperature range of 0°C to +70°C, ensuring reliable performance in diverse environments.
Features
Features
- Up to 1.25 GBd bi-directional data links
- Hot-pluggable SFP footprint
- 850nm VCSEL laser transmitter
- Duplex LC connector
- Built-in digital diagnostic function
- Single power supply 3.3V
Specification
Specification
| GLC-SX-MM-PC, 407-BBOR-PC, 407-BBDB-PC, SFP-1G-SX-PC | |
|---|---|
| Form Factor | SFP |
| Max Data Rate | 1GbE |
| Wavelength | 850nm |
| Max Cable Distance | 550M over OM2 MMF 300M over OM1 MMF |
| Connector | 1 X LC Duplex UPC |
| DOM Support | Yes |
| Power Supply | 3.3v |
| Operational Temperature Range | 0°C to +70°C |
| GGLC-SX-MMD-PC | |
|---|---|
| Form Factor | SFP |
| Max Data Rate | 1GbE |
| Wavelength | 850nm |
| Max Cable Distance | 550M over OM2 MMF 300M over OM1 MMF |
| Connector | 1 X LC Duplex UPC |
| DOM Support | Yes |
| Power Supply | 3.3v |
| Operational Temperature Range | -10°C to +85°C |
| GLC-SX-MMD-RGD-PC | |
|---|---|
| Form Factor | SFP |
| Max Data Rate | 1GbE |
| Wavelength | 850nm |
| Max Cable Distance | 550M over OM2 MMF 300M over OM1 MMF |
| Connector | 1 X LC Duplex UPC |
| DOM Support | Yes |
| Power Supply | 3.3v |
| Operational Temperature Range | -40°C to +85°C |
| GLC-SX-MMD-2K-PC | |
|---|---|
| Form Factor | SFP |
| Max Data Rate | 1GbE |
| Wavelength | 1310nm |
| Max Cable Distance | 2km over OM2 / OM1 MMF |
| Connector | 1 X LC Duplex UPC |
| DOM Support | Yes |
| Power Supply | 3.3v |
| Operational Temperature Range | -10°C to +85°C |
