Description
Description

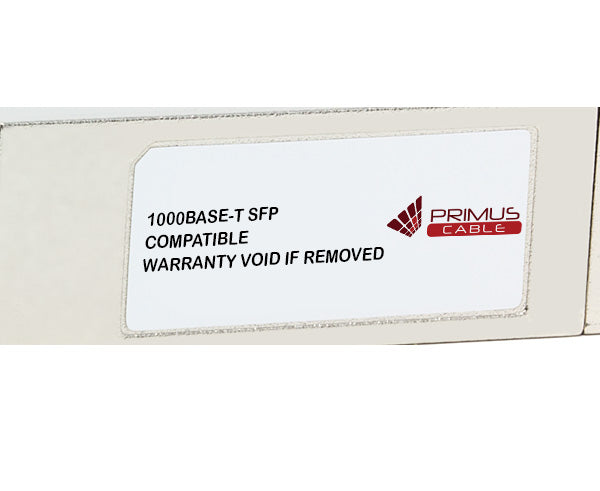

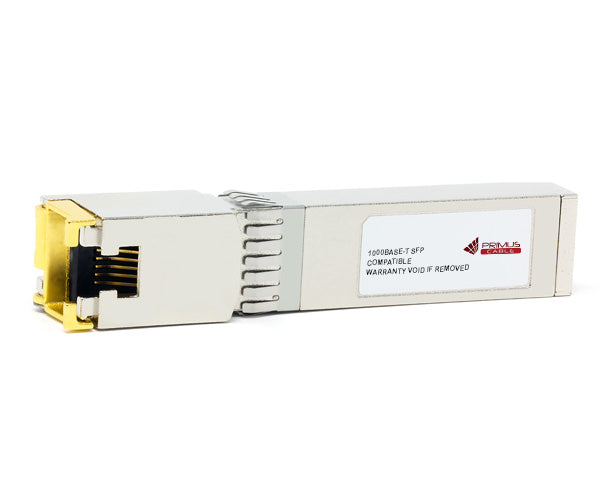

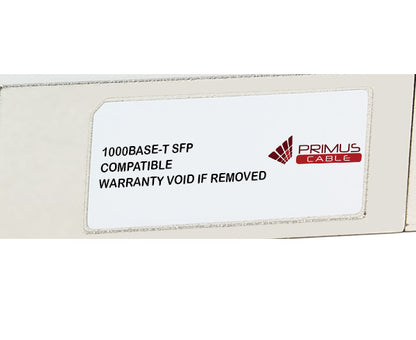

1000Base-T SFP RJ45 Connector
It is programmed to be fully compatible and functional with all intended switching devices. This SFP module is based on the Gigabit Ethernet IEEE 802.3 and 1000Base-T standard and is designed to be compliant with SFF-8472 SFP Multi-Source Agreement (MSA). This module is designed for copper wire cabling up to 100 meters.
Features
Features
- Up to 1 GbE
- Hot-pluggable SFP footprint
- Support 1000Base-T full duplex default
- Support 10/100/1000Base-T operation in the host with SGMII
- RJ-45 Connectors
- Auto-sense MDI/ MDIX
- Up to 100M over copper wire cabling
- Single power supply 3.3V
Compliance
- IEEE 802.3z, IEEE 802.3u, IEEE802.3ab
- SFP MSA SFF-8472
- RoHS Compliant
Applications
- 1.25GBd Gigabit Ethernet
Specification
Specification
| Form Factor | SFP |
| Max Data Rate | 1GbE |
| Wavelength | N/A |
| Max Cable Distance | 100M over Copper |
| Connector | 1x RJ-45 |
| DOM Support | N/A |
| Power Supply | 3.3v |
| Operational Temperature Range | C-temp 0°C to 70°C |
| GLC-T-RGD-PC | |
|---|---|
| Compatible OEM | Cisco Compatible |
| Form Factor | SFP |
| Max Data Rate | 1GbE |
| Wavelength | N/A |
| Max Cable Distance | 100M over Copper |
| Connector | 1x RJ-45 |
| DOM Support | N/A |
| Power Supply | 3.3v |
| Operational Temperature Range | I-Temp -40°C to 85°C |
What's in the Box
What's in the Box
- Qty 1 – 1000Base-T SFP RJ45 Connector
