Description

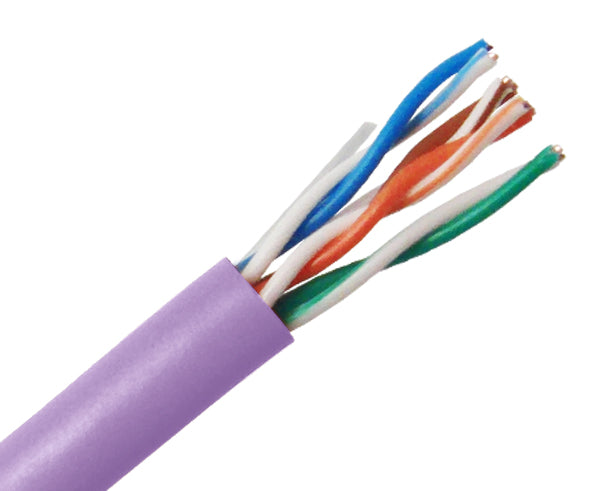

CAT5E Riser Bulk Ethernet Cable, CMR UL Listed Solid Copper UTP, 24 AWG 1000FT
Elevate your indoor voice, data, video, and security networking with our CAT5E Riser Rated Cable. Whether it's for your home, office, or entire campus, we offer tailored network solutions.
This UL-listed CAT5E CMR Rated Riser Cable ensures reliable indoor installations. Featuring 8 solid bare copper conductors (4-pairs) with high-density polyethylene (HDPE) insulation and a UL PVC jacket, it's ideal for indoor LAN applications. Tested up to speeds of 350MHz, it's perfect for installations in walls or non-plenum areas.
Committed to delivering high-quality bulk Ethernet cables, our cables meet and exceed CAT5E ANSI/TIA-568.2-D standards. They're also manufactured to meet current CAT5E guidelines and are verified by esteemed outside standards organizations including c(UL)us, while being RoHS Compliant.
Technical Diagram
Cat 5E Bulk Cable Options
| Stranded Copper UTP | Stranded Copper F/UTP | Solid Copper UTP | Solid Copper F/UTP | |||||
| General (CM) | General (CM) | General (CM) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) |
Cat 6 Bulk Cable Options
| Stranded Copper UTP | Stranded Copper F/UTP | Solid Copper UTP | Solid Copper F/UTP | Solid Copper S/FTP | ||||||
| General (CM) | General (CM) | General (CM) | Outdoor (CMX) | 24AWG Riser (CMR) | 23AWG Riser (CMR) | Plenum (CMP) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) | General (CM) |
Features
Features
- High-Performance Data Communications Cable
- Category 5E CMR Riser Rated Cable
- Suitable for 350MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet, and 155Mbps TP-PMD/CDDI
- Designed for Indoor Riser-Rated Installations
- Category-5E Unshielded Twisted Pair (UTP) Cable
- 4-Pair Easily Identified Color Striped Pairs
- 24 AWG Solid Bare Copper Conductors
- Excellent Attenuation and Crosstalk Characteristics
- UL Listed
- ANSI/TIA-568.2-D, RoHS Compliant
- Sequential Length Markings on Jacket
- Supplied in a 1000' Pull Box
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| PHYSICAL CHARACTERISTICS | |
| Conductor Size | 24AWG |
| Conductor Material | Solid Bare Copper |
| Insulation Material | High Density Polyethylene |
| Insulation Diameter | 0.893 ± 0.03mm |
| Number of Conductors | 8 Conductors |
| Number of Pairs | 4 Pairs |
| Outer Shield Material | N/A |
| Drain Wire | No |
| Outer Jacket Material | CMR-UL PVC (Complies RoHS) |
| Outer Jacket Diameter | 4.9mm ± 0.3mm |
| Outer Jacket Rip Cord | Yes |
| PAIR COLOR CODE CHART | |
| Pair 1 | White/Blue Stripe & Blue |
| Pair 2 | White/Orange Stripe & Orange |
| Pair 3 | White/Green Stripe & Green |
| Pair 4 | White/Brown Stripe & Brown |
| MECHANICAL CHARACTERISTICS | |
| Storage Temperature Range | 0 ~ +30°C |
| Installation Temperature Range | 0 ~ +50°C |
| Operating Temperature Range | -20 ~ +60°C |
| Bulk Cable Length | 1000FT |
| Max. Recommended Pulling Tension | N/A |
| Min. Bend Radius/Minor Axis | N/A |
| Min. Bend/Installation | N/A |
| Test Object | Jacket |
| Test Material | PVC |
| Before Tensile Strength | ≥13.5 |
| Aging Elongation | ≥150 |
| Aging Condition | 100°C for 168 Hrs. |
| After Tensile Strength | ≥12.5 |
| Min Aging Elongation Retention | 75% |
| Min Tensile Strength Retention | 75% |
| Cold Bend | N/A |
| ELECTRICAL CHARACTERISTICS | |
| Unbalanced to Ground Capacitance Max | N/A |
| Nominal Velocity of Propagation | N/A |
| Maximum Delay | 491 @ 100MHz (ns/100m) |
| Maximum Delay Skew | N/A |
| Maximum Conductor DC Resistance | 9.38Ω/100m @ 20°C |
| Maximum Operating Voltage - UL | 300V RMS |
| Maximum DCR Unbalanced | 2% (@ 20°C) |
| Attenuation (Maximum) | 21.0dB/100m @ 100MHz 43.4dB/100m @ 350MHz |
| 1.0 - 100MHz Impedance | 100 ± 15Ω |
| NEXT (Minimum) | 32.3dB/100m @ 100MHz 23.3dB/100m @ 350MHz |
| PS-NEXT (Minimum) | 29.3dB/100m @ 100MHz 20.3dB/100m @ 350MHz |
| Return Loss (Minimum) | 12.0dB/100m @ 100MHz 6.6dB/100m @ 350MHz |
| JACKET PRINTING | |
| Printing | E317493 CAT5E UTP SLD 4PR 24AWG 350MHz (UL) CMR (VID:007) ETL VERIFIED TO ANSI/TIA-568.2-D XXXXFT |
Additional Information
Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.
CMR: The 'R' in CMR is for 'Riser'. Riser-type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin-producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
To learn more about our CAT5E Riser Rated CMR Ethernet Cable please visit our product overview page.
Our UL Listed CAT5E Riser Rated CMR Ethernet Cable is compatible with our:
- CAT5E Patch Cables
- CAT5E Modular Plugs
- CAT5E Keystone Jacks
- Blank Patch Panels
- CAT5E Patch Panels
- Wall Plates
- Tools
- Testers
- Cable Management Accessories
What’s In The Box
What’s In The Box
- UL Listed CAT5E CMR Rated Ethernet Cable Supplied In 1000ft Lengths In A Pull Box
