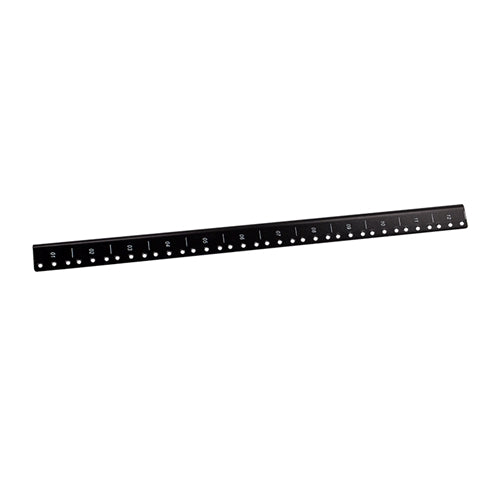

Heavy-Duty Rear Support Rails for High-Density Wall Cabinets – Set of 2
Upgrade your network installation with our 12-24 Tapped Rails, designed specifically for High Density Wall Cabinets requiring secure front and rear equipment mounting. These rails are made from durable cold rolled steel and feature a black powder-coated finish for maximum strength and corrosion resistance. Available in 12U, 15U, 18U, and 25U, each set includes two rails with EIA-standard 1.75" hole spacing, and clearly marked RU spaces for streamlined setup. Fully RoHS and EIA compliant, they ensure a professional-grade installation every time.
Perfect for supporting extra-heavy equipment in your wall cabinet setup, these rails are compatible with 12-24 Phillips head mounting screws and washers and are available now at Primus Cable.
Features
Features
- Sold as a set of 2 rails
- Available sizes: 12U, 15U, 18U, 25U
- Constructed from cold rolled steel for added durability
- Black powder-coated finish for corrosion resistance
- EIA-compliant 1.75" hole spacing

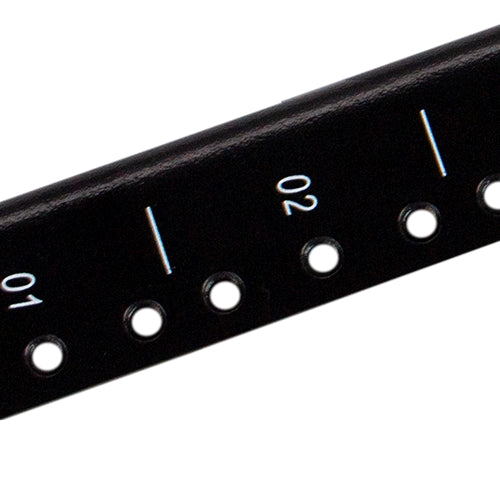

- RU spaces marked and numbered for fast installation
- RoHS compliant for environmental safety
- Compatible with 12-24 Phillips head screws and washers
- Designed for use with High Density Wall Cabinets
- Supports front and rear mounting of heavy equipment
Specifications
Specifications
|
Product Material |
12-24 Tapped Rails For High Density Wall Cabinet |
|
Frame Material |
Cold Rolled Steel |
|
Finish |
Black Powder Coated |
|
Dimensions (H x W x D) |
Varies By Item # |
|
Rack Unit Quantity |
12U, 15U, 18U or 25U |
|
Compatability |
Compatible with 12-24 Phillips Head Mounting Screws & Washers. |
|
Compliance & Standards |
RoHS, EIA Compliant |
|
Quantity Per Package: |
Set of 2 |
Additional Information
Additional Information

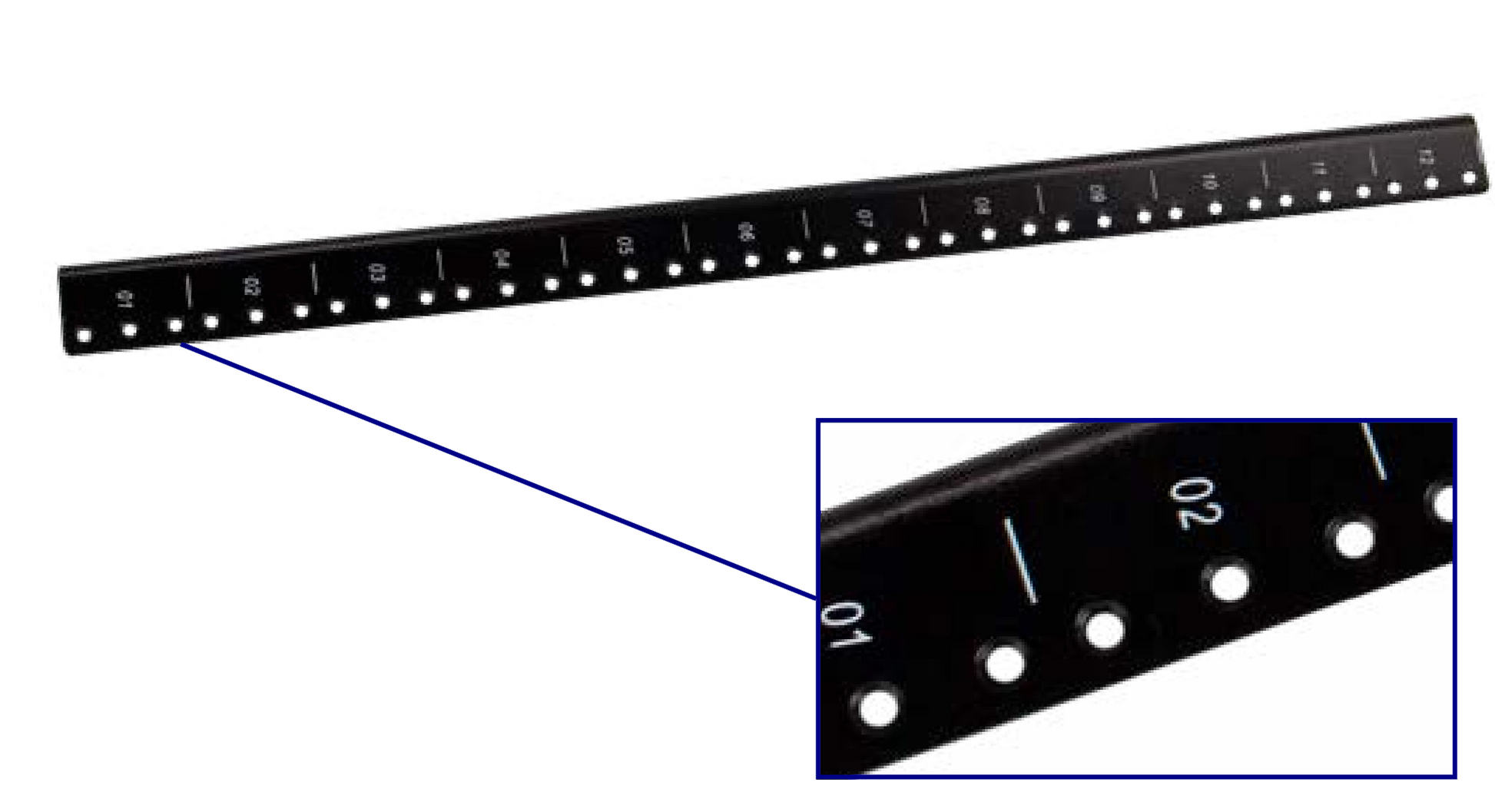

Technical Illustration
What's in the Box
What's in the Box
- Qty 1 -12-24 Tapped Rails (set of 2)
