This product is intended to be purchased by installers only
Description

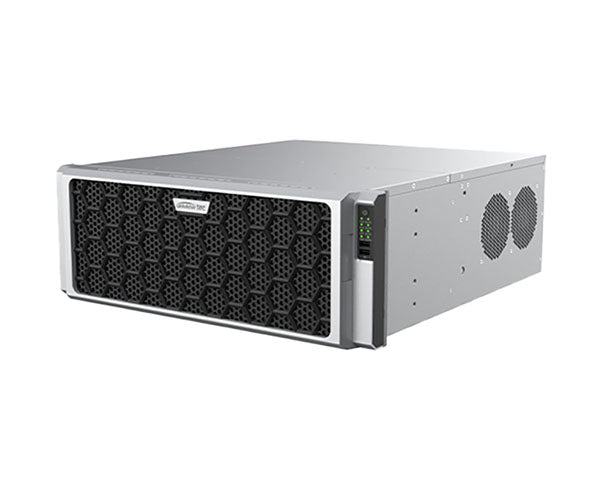

128ch High Capacity NVR with 4K Display, 24-Bay HDD, and Face Detection
The Uniview Tec 128-Channel Network Recorder delivers ultra-clear 4K video across all HDMI and VGA outputs. With support for up to 24 hot-swappable 12TB SATA HDDs and external storage expansion up to 384TB, it ensures massive recording capacity. H.265 compression and RAID technology optimize storage, while plug-and-play setup and automatic device discovery make installation effortless. Advanced video analytics, including face detection and people counting, enhance security, and cloud upgrades keep firmware up to date automatically.
Features
Features
- Fully adheres to National Defense Authorization Act (NDAA) guidelines
- 128ch network recorder with H.265 compression for best-in-class recording and storage performance
- Supports recording of up to 12MP (4000 x 3000) resolution images
- Display images up to 4k (3840 x 2160) resolution on both HDMI outputs
- Concurrent Independent Display on all HDMI and VGA Monitor Outputs
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Maximum internal storage of 24 SATA HDDs up to 12TB each for 288TB total, with HDD Hot Swap and RAID 0, 1, 5, 6, 10, 50, 60
- Supports optional external storage devices for up to an additional 384TB of external storage
- Supports ONVIF profile series compliant third party cameras
- Powerful video content analysis features such as Face Detection and People Counting
- Supports cloud upgrade for NVR and Uniview Tec cameras with automatic detection of latest firmware
- Supported by license-free Uniview Tec Guard Station Client Software and Guard Viewer Mobile Apps for iPhone and Android devices
- Optional Mini-SAS Disk Enclosures, Redundant Power Supply, and PoE Switches
Specifications
Specifications
| VIDEO | |
| IP Camera Inputs | 128 channels |
| Video Formats | Ultra 265, H.265, H.264 |
| Recording Video Resolution | 12MP Maximum |
| Playback Video Capability (fps) | 5 x 4K @ 30, 20 x 1080P @ 30, 24 x 1080P @ 25, 40 x 960P @ 25, 45 x 720P @ 30, 54 x 720P @ 25, 96 x D1 @ 25 |
| Monitor Outputs – Concurrent & Independent HDMI & VGA Only | 2 x HDMI (4K~ 720p); 1 x VGA (1080p ~ 720P); 1 x BNC |
| Synchronous Playback | 16 channels |
| NETWORK | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Bandwidth | Incoming – 768Mbps Outgoing – 768Mbps |
| Remote Users | 128 |
| Video Analytics | People Counting, Face and Behavior Search |
| GENERAL | |
| Network Interface | 4 x RJ45, 10M/100M/1000M, Adaptive Ethernet |
| Serial Interface | 1 x RS232, 1 x RS485 |
| USB Interface | Front panel: 2 x USB2.0; Rear panel: 2 x USB3.0 |
| Alarm Interface | 24ch – Inputs; 8ch - Output |
| Audio Interface | 1ch RCA Input / Output |
| Hard Disk | 24 SATA, up to 12TB each: total 288TB |
| eSATA | 1 port |
| Mini-SAS | 2 ports |
| Disk Array | RAID 0, 1, 5, 6, 10, 50, 60 |
| Power | 100-240VAC; 70W Consumption (w/o HDD) |
| Operating Temperature | -10°C ~ +55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH (non-condensing) |
| Rack Mountable | Yes; Shelf or Rails are Rec’d, but Not Included |
| Dimensions (WxDxH) | 533 × 484.6 × 175.5mm (21 × 19.1 × 6.9") |
| Weight (w/o HDD) | 12.5kg (27.56lb) |
| Conformity Certifications | FCC, CE (UL – Power Supply only) |
Additional Product Information
Additional Product Information
If an NVR is sent in for warranty repair with an after-market hard drive and the hard drive is found to be the issue, diagnosis and repair fees may apply.
