Description
Description

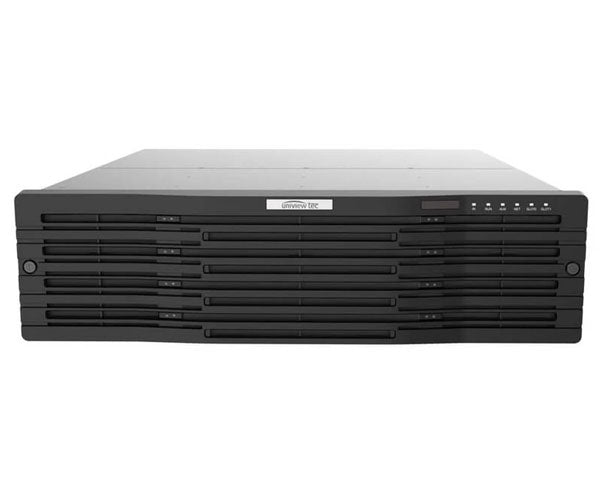

64ch NVR, 4K, HDMI, VGA, Audio, Alarm, USB, 16 HDD bays
This NVR from Uniview Tec features 64 channels with H.265 compression for best-in-class recording and storage performance. It supports up to 12MP resolution images and can display images up to 4k resolution on both of its HDMI outputs. With 16 SATA HDD bays each holding up to 10TB each, this NVR has a maximum internal storage of 160TB. This NVR all supports video wall applications of up to 15 monitors with optional HDMI decoder cards.
Features
Features
- 64ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Performance
- Supports recording of up to 12MP (4000 x 3000) Resolution Images
- Display Images up to 4k (3840 x 2160) Resolution on both HDMI Outputs
- Concurrent Independent Display on first HDMI and VGA Monitor Outputs
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Supports Video Wall Applications of up to 15 monitors with optional HDMI Decoder Cards
- The maximum internal storage of 16 SATA HDDs up to 10TB each for 160TB total, with HDD Hot-Swap and RAID 0, 1, 5, 6, 10, 50, 60
- Supports optional external storage devices for up to an additional 320TB of external storage
- Powerful Video Content Analysis Features such as Cross Line Detection, Audio Detection, Scene Change, People Counting
- Supports ONVIF Profile Series Compliant Third Party Cameras
- Supports Cloud Upgrade for NVR and Uniview Tec Cameras with Automatic Detection of Latest Firmware
- Supported by license-free Uniview Tec Guard Station Client Software and Guard Viewer Mobile Apps for iPhone and Android Devices
- Optional Mini-SAS Disk Enclosures and PoE Switches
- This product is NDAA Compliant
Specifications
Specifications
Additional Information
Additional Information
If an NVR is sent in for warranty repair with an after-market hard drive and the hard drive is found to be the issue, diagnosis and repair fees may apply.
What's in the Box
What’s in the Box
- Qty 1 - Uniview 12MP 64 Channel NVR unit
- Qty 1 - Power Adapter
- Qty 1 - Rack Mount Kit
- Qty 1 - Network Cable
- Qty 1 - USB Mouse
- Qty 1 - User Manual or Installation Guide
- Qty 1 - Protective Packaging (box or bag)
