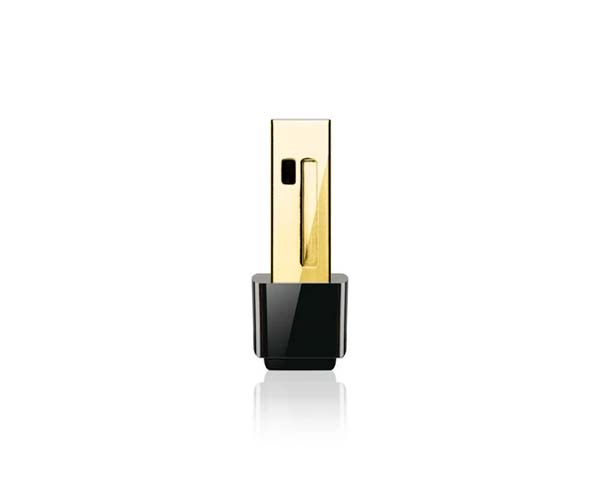

150Mbps Wireless N Nano USB Adapter
TP-LINK's 150Mbps wireless N Nano USB adapter, TL-WN725N allows users to connect a desktop or notebook computer to a wireless network at 150Mbps. This miniature adapter is designed to be as convenient as possible and once connected to a computer’s USB port, can be left there, whether traveling or at home. It also features advanced wireless encryption and easy installation.
Miniature Design
With its miniature size and sleek design, users can connect the nano adapter to any USB port and leave it there. There’s no need to worry about blocking adjacent USB interfaces or that the adapter may fall out when moving a connected laptop from place A to B, with the tiny device flush against the USB port.
Soft AP Mode
Turn a wired internet connection to a PC or Laptop into a Wi-Fi hotspot
Features
Features
- Sleek miniature design so small that once plugged in, can be left in a Laptop’s USB port
- Speedy wireless transmission at up to 150Mbps ideal for video streaming or internet calls
- Advanced Security: Supports 64/128 WEP, WPA, PA2/WPA-PSK/WPA2-PSK(TKIP/AES)
- Connect in no time with easy setup utility in 14 languages
Specifications
Specifications
| HARDWARE FEATURES |
|
|---|---|
| Interface | USB 2.0 |
| LED | Status |
| Weight | 0.07 ounces / 2.1 grams (without packaging) |
| Dimensions (W x D x H) | 0.73 x 0.59 x 0.28 in. (18.6 x 15 x 7.1mm) |
| Antenna | Internal Antenna |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency | 2.400 - 2.4835GHz |
| Signal Rate |
11b: Up to 11Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11n: Up to 150Mbps (dynamic) |
| Reception Sensitivity |
130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
| Transmit Power | <20dBm |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Supports 64/128 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES), supports IEEE 802.1X |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| GENERAL | |
|---|---|
| Certification | CE, FCC, IC, RoHS |
| Package Contents |
150Mbps Wireless N Nano USB Adapter (TL-WN725N) Quick Installation Guide |
| System Requirements |
Windows 10/8.1/8/7/XP, Mac OS X, Linux |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Additional Information
Additional Information
Installation Information
| Product Videos | |
|---|---|
HOW TO INSTALL A TP LINK USB WIRELESS NETWORK ADAPTER |
What’s In The Box
What’s In The Box
- Qty 1 - 150Mbps wireless N Nano USB adapter TL-WN725N
- Qty 1 - Resource CD
- Qty 1 - Installation Guide
