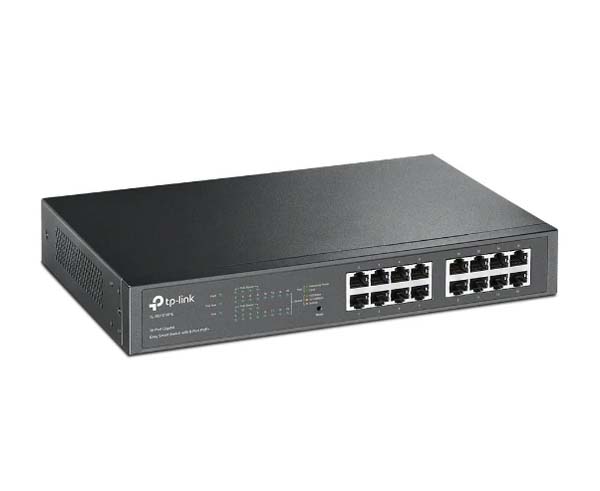

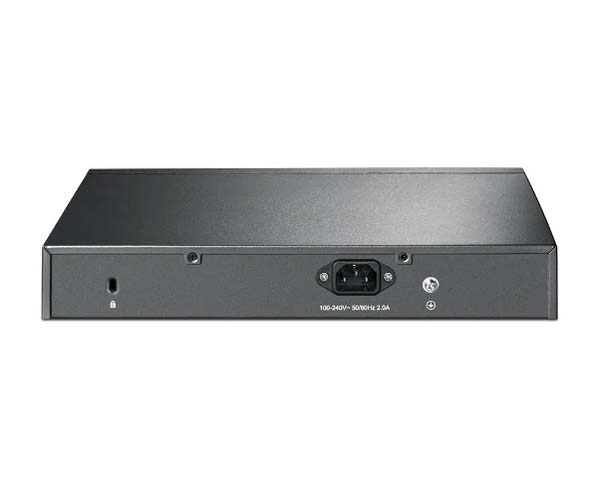

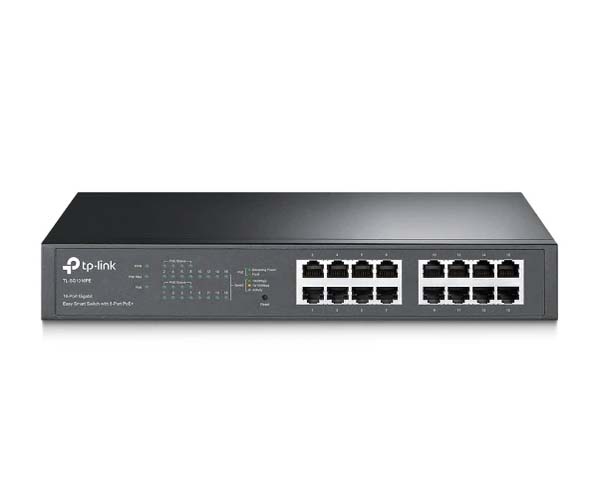

16-Port Gigabit Easy Smart PoE Ethernet Switch with 8-Port PoE+

by TP-Link
$139.99
SKU: TL-SG1016PE
Various lead times may apply to this product. Please contact us for more details.

FCC Logo   ROHS Logo PoE+ Capable

Description

16-Port Gigabit Easy Smart PoE  Ethernet Switch with 8-Port PoE+

The TL-SG1016PE is a 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

Switch Network Overview

How This Product Works

8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Overload Arrangement

TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 110W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function

*Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 5 are using 30w (maximum power per port is 30W), the system power is 110w in total (PoE max LED will be green if all PoE PDs power consumption is >= 110W). If there is an additional PD inserted to Port 4 with 20w then the system will cut off Port 5 to protect the system, this means Port 1, 2 ,3, will use 90w, and Port 4 will use 20w, and no power will be supplied to Port 5.

Ease of Use

TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

Features

Features

  • 16 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
  • With a total PoE power budget of 110W, up to 30W per port
  • Works with IEEE 802.3af/at compliant devices, expanding home and office networks
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration

Specifications

Specifications




HARDWARE FEATURES
Interface 16 x 10/100/1000 Mbps RJ45 Ports, Auto-Negotiation/Auto MDI/MDIX
Fan Quantity 1
PoE Ports (RJ45)

Standard: 802.3 af/at compliant

PoE Ports: Port 1 - 8

PoE Power Budget : 150 W

Dimensions (W x D x H) 11.6 x 7.1 x 1.7 (294 x 180 x 44 mm)
Mounting Rack Mountable/ Desktop
Max Power Consumption

8.8W (220V/50Hz with no PD connected)

172.26W (220 V/50Hz with 150 W PD connected)

Max Heat Dissipation

30.01 BTU/h (220 V/50hz with no PD connected)

587.41 BTU/h (220 V/50Hz with 150 W PD connected)

PERFORMANCE
Switching Capacity  32 Gbps
Packet Forwarding Rate  23.8 Mpps
MAC Address Table 8 K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame  10 KB
GENERAL
Certification FCC, CE, RoHS
Package Contents

TL-SG1016PE

Power Cord

Installation Guide

Resource CD

Rackmount Kit

Rubber Feet

System Requirements Microsoft® Windows® for Easy Smart Utility
Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Additional Information

Ethernet Switch Accessories

An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:

What's In The Box?

What's In The Box?

  • Qty 1 - TL-SG1016PE
  • Qty 1 - Power Cord
  • Qty 1 - Installation Guide
  • Qty 1 - Rackmount Kits
  • Qty 4 - Rubber Feet
