Description

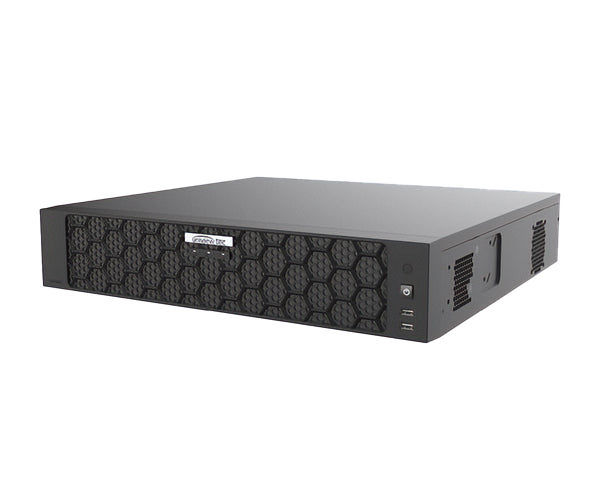

The 16CH, 16 PoE, 32MP Resolution AI H.265 NVR is a powerful, NDAA‑compliant network video recorder designed for larger commercial systems that need high channel density, advanced analytics, and long‑term storage. It supports up to 16 IP cameras with an embedded 16‑port PoE switch, records up to 32MP per channel, and delivers 4K output over dual HDMI with independent display control for flexible monitoring layouts. With onboard AI features such as face comparison, smart intrusion and ultra motion detection, AI AcuSearch, plus RAID support and Automatic Network Recovery (ANR), this NVR provides a robust, scalable core for demanding IP surveillance deployments.
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 16ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Capability
- Supports SATA HDD up to 12TB and has Embedded PoE Switch for 16 Video Channels
- Supports recording of up to 32MP Resolution Images
- Display Images up to 4K(8MP) Resolution on HDMI Output
- Concurrent Independent Displays on HDMI and VGA Monitor Outputs
- ONVIF Profile Series S Compliant
- Smart NVR Features: Smart intrusion/Ultra Motion Detection and AI AcuSearch and Image search options
- Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades
- Features Automatic Network Recovery (ANR) Technology to enhance storage reliability when network is disconnected
- Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Specifications
| Video & Audio Inputs | |
|---|---|
| IP Video Input | 16-ch |
| Audio Input | 1-ch RCA |
| Network | |
| Incoming Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Outgoing Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; NFS; RTSP; 802.1x; IPv6; IPv4 |
| Supported Browsers | Windows IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
| Video & Audio Outputs | |
| HDMI / VGA Output | HDMI: 4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Video Output | Support 2-ch HDMI, 2-ch VGA, HDMI1 and VGA1 simultaneous output, HDMI2 and VGA2 simultaneous output, HDMI1/VGA1 and HDMI2/VGA2 independent output |
| Recording Resolution | 32MP/ 16MP/ 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 960P/ 720P/ D1/ 2CIF/ CIF |
| Audio Output | 2-ch RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch in local |
| Live view display | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 4K resolution |
| Records Capacity | 3 million records for face snapshot; 2 million records for vehicle snapshot; 2 million records for SIP |
| Decoding | |
| Decoding format | H.265, H.264 |
| Live view/Playback | 32MP /16MP/ 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 960P/ 720P/ D1/ 2CIF/ CIF |
| Capability(fps) | Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30 Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30 |
| Channel | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Hard Disk Drives | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 12TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Disk Array Type | RAID 0,1,5 |
| Smart Features | |
| VCA Detection by Camera | Face Detection; Face Comparison; Vehicle Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection(UMD); Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting(People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring |
| Smart by NVR | Face detection; Face Comparison; Smart Intrusion Prevention (SIP); Ultra Motion Detection(UMD); AI AcuSearch(Human Body/Motor Vehicle) |
| VCA Search | Face Snapshot Search; Face Comparison Search; Motor Vehicle Search; Non-Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map; SmartSearch+; AI AcuSearch |
| Smart by IPC | All channels (up to 16 images/s in total) Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Face Picture Library | Up to 128 face libraries, with up to 40,000 face pictures in total |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| AI Face Comparison by NVR | 16-ch with face detecting cameras; 4-ch with normal cameras |
| AI Search by Image | Support |
| AI Smart Intrusion Prevention (SIP) by NVR | 8-ch |
| AI Ultra Motion Detection (UMD) by NVR | 16-ch |
| System Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording / Snapshot Abnormal, Array Damaged, Array Degraded |
| External Interface | |
| Network Interface | 2 x RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| POE Interface | 16 x RJ45 10M/100M self-adaptive Ethernet Interface; Max 30W for single port, Max 150W in total |
| Network Working Mode | Multi-access, load balance, network fault-tolerance |
| USB Interface | Front panel: 2 x USB2.0; Rear panel: 2 x USB3.0 |
| RS485 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| eSATA | 1 |
| Power Output | 12V |
| General | |
| Power Supply | AC 100~240V, Power Consumption ≤ 50W (without HDD) |
| Working Environment | Temperature -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Rack Ears | Not Included |
| Dimensions (W × D × H) | 442mm × 432mm × 86mm (17.4" × 17.0" × 3.4") |
| Weight ( without HDD ) | ≤ 5.5Kg (12.1lb) |
| Certifications | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
Additional Information
- LB3L, NVR Lockboxes – View Product
- NSW162GPX, Cloud Managed, 16-Port PoE Network Switch – View Product
What's in the Box
What's in the Box
- Qty 1 – 16‑Channel PoE AI Network Video Recorder (Model NR164IXPQ)
- Qty 1 – Power cord
- Qty 1 – Quick installation / setup materials
